Power Cable Stripper

Power Cable Stripper photo-1
US$ 945 - 945 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
ALLANCE
Model Number:
ALCWP -KOB
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Guangzhou Yiwu Urumchi Erenhot etc
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name ALLANCE
Model Number ALCWP -KOB
Usage Stripping

power cable stripper



power cable stripper



Product Description



power cable stripper Introduction

power cable stripper is one of popular copper recycling machines, used to strip the plastic wrappings and metal cores of

wires apart. For the wire diameter and wire material is different, there are different wire stripping models. You can choose

according to your need. The wire stripper is ideal for stripping copper wires, high-voltage cables, sheet cable wires and cable

wires ranging from 1.5mm to 90mm in diameter.



power cable stripper Features

  • Simple structure, easy operation
  • Cover little floor space
  • Labor-saving, high efficiency



power cable stripper Attentions

  • Snip off the cable joints when feed materials to protect the blade
  • Maintain the machine at regular time
  • Don't make the stripping machine overload, or it will influence the parts' service life



power cable stripper Basic Parts

1. Entry capstan: it can deliver wires and strip out the wire heads

2. Wire wheel: it is used to deliver wires and strip out the wire ends

3. Entry capstan gap adjusting knob: it can adjust the entry capstan gap according to the wire size

4. Entry capstan pressure adjusting knob: it can adjust the entry capstan pressure according to the wire skin strength

5. Entry capstan uplift knob: when the wire stripping machine begins to thread wires, turn the knob to uplift the entry capstan, so the wires can go through; when the machine runs, turn the knob to put down the entry capstan and press the wires

6. Wire wheel gap adjusting knob: it can adjust the wire wheel gap according to the wire size

7. Wire wheel pressure adjusting knob: it can adjust the wire wheel pressure according to the wire skin strength

8. Wire wheel uplift knob: turn the knob to uplift the wire wheel before taking out the wires; when the wire stripping machine works, turn the knob to put down the wire wheel

9. Tool head assembly: it is used to cut off the wires, strip wire heads and ends. The up blade and under blade should open to

 the largest state under the machine halt state, so the wires can pass through tool smoothly

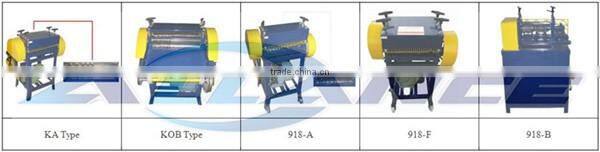

power cable stripper Technical Parameters



Model No.

918-A

918-F

KA

KOB

918-B

Dia. of Wire Processed

1-25mm

1-30mm

1-35mm

1-42mm

2-90mm

Cutting Speed

30m/minute

30m/minute

30m/minute

30m/minute

N/A

Voltage

220v/380v

220v/380v

220v/380v

220v/380v

220v/380v

Power

1.5kw

1.5kw

2.2kw

2.2kw

3kw/4kw

Dimensions (cm)

55*51*84

56*55*84

60*58*84

70*61*84

80*58*120

Weight

60kg

70kg

80kg

110kg

200kg

Productivity (kg/10H)

100-300

150-300

400-1000

600-1500

800-2000





Packaging & Shipping

power cable stripper Packing below:

power cable stripper





Our Services

power cable stripper matched with Motor, blade, factory offer CE.

power cable stripperpower cable stripper
