Liquid filling machine/juice filling & capping machine/vinegar filling machine

 Introduce:

1. The machine uses PLC programmable control, together with the LCD touch screen man-machine interface system, and using constant pressure fixed flow channel parameters, control the filling time to achieve different measurement of filling.

2. The device structure is simple, it is commen for big or small size bottles, no need replacement parts while you change the bottle shape, just need adjust it.

3. Widely used in liquid filling such as fruit juice, soy sauce, vinegar, mineral water, pesticides, chemicals, detergents, oral liquid, disinfectant, lubricants and cosmetics and so on. Filling measurement accuracy, no bubbles, no drip. It can be applied to fill 40-1000ml all kinds of bottle shapes (including irregular bottle).

Machine Features:

Advanced technology

1, This machine is suitable for filling different specifications container, it will be in a few minutes to switch filling specifications.

2, filling cycle is short, high production capacity.

3, replace the filling specifications without adding equipment, just make adjustments can be completed.

4, touch-type operation of color screen, can display the production status, operating procedures, filling methods.

5, each filling head with a card bottle device, to ensure that the injection of accurate positioning.

Unique filling method

1, use the straight line into the bottle and out the bottle, make the filling function extension, so that all kinds of containers can be in effective filling.

2, use international advanced gas filling valve, to ensure that the filling process without dripping, no birth.

3, a strong PLC software support, can achieve the ideal filling operations.

4, man-machine friendly interface, so the operation are done on the touch-type color screen.

Precise metering control

1, use fixed flow channel parameters, control the filling time to achieve different measurement of filling.

2, the precise timeof pneumatic valve filling can be set to 0.01, can make the measurement accuracy control in the ± 1% error range, reduce unnecessary material loss, improve user economic benefits.

3, the measurement of each filling head can be individually adjusted to achieve the same metering filling.

4, the machine set the bottle count program,  it will not filling when no bottle or the count not in place,

5, when set the filling amount, you can initial adjust to the filling volume required, and then fine-tuning, you can get the ideal filling measurement accuracy.

Main parameters,

Name: In-line filling machine(with diving apparatus)

Filling range: 40-1000ml

Filling accuracy: ±1%

Capacity: 0-3000b/h

Air pressure/gas consumption : 0.5-0.7mpa/: 200L/t

Power: 380V/220v  50Hz/0.8KW

Weight: 400kg

Dimension : L*W*H 6000×850×2600mm

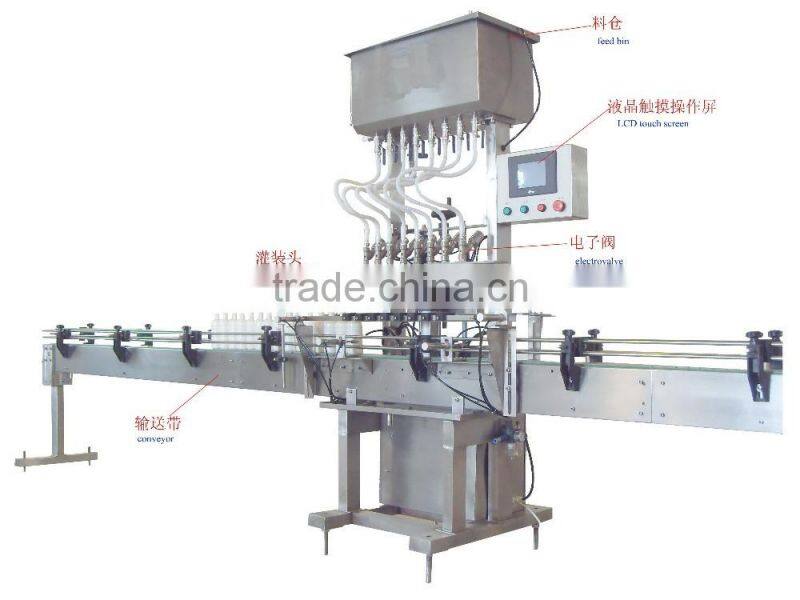

Machine show:
