pellet mill for feed
Contact: Ms Zhao
Skype: AL.ZHAO.88
Whatsapp/Wechat: 0086 18790279329
Email: sales10(at)
pellet mill for feed Introduction
Floating fish feed machine regard as advanced single screw extruder by belt drive has won lots of popularity and is widely accepted. The extrusion of feedstocks serve the purpose of sterilization and ripening under high temperature and high pressure. It generally includes dry type and wet type. Pellets produced by this machine are solid, water resistant and damp resistant.
pellet mill for feed Characteristics
1.Equipped with impeller feeder, advanced frequency convertor and magnetic device for uniform feeding and reliable operating.
2.The Reasonable combination of practical spindle bearing ensures reliable and safe operation.

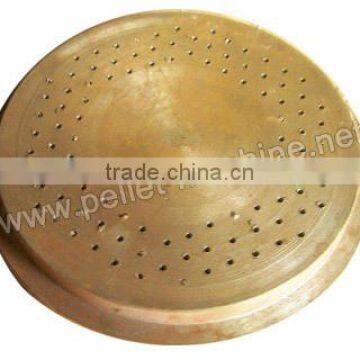

3.Adjustable pellets lengths are made through changing various dies.
4.The finished pellets can keep floating for 3-15 hours without pollution to water.
5.Dry type and wet type fish feed machine for your choice.The wet type machine needs a boiler to make steam which can conduct steam to the conditioner and ripen the raw material in advance. The output is higher than the dry type machine in the case of the same power. So wet type machine is more suitable for large scale production.
pellet mill for feed Working Principle
Extrusion can be defined as a technological process namely, forcing feed raw material in one or more of the following process conditions (such as mixing, heating, cutting, etc.) flow through the die, make material forming or eruption gasification. Making feedstocks from loose state into a continuous shaped dough, the resulting paste is extruded through holes in a metal plate. The diameter of the holes sets the diameter of the pellets, which can range from various different sizes.
pellet mill for feed Specifications
| Model | Capacity | Main Power | Diameter | Cut Power | Diesel Generator Requirement |
| ALC-YS60 | 0.12-0.15t/h | 15kw | φ60 mm | 0.4kw | 40kw |
| ALC-YS70 | 0.18-0.25t/h | 18.5kw | φ70 mm | 0.75kw | 50kw |
| ALC-YS80 | 0.3-0.35t/h | 22/27kw | φ80 mm | 1.5kw | 75kw |
| ALC-YS90 | 0.4-0.45t/h | 30/37kw | φ90 mm | 1.5kw | 120kw |
| ALC-YS120 | 0.5-0.7t/h | 55kw | φ120 mm | 2.2kw | 150kw |
| ALC-YS135 | 0.8-1.0t/h | 75kw | φ133 mm | 2.2kw | 200kw |
| ALC-YS160 | 1.2-1.5t/h | 90kw | φ155 mm | 2.2kw | 250kw |
| ALC-YS200 | 1.8-2.0t/h | 132kw | φ195 mm | 3.0kw | 250kw |

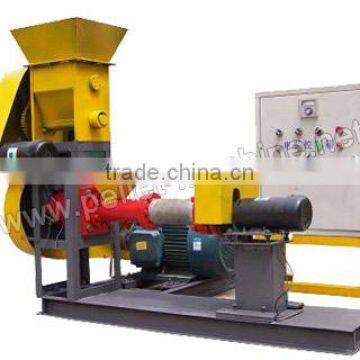

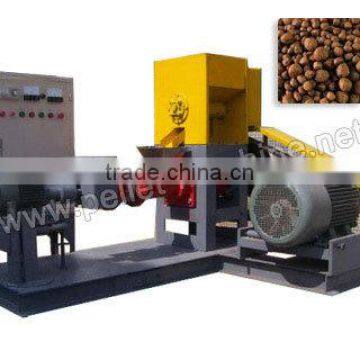

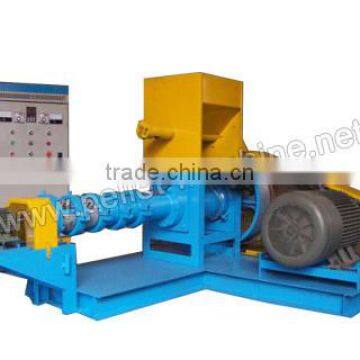

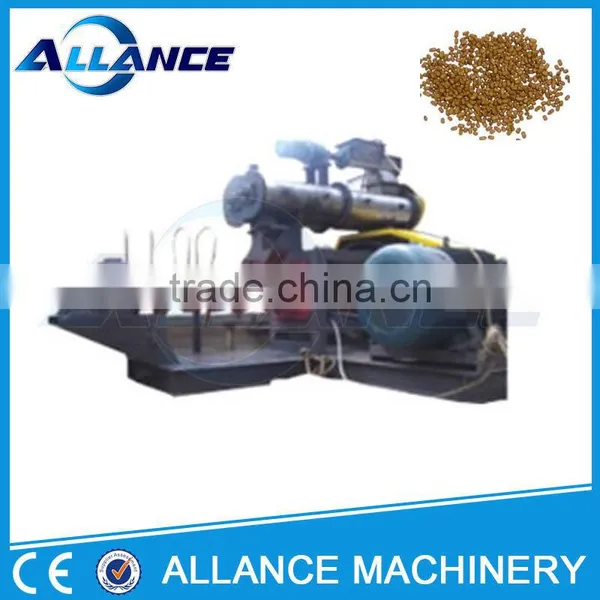

Machine images:
ALC-YS60
ALC-YS70
ALC-YS80
ALC-YS90
ALC-YS120
ALC-YS135
ALC-YS200
Contact: Ms Zhao
Skype: AL.ZHAO.88
Tel/Whatsapp: 0086 18790279329
Email: sales10(at)allance(dot)cn
