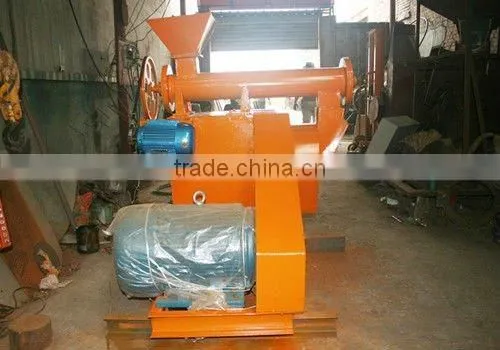

Home use small wood pellet mill machine
Introduction of Home use small wood pellet mill machine
This pellet machine is a newly developed cheap energy granulated product designed upon the demand of the market. The product equipment removes the defect of difficulty in granulating biomass crude fibers and poor effect. The main drive adopts a high efficient belt drive to achieve refueling without stopping;
The circular mould adopts a quick detachable anchor ear type, which enables it easy to load and unload; Frequency control of motor speed is adopted to ensure uniform feeding; It is manufactured by an advanced international manufacturing process.
Besides, highquality moulds are customized in accordance with the characteristics of clients' materials to prolong the lifeextension of the equipment, improve quality and reduce cost per ton. The molded pellet fuel is bright and clean in appearance, and has few cracks, high density and uniform length.
Specification of Home use small wood pellet mill machine

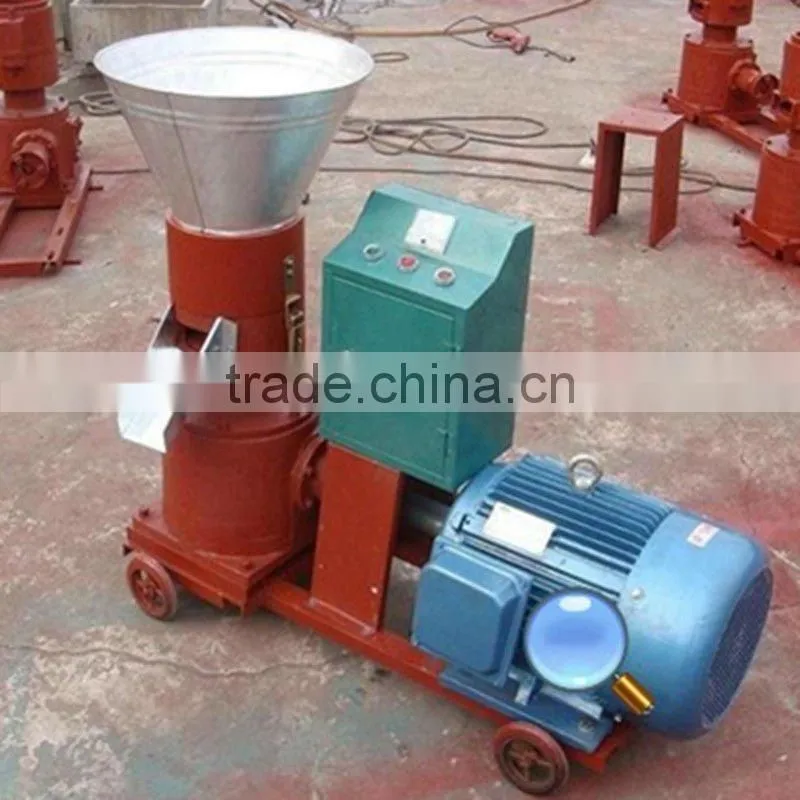

Flat-die pellet mills
Model |
Capacity |
Power |
Weight |
Dimension |
9PK-150 |
90-120KG/H |

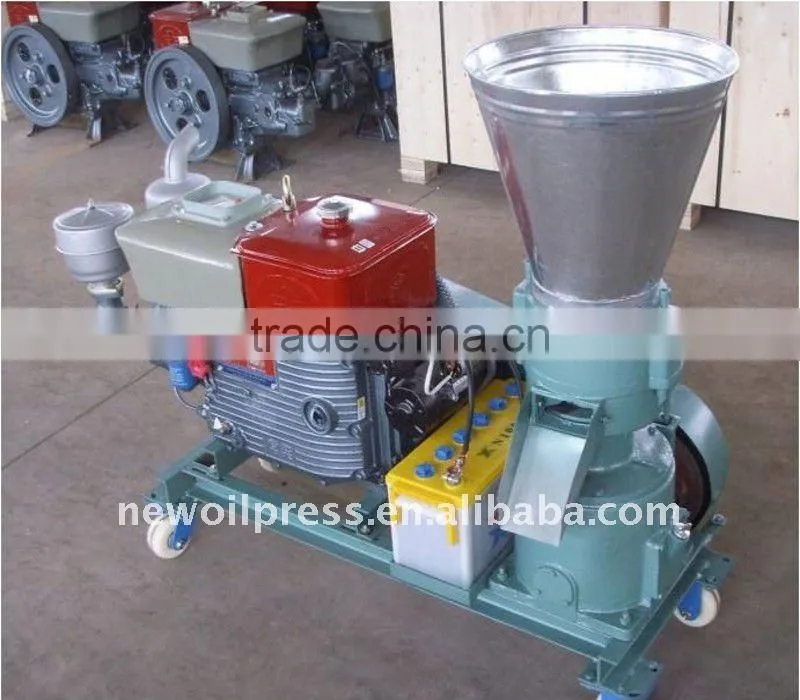

5.5kw-4 poles or 8 HP diesel engines |
70kgs |
1050*420*800 |
9PK-200 |
180-200KG/H |
7.5kw-4 poles or 15 HP diesel engines |
105kgs |
1050*420*800 |
9PK-250 |
250-300KG/H |
15kw-4poles or 18 HP diesel engines |
155kgs |
1050*600*1100 |

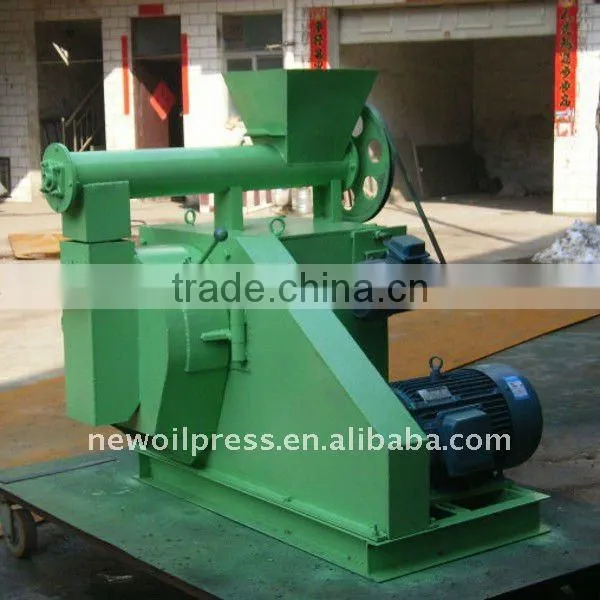

Ring-die pellet mills
Model |
Capacity |
Power |
Weight |
Dimension |
9PK-160R |
300KG/H |
11kw/380V or 18HP |
400kgs |
1250*700*1150 |
9PK-210R |
500KG/H |
22kw/380V or 18HP |
600kgs |
1350*1100*1400 |
9PK-260R |
800KG/H |
30kw/380V or 18HP |
700kgs |
1350*1100*1400 |
For using thispelleting press, we got some feedback from our customers. They obtained some experience when they were using this machine to produce wood pellet. Hope it is helpful for you:
1) Best moisture is 15% for all materials
2) The temperature is constant about 90~95'C, you have to take over the pellet just coming out from this pellet press and cooling it before touching it by hand.
Furthermore, we improved our flat dies pelleting press more suitable to produce wood pellet after absorbing & digesting the feedback from our customers. In general, they're:
1) Special raw material on the main parts such as roller, template, matrix
Prolonging the life than other similar products in China when process wood pellet after this modification.
2) Modify the whole in the matrix to improve performance of the machines. It's more easy to making pellet.
If need know more about us or our machines, please feel free to contact with us!
We also supply peanut sheller ,roaster ,oil press machine etc. agriculture machines

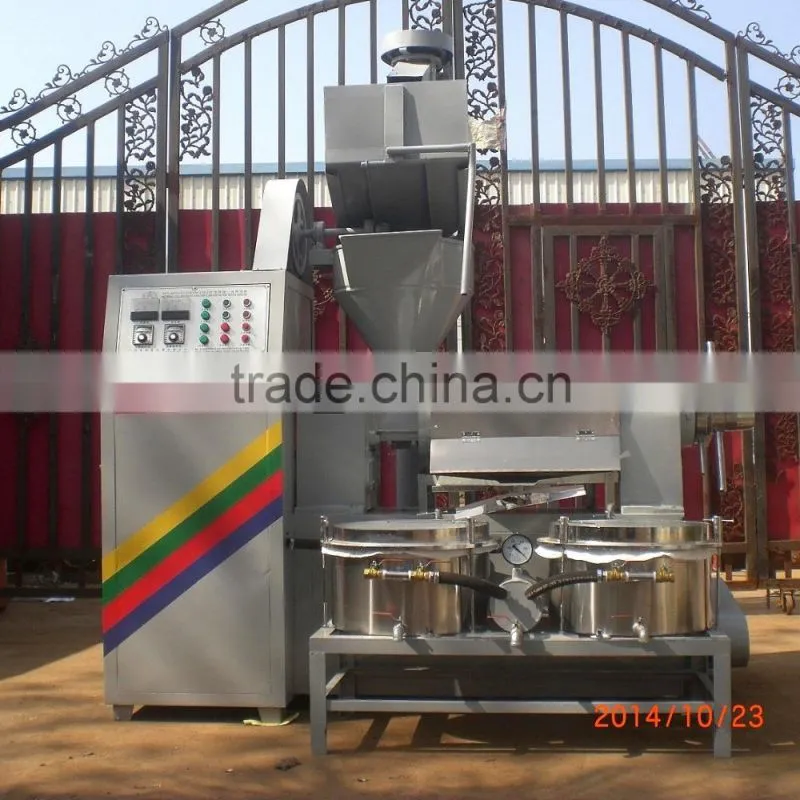

Screw oil presser

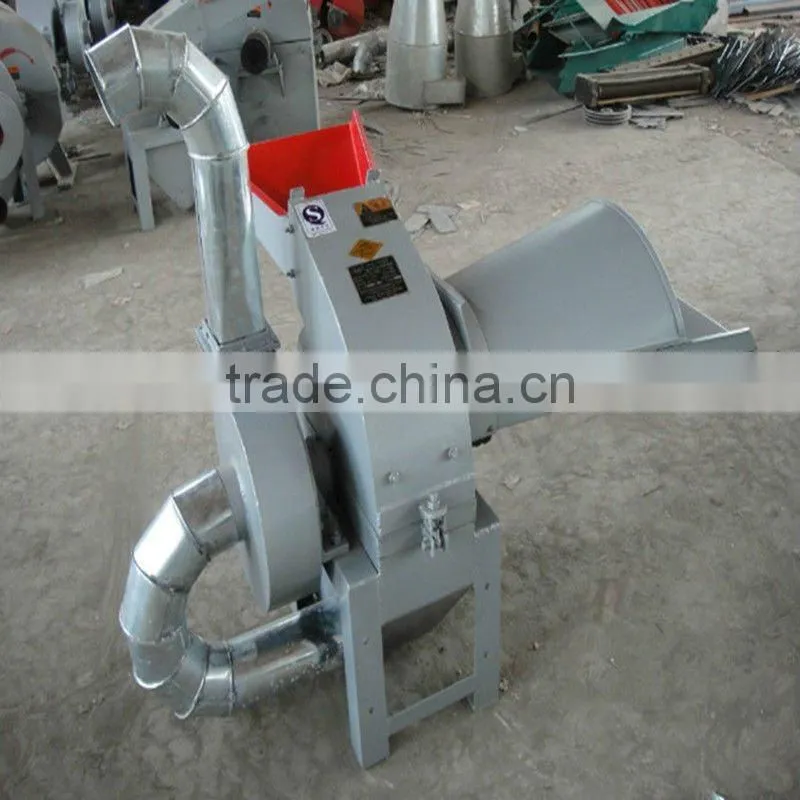

Hammer grinder ( animal feed )

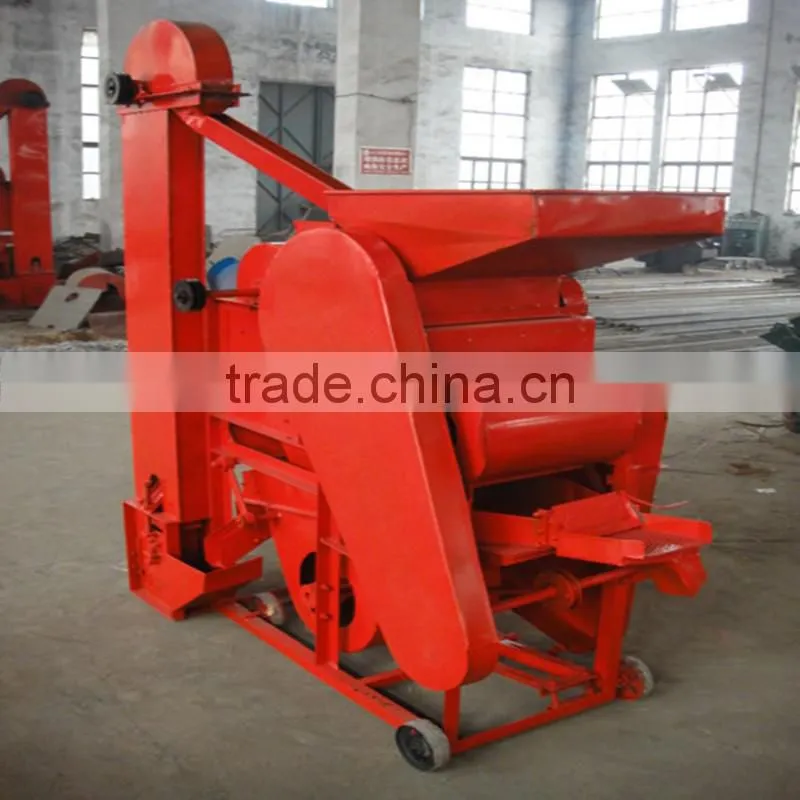

Peanut Sheller
MOQ : 1 Set
Payment: By TT

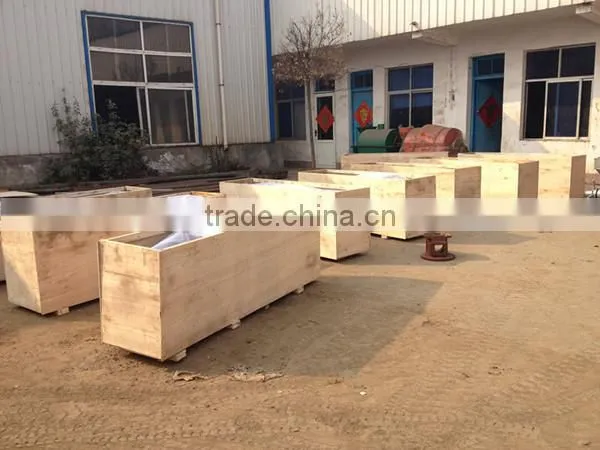

Delivery time: For sample machines, we have stock available. If quantity is over 5 sets, 10~15 days after order confirmation.
After service:
1) Free replacement of wearing parts in 6 months from date of purchasing
2) We provide spare parts all year around at factory cost
3) We provide technical solutions for clients at any time.

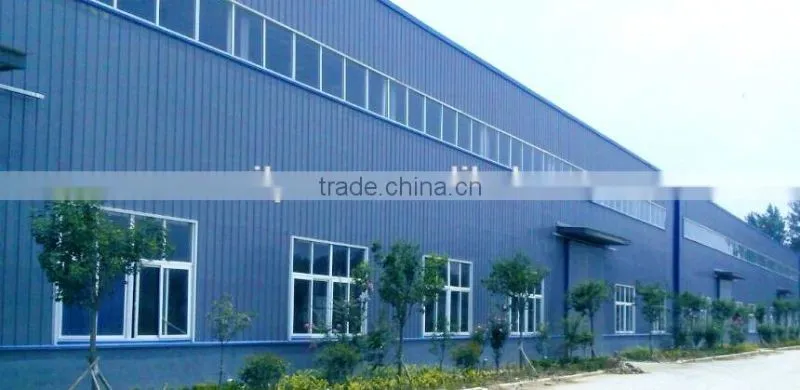

Henan New Elephants Machinery Co., Ltd
Manufacturer & Factory of Oil Press
Established in 1970s, specializing in production of vegetable oil processing machines, pellet mill ,grinders etc. agriculture machines with more than 40 years' production experience . All of our machines have passed SGS , ISO9001 certificate .
With advanced technology and rich experience , our products have been well sold both at home and abroad and enjoy a high reputation from our clients .
1:how do I pay for my purchase?
T/T,L/C at sight.
2:What’s the delivery time?
15 work days
3:Can I have my own customised product?
Yes, Your customised requirement for color.
4:How to contact us?
You can contact us by telephone and e-mail.
Any queations about our machinees ,welcome to contact us ,have a good life
