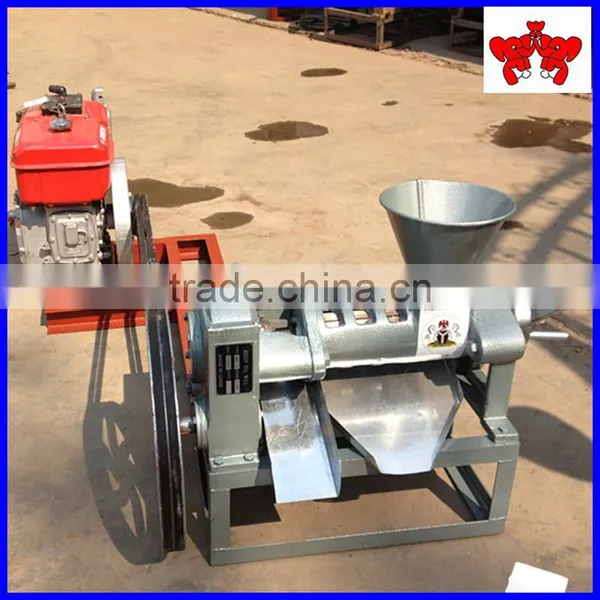

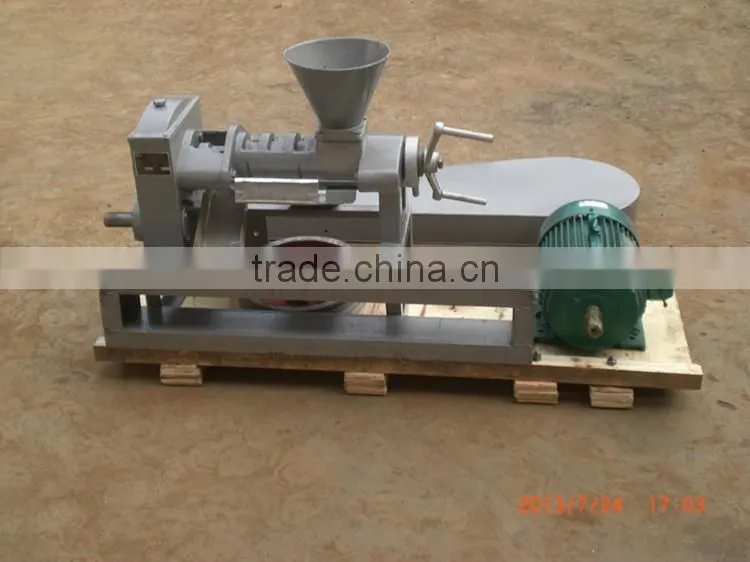

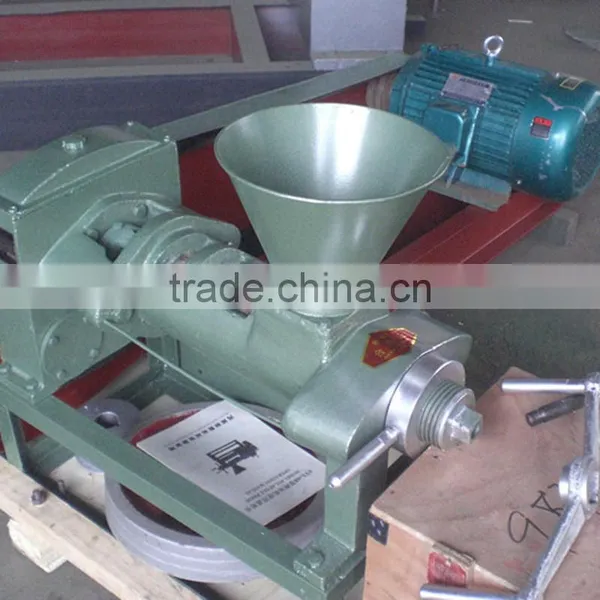

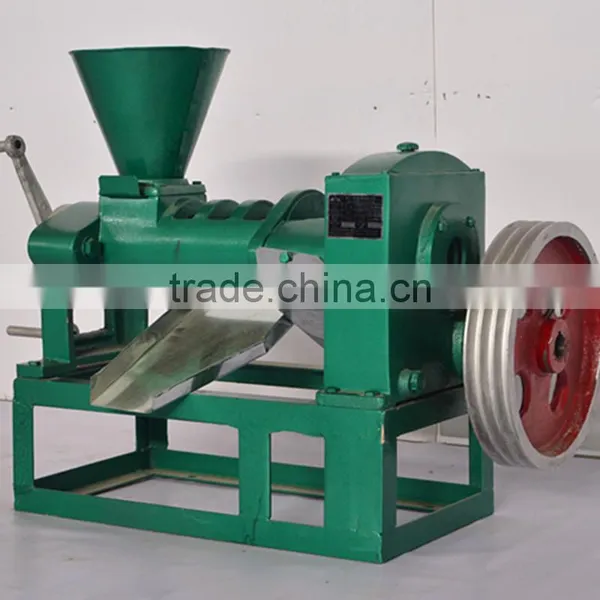

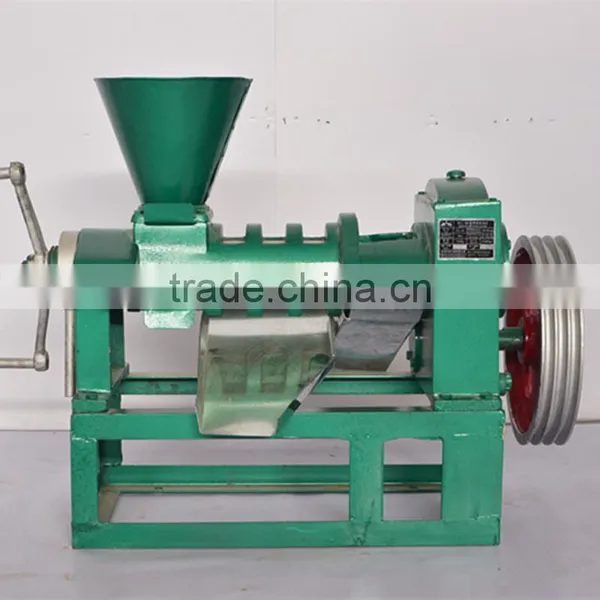

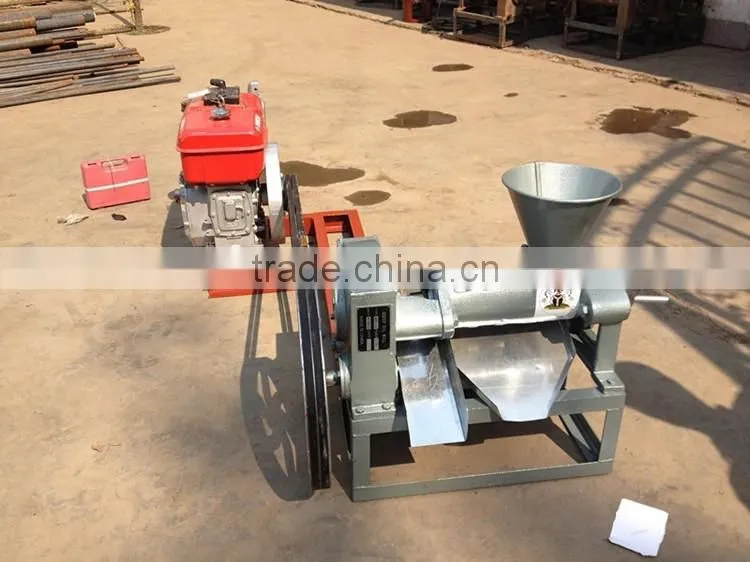

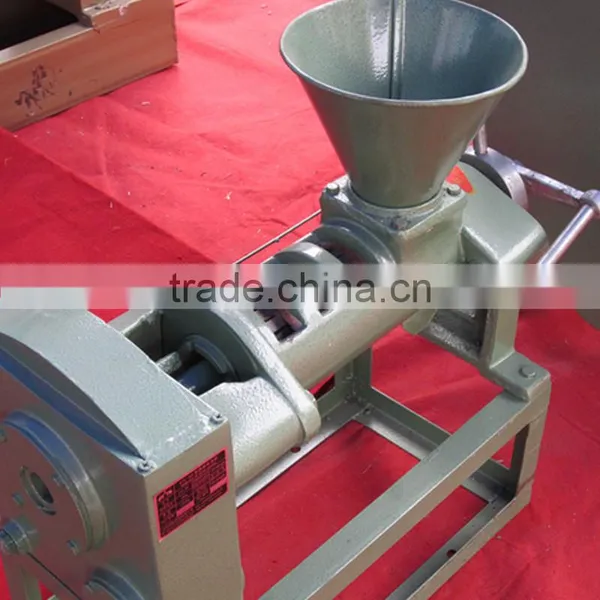

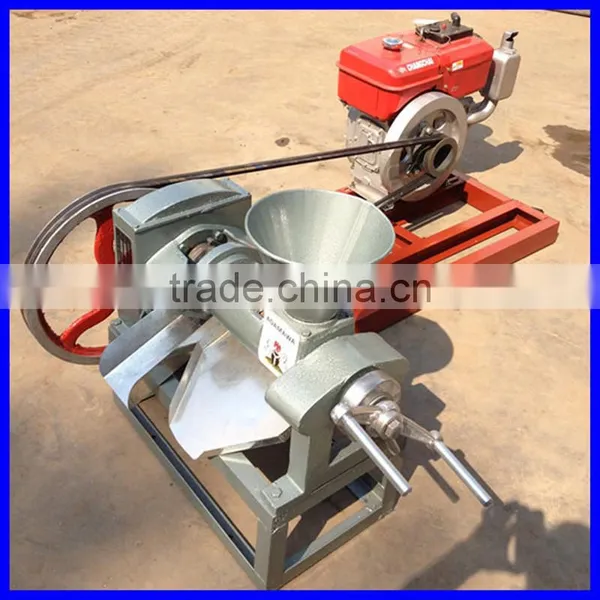

Lower Price Oil Press Machine
Model: 6YL-68
Capacity: 30-50kgs/hour
Power: 5.5 kw/380v/50hz
Cake residue: <7%
Machine Size: 940*570* 1170mm
Filter: 550*550*550MM
Packing for shipping: one package
Lower Price Oil Press Machine Working principle:
The power is transmitted to pressing screw shaft. Via reduction (sheave and gears). During its rotating, the screw shaft push the raw material moving towards and break it, meanwhile, the space between chamber and screw is getting smaller and hence pressure is increased.
Lower Price Oil Press Machine Performance index ( Hot extraction):
Raw material |
Capacity(kg/h) |
Output rate (%) |
Output efficiency |
Cottonseeds |
50-60 |
12-14 |
65-72 |
soybeans |
28-37 |
10-16 |
61-65 |
peanuts |
45-60 |
35-45 |
91-92 |
Rapeseeds |
45-60 |
30-38 |
82-85 |
sesame |
45-60 |
42-47 |
91-92 |
Lower Price Oil Press Machine Specification:
Shaft speed |
35-39(r/min) |
Power |
5.5KW |
Output |
1-1.5T/24H |
Net. Weight |
130kg |
Gross. Weight |
150kg |
Dimension |
920x390x750mm |
Lower Price Oil Press Machine
Lower Price Oil Press Machine
1:One year guarantee for whole machine except of wearing parts.
2:24 hours technical support by email
3:Calling or door -to-door service
4 :Use-friendly English software, user manual and detailed Videos/CD
Lower Price Oil Press Machine
Established in 1970s, Henan New Elephants Machinery Co., Ltd. is a professional manufacturer thatproduces various types of oil presses, oil refining plant and other agricultural machinery. We provide various choices for different size of oil processing workshop.
We have complete set of fully automatic oil pressing equipment with capacity of 5,10,15,20 tons. With advantages of energysaving and convenient setup, our main products, such as 6YL series are statepatented products and reach the international technical level.
We guarantee higher quality and better service; sincerely hope we could be your sincere long-term partner!
Lower Price Oil Press Machine
1.What kind of material can be used to process? More than 20 types of seeds such as peanuts, rapeseeds, sesame, copra, cottonseeds, hazelnut, linseed, oil palm kernel, pumpkin seed, sun flower seeds, walnuts can be processed by our screw oil press. More types are to be developed.
2. What is the requirement of material and moisture content? The oil content should above 20%,moisture content is around 11%.
3. Is the oil edible directly?
No, oil filtration process is needed
4. Does the seeds need pre-processing such as roasting or drying? First pressing, is extracted with using roasting or drying (a hot press),
Second pressing, is extract without using roasting or drying( a cold press).
5. Does the screw oil press need to be heated? Yes, it does. Preheat with dry oil cake for 30 minutes before feeding seeds normally.
6. How many people are required to operate this screw oil press?
One ~ two people can operate.
