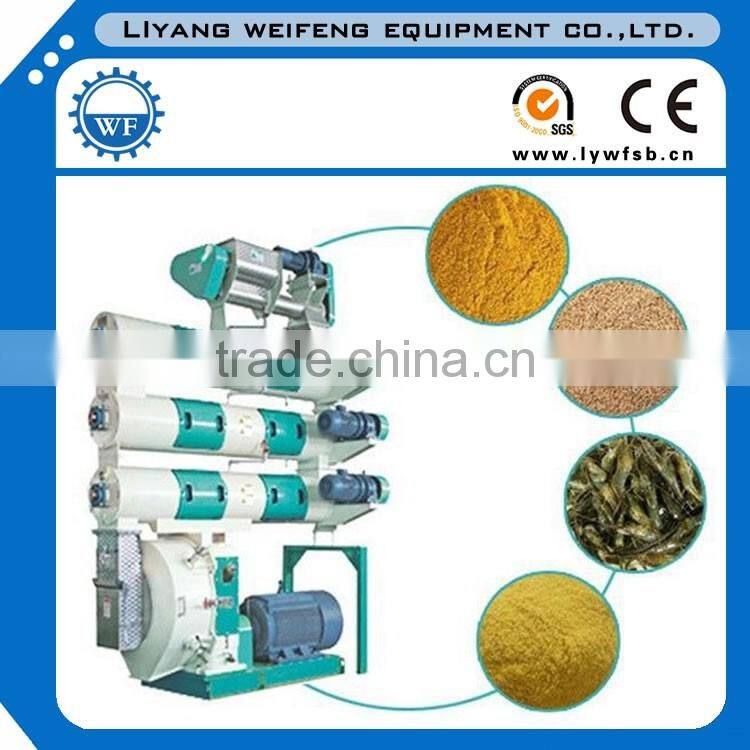

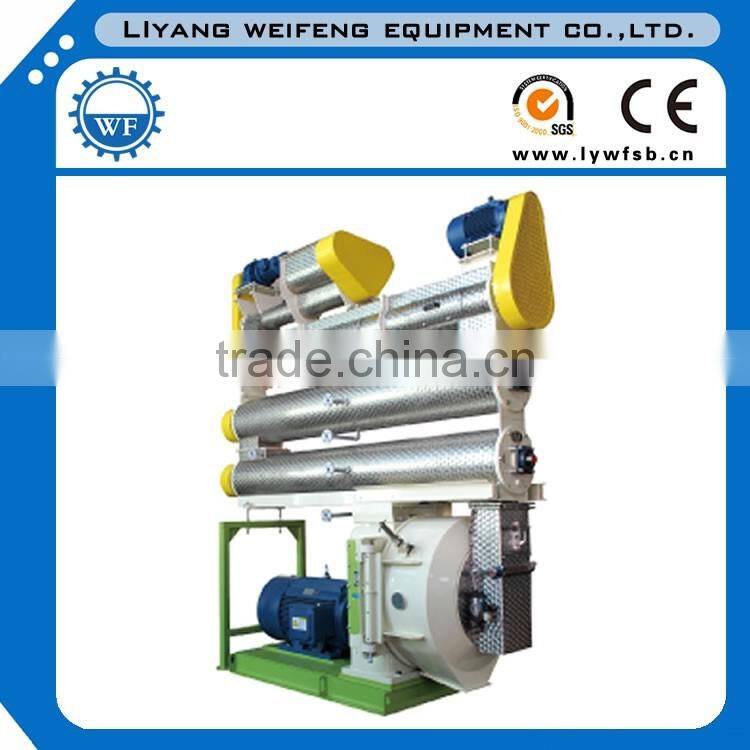

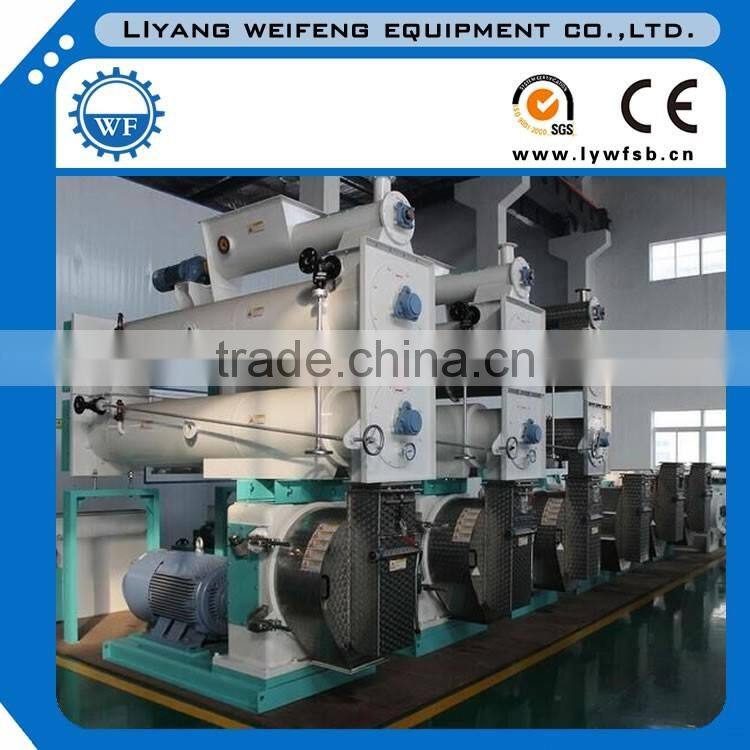

Fish Feed pellet mill:
1)Ring die fish feed pellet mill
2)Fish feed pellet mill with two layer conditioner
3)Can add steam to increase the capacity and the pellet quality
4)Automatic oiled to machine for running good
5)Ring die pellet mill is far superior to flat die technology
6)Gear drive is much better than belt drive,
7)Includes one ring die and a set of rolls
8)A large selection of stainless steel or alloy steel dies for this machine that can be purchased separately
1 Driven with heavy- duty gearbox construction can produce continuously in most adverse condition.
2 The imported key elements are of high performance with long life and low maintenance cost.
3 The key parts are made of alloy steel to be very strong and malleable. Die is made of stainless steel.
4 Pellet machine is widely used in the best quality fish feedf making.
Technical parameters
No | Name | Model | |||||
SZLH25 | SZLH32 | SZLH35 | SZLH40 | SZLH42 | SZLH508 | ||
1 | Capacity (T/H) | 0.5-1.5 | 2-5 | 3-8 | 5-10 | 6-12 | 8-20 |
2 | Power (KW) | 15 | 37 | 55 | 75/90 | 90/110 | 132/160 |
3 | Screw feeder Power (KW) | 0.55 | 0.55 | 0.55 | 0.75 | 1.5 | 1.5 |
4 | Conditioner Power(kw) | 2.2 | 2.2 | 2.2 | 2.2 | 5.5 | 5.5/7.5 |
5 | Pellet Size (mm) | 2-12 | 2-12 | 2-12 | 2-12 | 2-12 | 2-12 |
6 | Dimension (mm) | 1668*640*1465 | 2006*800*1801 | 2165*895*1940 | 2302*970*2105 | 3150*1100*2543 | 3200*1300*2795 |
7 | Weight(t) | 1.5 | 2.1 | 2.5 | 2.8 | 3.1 | 3.5 |
