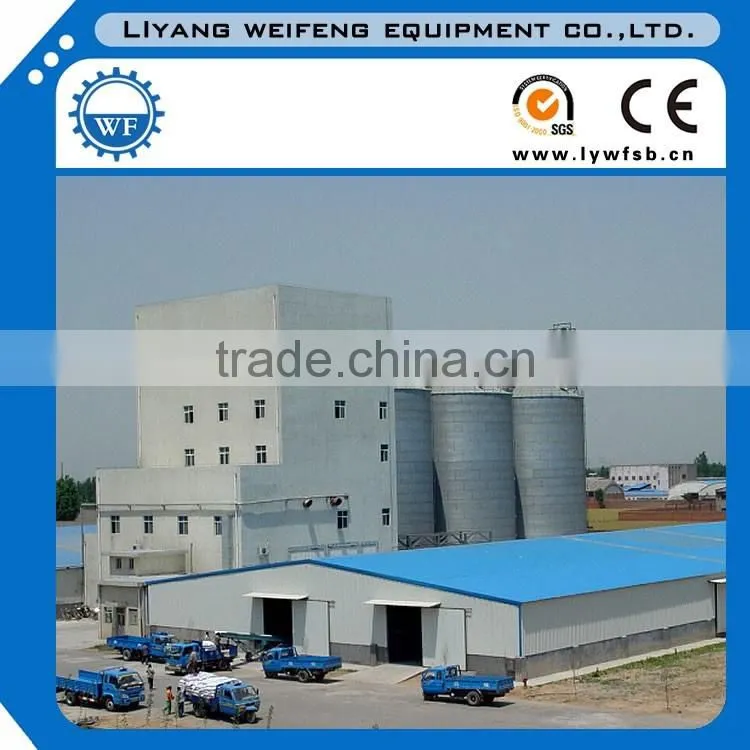

ruminate animal feed production line

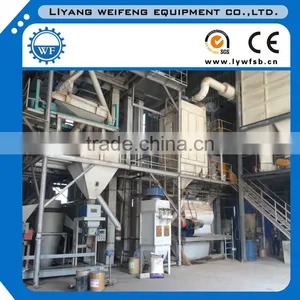

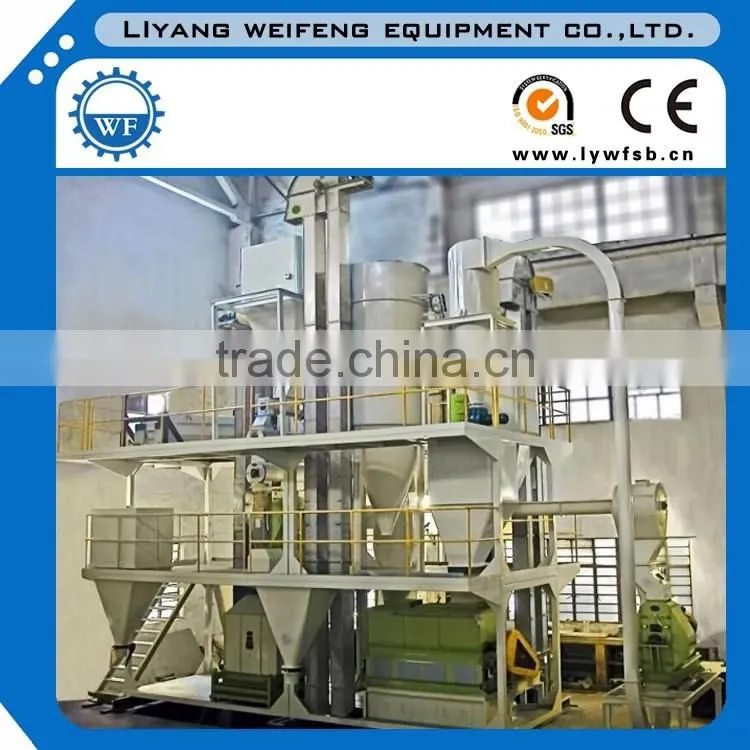

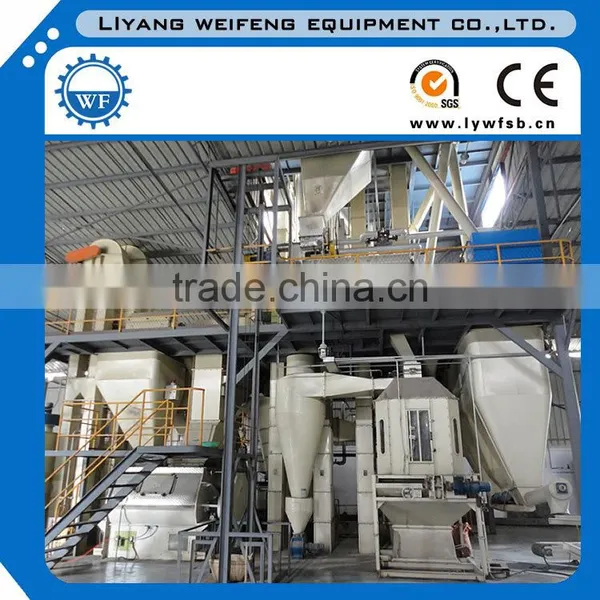

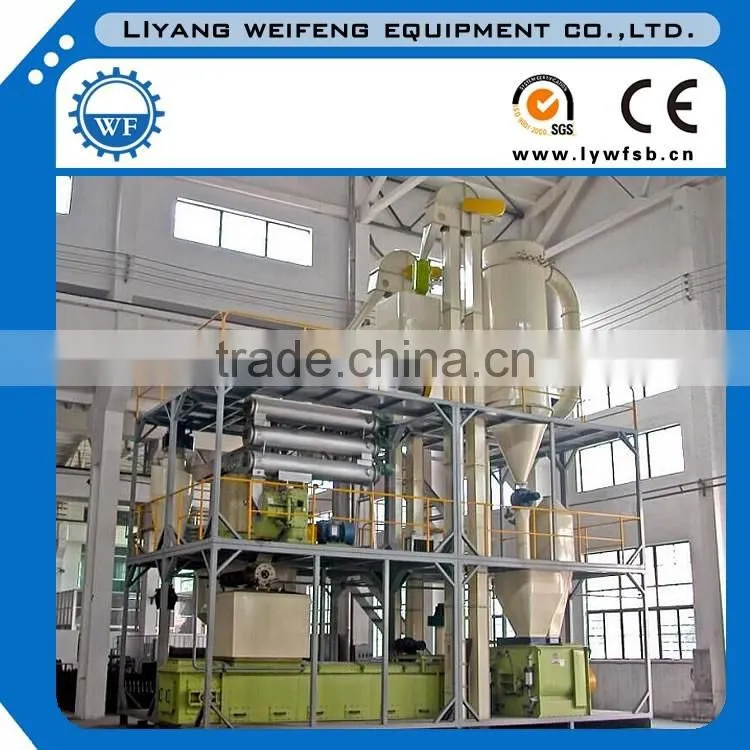

Detailed processes of feed pellet mill line, poultry feed production line
1. Raw materials receiving Process:
Raw materials can be corn, rice bran, soybean, grain, wheat, soybean meal / cake and etc. Precleaner can remove the impurities in raw materials.
2. Grinding Process:
The feed grinder can grind the raw material ingredients to the required size. There are various hammer mills which can satisfy different requirements.
3. Mixing Process:
Mixing is considered to be one of the essential operations in feed pellet processing. Lack of proper mixing may lead to reduced diet uniformity, affecting the feed pellet quality.
4. Pelletizing Process:
Feed pellet mill is the core equipment of the whole production line. According to different raw material, material formula and working condition, we can offer you different pellet mills.
5. Cooling Process:
The feed pellets pressed out by the feed pellet mill are hot and moist. They can't be crushed, screened or packed immediately. Counter-flow feed pellet cooler is designed to cool or dry the feed pellets. It can decrease the temperature and moisture of the feed pellets, preparing for the following processes.
6. Crushing Process:
Different poultry, livestock or aquatic feed pellets are with different sizes. Some big ones should be crushed into small ones. Roll type feed pellet crumbler is just the equipment for feed pellet crushing. Double-roll feed pellet crumbler is suitable for crushing poultry feed, such as chicken feed, duck feed and goose feed etc. Three-roll feed pellet crumbler is suitable to crush aquatic feed including fish feed and shrimp feed etc.
7. Screening, Grading and Packing Process:
The rotary grading sieve can be used to screen and grade the feed pellets. After processing, you can get the qualified feed pellets without fine powder.
Packing Process
The feed pellets should be packed for transporting, storing or selling.
8. Automatic PLC Control System(Customized):
With the automatic PLC control system, the production line is with high efficiency and convenient operation
Technical parameters:
No |
Name |
Model |
|||||
SZLH25 |
SZLH32 |
SZLH35 |
SZLH40 |
SZLH42 |
SZLH508 |
||
1 |
Capacity (T/H) |
0.5-1.5 |
2-5 |
3-8 |
5-10 |
6-12 |
8-20 |
2 |
Power (KW) |
15 |
37 |
55 |
75/90 |
90/110 |
132/160 |
3 |
Screw feeder Power (KW) |
0.55 |
0.55 |
0.55 |
0.75 |
1.5 |
1.5 |
4 |
Conditioner Power(kw) |
2.2 |
2.2 |
2.2 |
2.2 |
5.5 |
5.5/7.5 |
5 |
Pellet Size (mm) |
2-12 |
2-12 |
2-12 |
2-12 |
2-12 |
2-12 |
6 |
Dimension (mm) |
1668*640*1465 |
2006*800*1801 |
2165*895*1940 |
2302*970*2105 |
3150*1100*2543 |
3200*1300*2795 |
7 |
Weight(t) |
1.5 |
2.1 |
2.5 |
2.8 |
3.1 |
3.5 |
