aquaculture equipment feed pellet mill

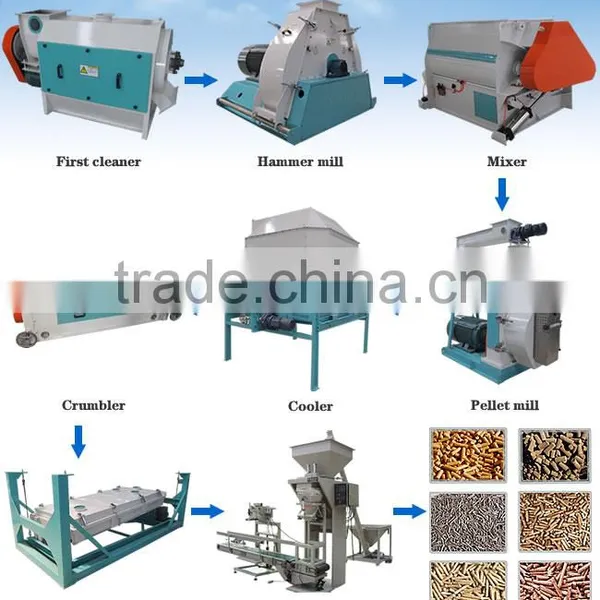

live stock feed production line,poultry feed production line, feed pellet line,feed production line,animal feed pellet production line , feed machines,feed pellet mill,animal feed production line
Introduction
Ring die feed pellet machine is used to make feed pellets from grain, such as: corn, wheat, soyabean, rice or biomass material. Our ring die pellet mill advantage is reduced roller and die wear, and reduced energy consumption. These factors have led to ring die pellet mills being adopted in most large scale pellet production lines.
Features
1.Widely applied product with mature technology.
2.The main driving adopts high-precision gear drive, so that the output is improved by about 20% when compared with that of belt drive.
3.Imported high-quality bearing and oil seal are adopted to ensure efficient, stable and low-noise whole machine operation. The granulating room is equipped with air suction temperature-reducing system.
4.The feeder adopts variable-frequency and variable-speed motor to ensure the quality of discharged particles.
5.Ring dies with multiple kinds of bore diameters are optional, and high-quality craft ring dies are adopted, so that the service life is long, the discharged particles are smooth and the quality is high.
6.International advanced compensation type snakelike spring coupling has the properties of novel and compact structure, high safety, low noise and low fault rate.
7.Plus-size conditioner and jacket type conditioner are selectable to strength the particle conditioning effect.
Technical Parameters of Main feed pellet machines
No. |
Item |
Technical parameters and performance index |
||||||
SZLH250 |
SZLH320 |
SZLH350 |
SZLH400 |
SZLH420 |
SZLH508 |
|||
1 |
Capacity (t/h) |
0.5-1 |
2-5 |
2-7 |
3-12 |
3-14 |
4-20 |
|
2 |
Power (Kw) |
Main machine |
15 |
37 |
55 |
75/90 |
90/110 |
110/132/160 |
Screw feeder |
0.55 |
0.75 |
0.75 |
1.5 |
1.5 |
1.5 |
||
Conditioner |
2.2 |
2.2 |
3 |
5.5 |
5.5 |
11 |
||
3 |
Inner diameter of die (mm) |
φ250mm |
φ320mm |
φ350mm |
φ400mm |
φ420mm |
φ508mm |
|
4 |
Effective width of die (mm) |
120mm |
120mm |
120mm |
120mm |
120mm |
150mm |
|
5 |
Rotary (rpm) |
Die |
328 |
328 |
328 |
248 |
248 |
248 |
Screw feeder |
12-120 |
12-120 |
12-120 |
12-120 |
12-120 |
12-120 |
||
Conditioner |
300 |
300 |
300 |
270 |
270 |
270 |
||
6 |
Pellet size (mm) |
φ2—φ10mm |
φ2—φ10mm |
φ2—φ10mm |
φ2—φ10mm |
φ2—φ10mm |
φ2— φ10mm |
|
animal feed
pellet machine mill, pellet feed machine, animal feed machinery, poultry feed machine, feeding machine, floating fish feed machinery, poultry pellet feed machine, cattle feed machines, shrimp feed machinery, feed machine changzhou
animal feed pellet machine mill, pellet feed machine, animal feed machinery, poultry feed machine, feeding machine, floating fish feed machinery, poultry pellet feed machine, cattle feed machines, shrimp feed machinery, feed machine changzhou
