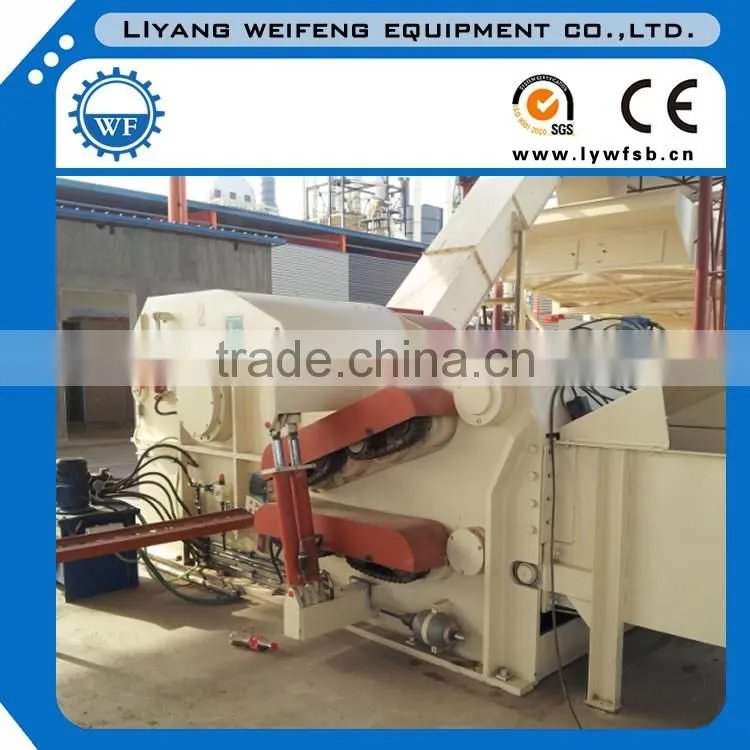

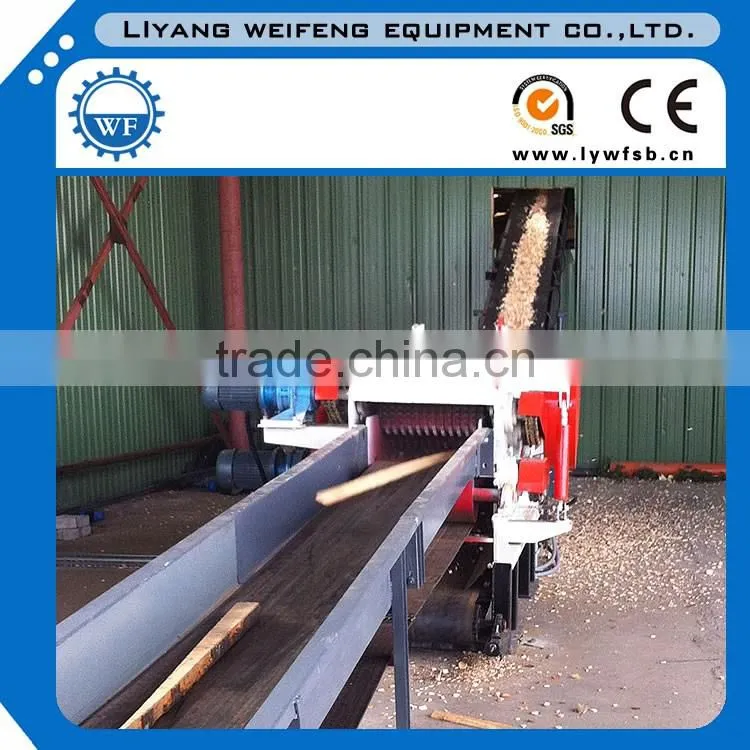

Diesel Engine Wood Chipper Shredder Wood Cutter
US$ 7,000 - 12,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Log Splitter
Use:
cut the big wood logs to small size
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai shengzheng qingdao guangzhou ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Design Wood Cutting Machine, Make Wood Log Into Wood Sawdust DirectlyUS$ 2,000 - 20,000MOQ: 1 Set -
Wood Chips Grinding Machine/wood Crusher MachineUS$ 2,000 - 20,000MOQ: 1 Set
-
Industrial Sawdust Wood Chips Rotary Drum Dryer for SaleUS$ 20,680 - 28,500MOQ: 1 Set
-
First Cleaning Process for Wood Pellet Production LineUS$ 2,000 - 10,000MOQ: 1 Set
-
Electric Motor 50HP Drum Type Wood Chipper in StockUS$ 8,800 - 18,800MOQ: 1 Set
Condition
New
Type
Log Splitter
Use
cut the big wood logs to small size
Power Type
Electric
Production Capacity
4-6 T/H
Place of Origin
Jiangsu, China
Brand Name
LYWF log splitter, Lywf
Model Number
log splitter
Dimension(L*W*H)
4000X55X1700, 3100X1750X1800mm
Weight
2.2T
Certification
CE
Warranty
1-3 years, 1 Year
After-sales Service Provided
Engineers available to service machinery overseas
diesel engine wood chipper shredder wood cutter
Description:
BX series Wood chipper is the special equipment for the production of wood chips, and widely used in particleboard mill, medium and high-density fiberboard factory, stubble plant, biomass power plant, wood chip plant and other industries. It's the first choice for the manufacture factories before material preparing process.
This product is with advanced structure, high quality cutting blade material, convenient operating maintenance. The main cutting materials are undersized log, residues for wood cutting & processing (such as branches, slab, strip, Core log, waste veneer, etc.), and it can also be used to cutting non-wood materials (such as sugarcane, reed, bamboo, etc).
The machine is consist of airframe, knife roll, the upper and under feed rollers, conveyor and hydraulic system,
etc. The body is welded with high strength steel plate, it's the supporting foundation of the whole machine.
The knife roller installs two or three, four knives, with specially made knife bolt, through the pressure block, and fixed knife on the knife roller. According to the different thickness of the cutting materials, the upper feed roll assembly can fluctuate within a certain range by the hydraulic systems. Qualified sheet stock falls through the sieve holes after chipping, and is discharged from the bottom, large sheet stock cutted in the machine.
The hydraulic system: when oil puts into from the oil pump to the oil cylinder, cover cap can be lifted up easily for replacement of blades; the upper feed roller assembly can be lifted up when maintenance, and it's easy to adjust the gap between knife and bedknife and the comb plate dismounting.
Main Technical Parameter:
| Model | BX213 | BX215 | BX216 | BX218 | BX2113 | BX2116 |
| Inlet Size(mm) | 120×300 | 170×430 | 230×500 | 300×680 | 450×700 | 600×1250 |
| Knife No.(pc) | 2 | 2 | 2 | 2 | 2 | 4×2 |
| Knife roller rotate speed(rpm) | 730 | 590 | 590 | 650 | 520 | 350 |
| Max Dia of raw material(mm) | 120 | 170 | 230 | 300 | 450 | 600 |
| Wood chips size(mm) | 25-35 | 25-35 | 25-35 | 25-35 | 25-35 | 25-35 |
| Capacity(t) | 1-3 | 3-5 | 5-8 | 8-12 | 15-30 | 90-100 |
| Main Motor Power(kw) | 30 | 37 | 55 | 110 | 200-250 | 710 |
| Feeder Motor Power(kw) | 2-3 | 3-4 | 3-4 | 4-5 | 5-6 | 6-7 |
| Oil Pump Motor Power(kw) | 1.1×2 | 1.1×2 | 1.5×1 | 1.5×1 | 7.5×2 | 18.5×2 |
| Weight(kg) | 1200 | 2000 | 4070 | 7000 | 12000 | 32000 |
| Overall Dimension(mm) |
680×870 ×900 |
1540×1240 ×1420 |
1800×1900 ×1210 |
2200×2150 ×1500 |
4670×2150 ×1500 |
4360×3150 ×2200 |
Note: The capacity will be affected by your raw material size, final chips size. Pls kindly advise these necessary information when you send a inquiry to us.
