10 tons per hour CE wood pellets making machine price
The biomass fuel pellet plant is mainly used to compress crushed corn straw ,sawdust ,plant waster ,sunflower stalk, rice husk, wood chips ,tree trunk, miscanthus, etc.
CE WoodPellet Production Line Tech. Data
1. Capacity: 1 t/h ~ 24 t/h
2. Raw Materials: Wood sawdust, logs, any type of agro-forestry wastes
3. Pellet Diameter: 6mm or 8mm (optional)
4. Pellet Density: 1.1~1.3 kg/m3
5. Final Pellet Moisture: <8%
6. Pellet Heat Value: >5000kcal/kg
Note: The above data concerning capacity, consumption may vary depending on the origin, nature of the raw material.
Current Data
Service Voltage: 380V, 50Hz
Control Voltage In Switch Cabinet: 220V, AC
Signal Voltage For Valves, Initiators 24V, DC
Features:
1, The key parts are made of alloy steel to be very strong and malleable.
2,Widely used in pelletizing for wood, straw and rice hull and other biomass sources.
3,The important key elements are of high performance with long life and low maintenance cost.
4,Ring die is made with international advanced equipment for long lifespan.
5,Drive with heavy-duty gearbox, which can produce continuously in most adverse condition.
Horizontal Ring die pellet machine Technical parameter:
NO |
NAME |
Model |
||
MZLH35 |
MZLH42 |
MZLH508 |
||
1 |
Capacity (wood pellet ) |
0.4-0.6 |
0.8-1.5 |
1.5-2.0 |
2 |
Power |
55 |
90 |
110/132 |
3 |
Screw feeder Power |
0.55 |
0.75 |
1.5 |
4 |
Pellet size |
φ6, φ8, φ10, φ12 |
φ6, φ8,φ10,φ12 |
φ6, φ8,φ10,φ12 |
5 |
No. of press roll |
2 |
2 |
2 |
6 |
Outer diameter of press roll |
165 |
206 |
222 |
7 |
Mashing rate(%) |
≤12% |
≤12% |
≤12% |
8 |
Dimension(mm) |
2165*895*1450 |
3150*1100*1650 |
3200*1300*1850 |
9 |
Weight(t) |
2.5 |
3.1 |
3.5 |

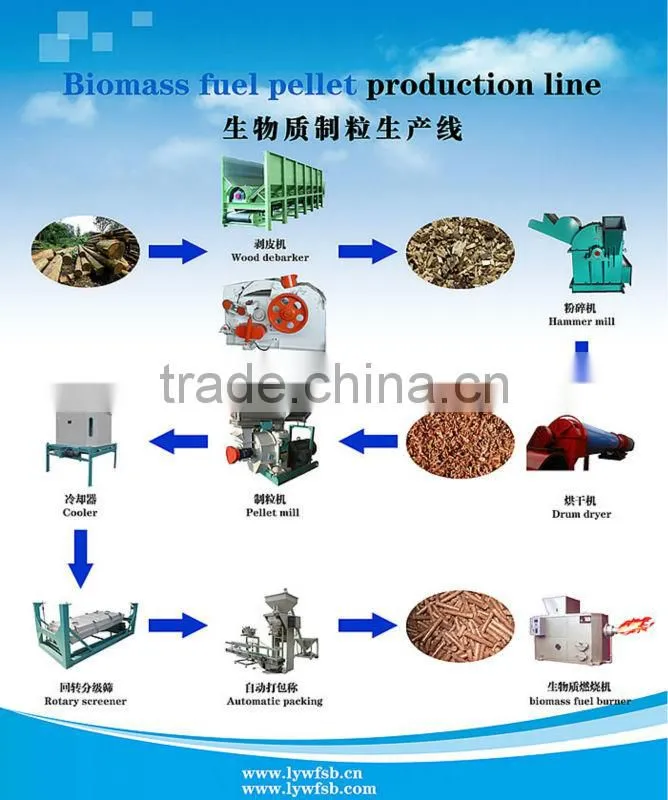

The Flow Path:
Debarking process—Chipping—Grinding process—Drying process—Pelleting process—Cooling & Sieving process—Packing process

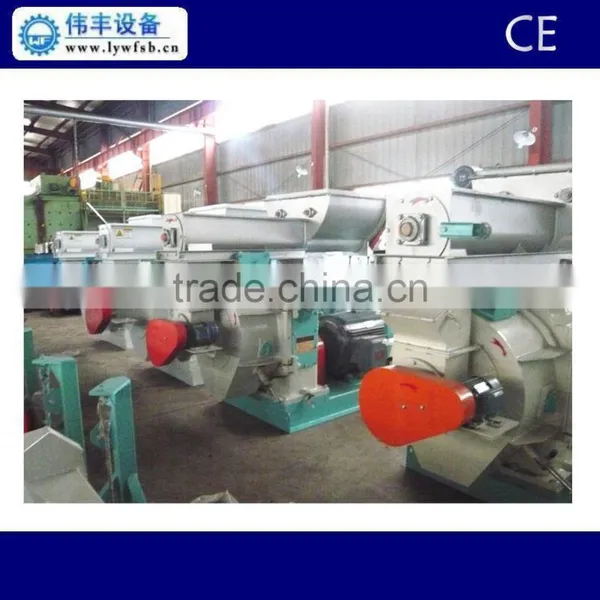

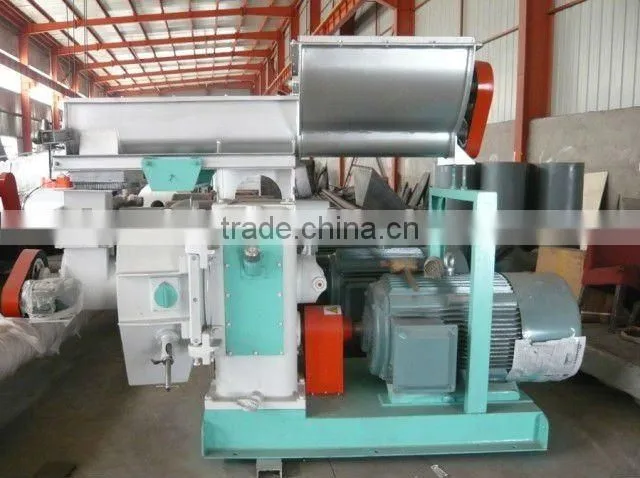

Ring Die Pellet mill:
Raw Material:

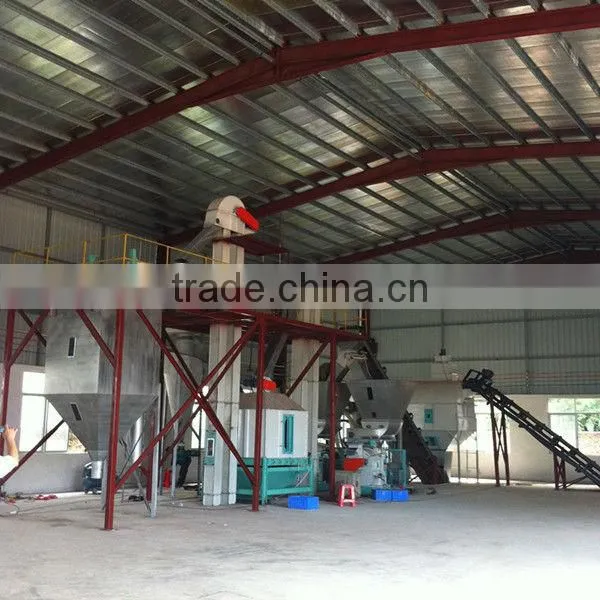

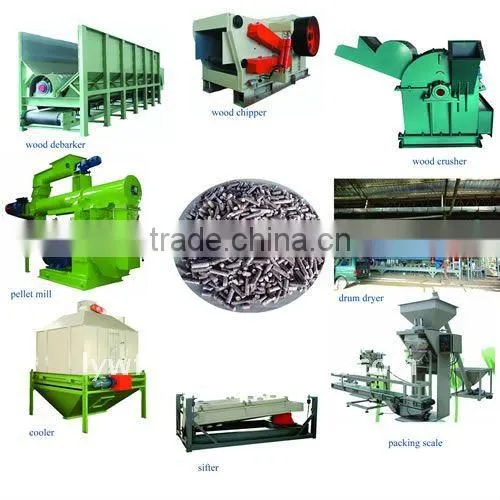

The whole production line:
Sample line photos:

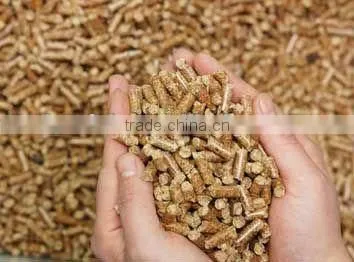

Pellet:

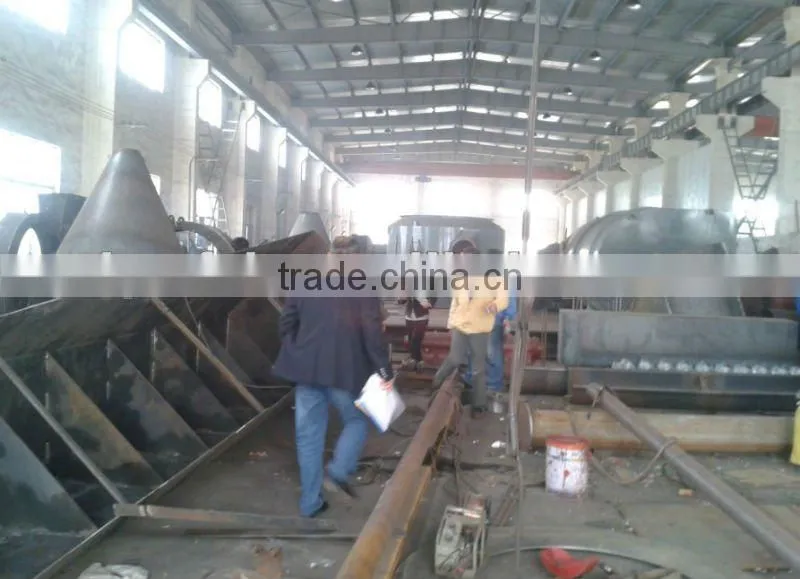

Customers visit our factory:

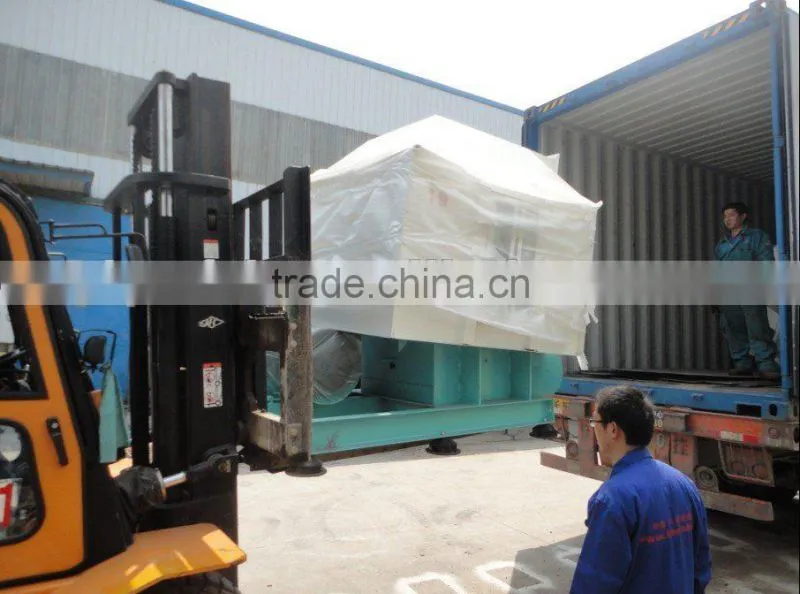

Deliverying:
If you're interested in our machines, pls kindly tell us the following information:
1. What's the capacity you want?
2. What's the raw material?
3. What's the size of the raw material?
4. What's the moisture content?
5. What's the final pellet size do you want?
6. Automatic packing or manual packing needed?
7. What's your country voltage?
Liyang Weifeng Equipment Co., Ltd.
Welcome to visit our factory.
