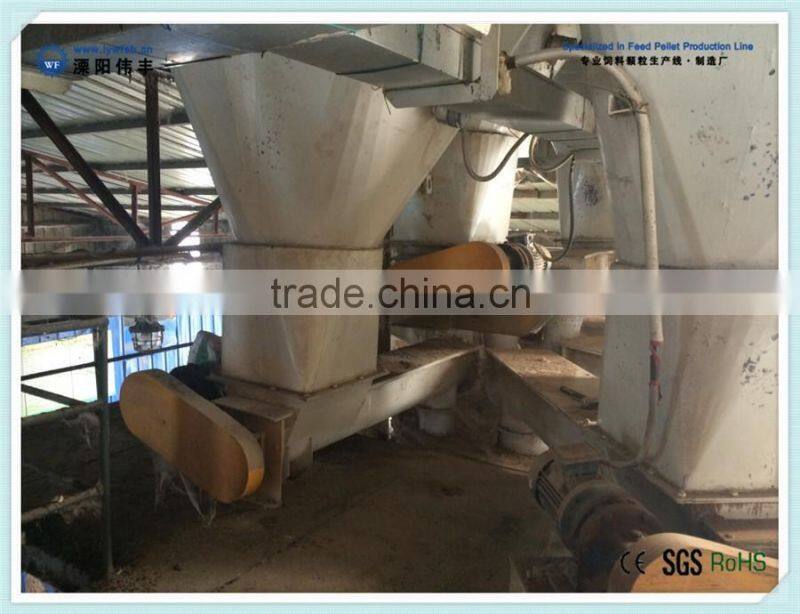

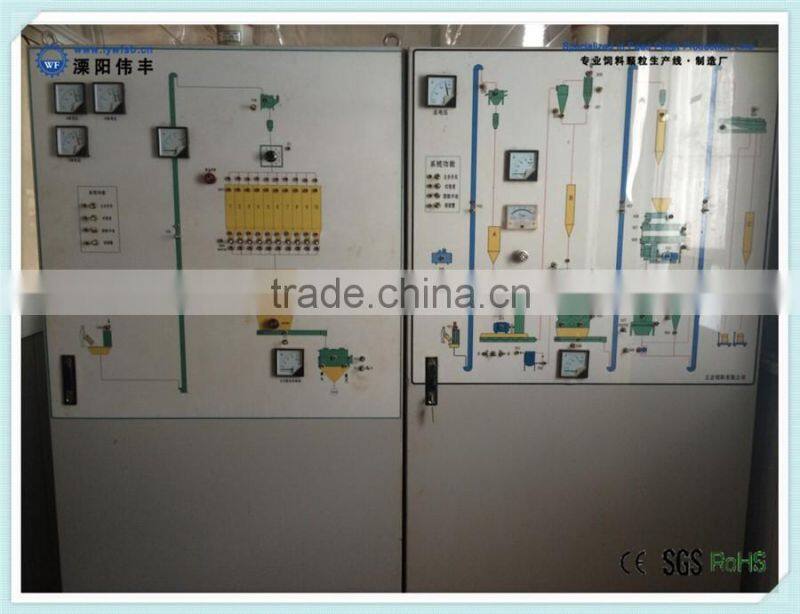

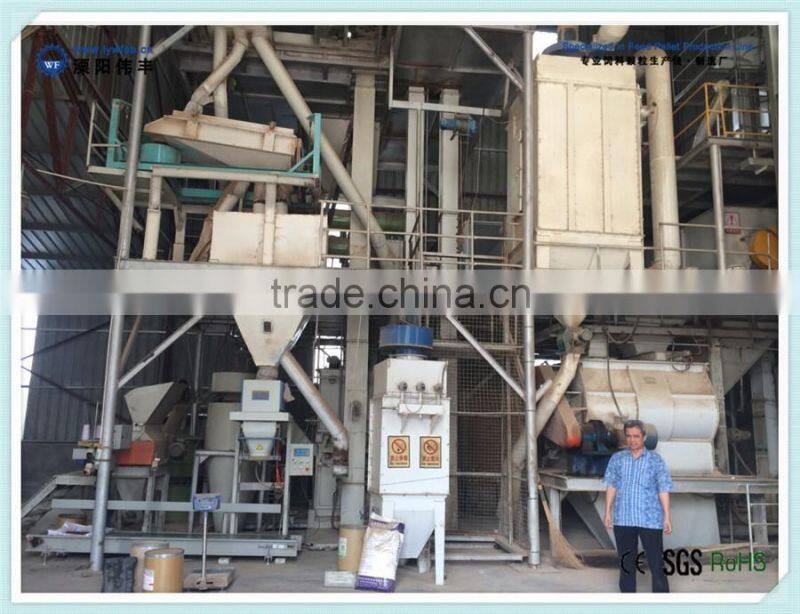

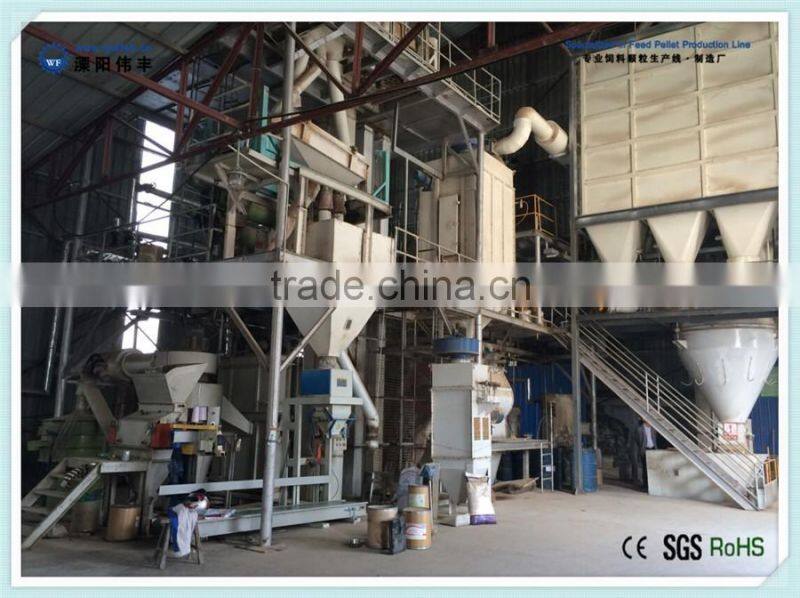

1-30 TPH feed plant:
Application :
1.1 SZLH series top-grade pellet mill belong to hard granular material die pellet mill, it is widely used in various feed mills.
1.2 This machine has characteristics such as compact structure, fine appearance, low power consumption, easy to use and reliable working etc.
1.3 This machine is equipped with dies of various apertures asφ 2 , φ 3 , φ 4 , φ 4. 5, φ 5 , φ 6 ,φ 8 and φ10 , and can customize the die of different apertures for users , users can select for use according to different needs.
1.4 This machine adopts frequency conversion (electromagnetic) transfer speed electric motor to feed material, and with lengthened type and strengthened type of big door-opening conditioner which equipped with axial steam spraying device, also there is strong magnetic security device, overload protective device and outside-machine material discharging mechanism.
Technical parameters:
No. |
Item |
Technical parameters and performance index |
|||||
SZLH350 |
SZLH400 |
SZLH420 |
SZLH508 |
||||
1 |
Capacity (t/h) |
2-7 |
3-12 |
3-14 |
4-20 |
||
2 |
Power (Kw) |
Main machine |
55 |
75/90 |
90/110 |
110/132/160 |
|
Screw feeder |
0.75 |
1.5 |
1.5 |
1.5 |
|||
Conditioner |
3 |
5.5 |
5.5 |
11 |
|||
3 |
Inner diameter of die (mm) |
φ350mm |
φ400mm |
φ420mm |
φ508mm |
||
4 |
Effective width of die (mm) |
120mm |
120mm |
120mm |
150mm |
||
5 |
Rotary (rpm) |
Die |
328 |
248 |
248 |
|
|
Screw feeder |
12-120 |
12-120 |
12-120 |
12-120 |
|||
Conditioner |
300 |
270 |
270 |
270 |
|||
6 |
Pellet size (mm) |
φ2—φ10mm |
φ2—φ10mm |
φ2—φ10mm |
φ2—φ10mm |
||
