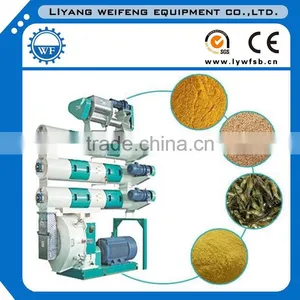

aqua fish feed production line

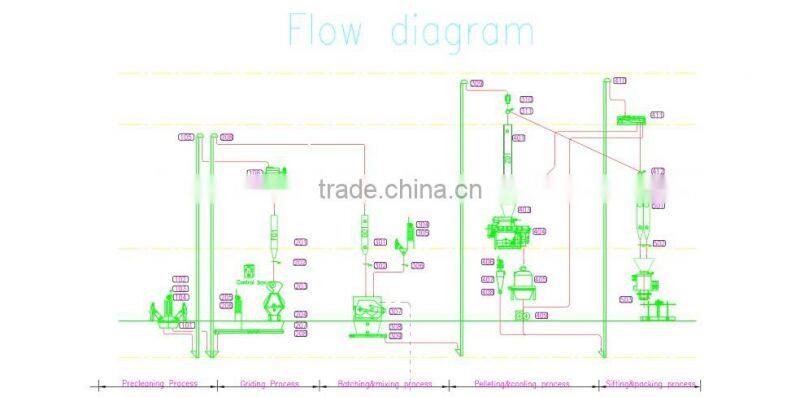

Feed Production Line Process

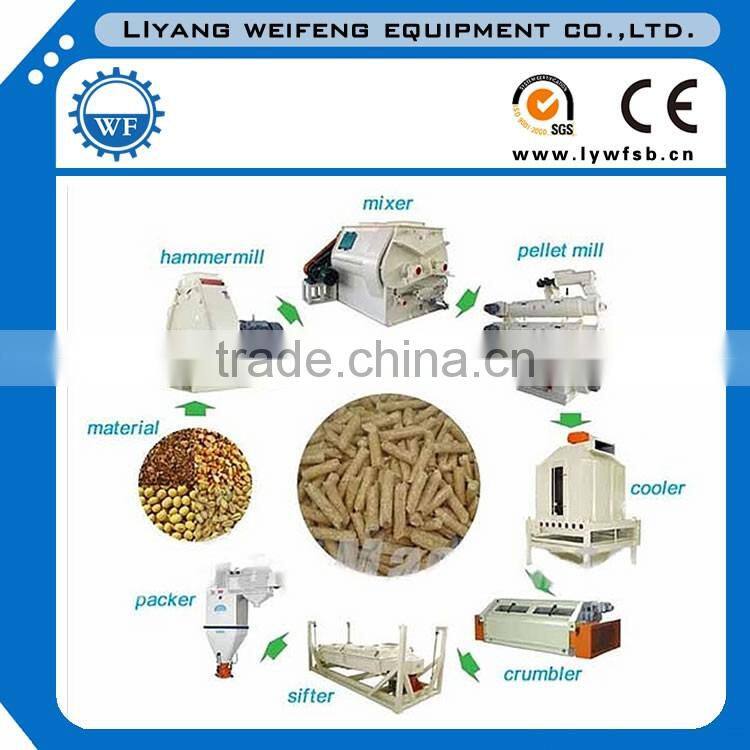

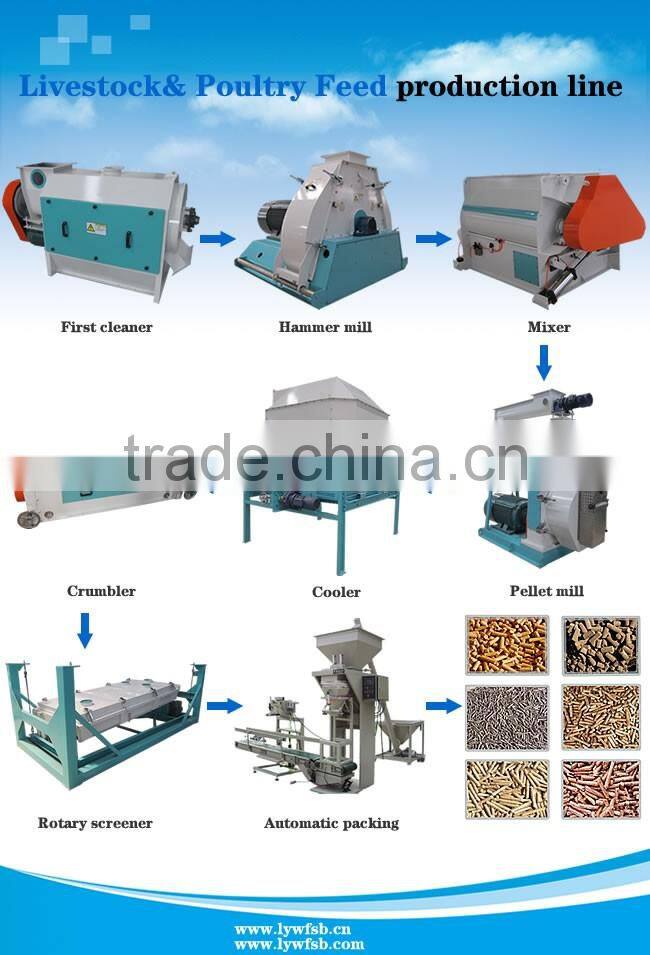

Raw material cleaning---grinding---mixing---pelletizing---cooling---screening---packing
small animal feed pellet mill, animal feed pellet machine
Features:
1.1 SZLH series top-grade pellet mill belong to hard granular material die pellet mill, it is widely used in various feed mills.
1.2 This machine has characteristics such as compact structure, fine appearance, low power
consumption, easy to use and reliable working etc.
1.3 This machine is equipped with dies of various apertures asφ 2 , φ 3 , φ 4 , φ 4. 5, φ 5 , φ 6 ,φ 8
and φ10 , and can customize the die of different apertures for users , users can select for use
according to different needs.
1.4 This machine adopts frequency conversion (electromagnetic) transfer speed electric motor to
feed material, and with lengthened type and strengthened type of big door-opening
conditioner which equipped with axial steam spraying device, also there is strong magnetic
security device, overload protective device and outside-machine material discharging mechanism.
Technical parameter of feed pellet mill:
o. |
Item |
Technical parameters and performance index |
||||||
SZLH250 |
SZLH320 |
SZLH350 |
SZLH400 |
SZLH420 |
SZLH508 |
|||
1 |
Capacity (t) |
0.5-1.5 |
1-5 |
2-7 |
3-12 |
3-14 |
4-20 |
|
2 |
Power (Kw) |
Main machine |
15/22 |
37 |
55 |
75/90 |
90/110 |
110/132/160 |
Screw feeder |
0.55 |
0.75 |
0.75 |
1.5 |
1.5 |
1.5 |
||
Conditioner |
1.5 |
3 |
3 |
5.5 |
5.5 |
11 |
||
3 |
Inner diameter of die (mm) |
φ250mm |
φ350mm |
φ350mm |
φ400mm |
φ420mm |
φ508mm |
|
4 |
Pellet size (mm) |
φ2-φ18mm |
φ2-φ18mm |
φ2-φ18mm |
φ2-φ18mm |
φ2-φ18mm |
φ2-φ18mm |
|
5 |
No. of press roll |
2 |
2 |
2 |
2 |
2 |
2 |
|
6 |
Outer diameter of press roll |
/ |
/ |
φ140mm |
φ190mm |
φ190mm |
/ |
|
7 |
Shaping rate(%) |
≥95% |
≥95% |
≥95% |
≥95% |
≥95% |
≥95%
|
|

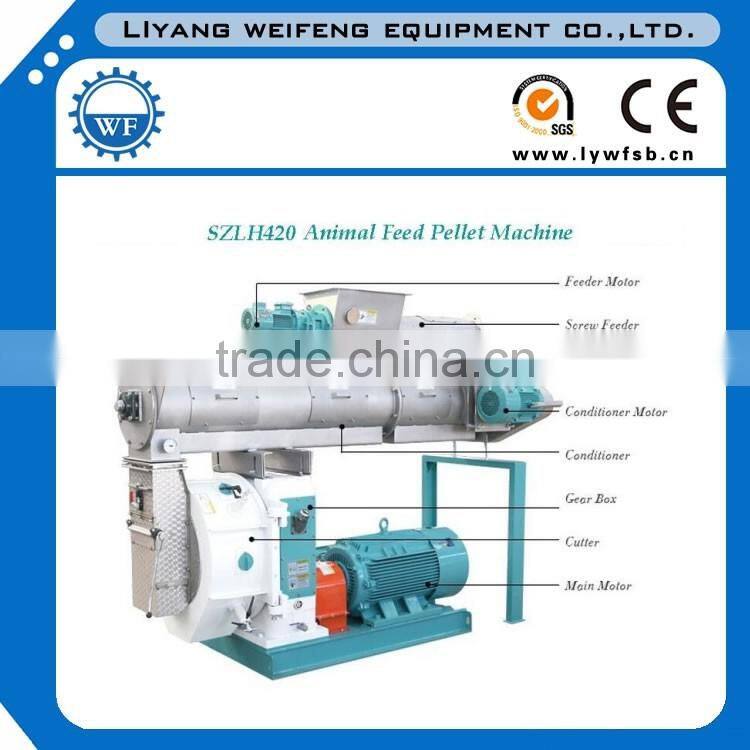

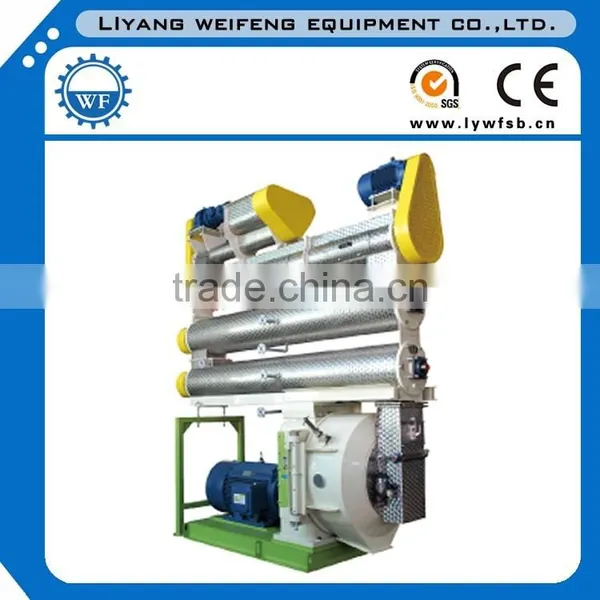

Feed Pellet Mill picture and structure:
We use WANNAN/Siemens brand motor,NSK bearing,forging main shaft.
Adopting gear driven, the power consumption can low down 15% and output capacity can improve 10% than belt driven.
All feeder,conditioner and face plate are stainless steel.

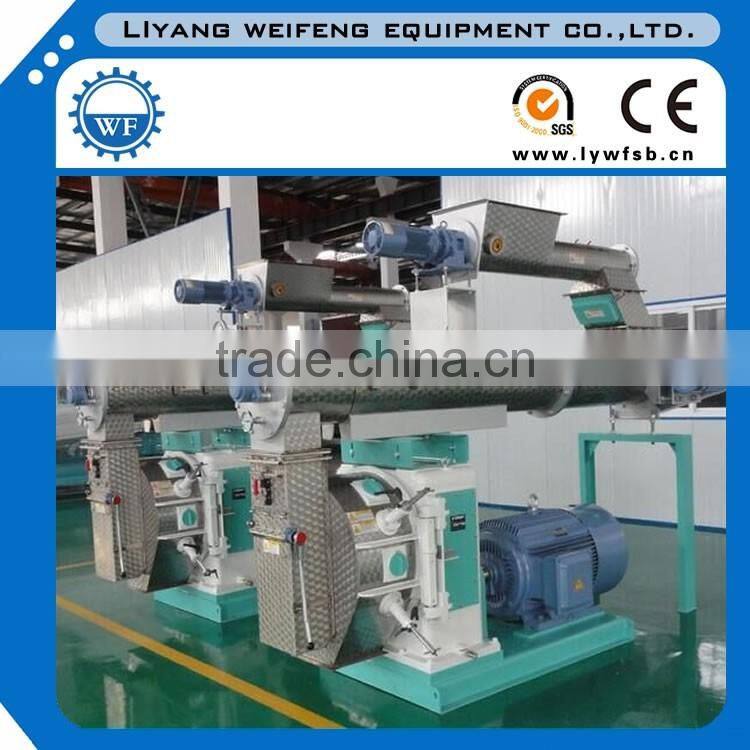

Feed pellet mill in stock:
Finished Products:
Packing and Delivery
♥Wooden or metal case according to specific size of each equipment, we twine thick plastic coating for each machine.
♥Tight the equipment in the truck without space to ensure no rubbing during the transportation.
We are manufacturing various pellet mill and complete project, such as high quality animal
feed, poultry feed, livestock feed, farm animal feed, pig feed, horse feed, chicken feed pellet
machine, cattle feed pellet machine, crab feed pellet mill, duck feed, cow feed, goat feed,
cat feed, rabbit feed, pigeon feed, sheep feed, fish feed pellet mill, aqua feed pellet machine,
shrimp pellet machine, and so on.
Our factory Liyang Weifeng Equipment Co., Ltd. is a professional manufacturer
specialized in developing, producing and maketing topcalss animal feed pellet mill and
all 1-30t/h feed pellet production lines. Our production line can make feed for cattle, chicken, goat, duck, horse, fish, shrimp etc..
The main pellet mill are as following: SZLH250,SZLH320,SZLH350,SZLH400,SZLH420,SZLH508
The capacity can be 1-3t/h,5-8t/h,8-12t/h,20t/h,30t/h
The pellet diameter is from Ø2mm to Ø16mm
Welcome to visit our factory in China!
Liyang WeiFeng Equipment Co., Ltd.
