Design and make your own required sunflower seeds pellet line:
1) Ring die and gear drive type;
2) wood pellet machine without conditioner;
3) Ring die pellet mill is far superior to flat die technology;
4) Gear drive is much better than belt drive;
5) Includes one ring die and a set of rolls.
A large selection of stainless steel or alloy steel dies for this machine that can be purchased separately
1 Driven with heavy-duty gearbox construction can produce continuously in most adverse condition.
2 The imported key elements are of high performance with long life and low maintenance cost.
3 The key parts are made of alloy steel to be very strong and malleable. Die is made of stainless steel.
4 Pellet machine is widely used in the granulation of wood, straw, rice husk and other biomass sources.
technical parameter:
NO | NAME | Model | ||||
MZLH30 | MZLH35 | MZLH40 | MZLH42 | MZLH508 | ||
1 | Capacity (wood pellet ) | 0.1-0.3 | 0.3-0.5 | 0.5-0.8 | 0.8-1.5 | 1.5-2.0 |
2 | Power | 37 | 55 | 70/90 | 90 | 132/160 |
3 | Screw feeder Power | 0.55 | 0.55 | 0.75 | 0.75 | 0.75 |
4 | Pellet size | φ6, φ8, φ10, φ12 | φ6, φ8, φ10, φ12 | φ6, φ8, φ10, φ12 | φ6, φ8,φ10,φ12 | φ6, φ8,φ10,φ12 |
5 | No. of press roll | 2 | 2 | 2 | 2 | 2 |
6 | Outer diameter of press roll | 146 | 165 | 190 | 206 | 222 |
7 | Mashing rae(%) | ≤12% | ≤12% | ≤12% | ≤12% | ≤12% |
8 | Dimension(mm) | 2006*800*1300 | 2165*895*1450 | 2302*970*2105 | 3150*1100*1650 | 3200*1300*1850 |
9 | Weight(t) | 2.1 | 2.5 | 2.8 | 3.1 | 3.5 |
Raw material can be:
Detail pictures of the machine:

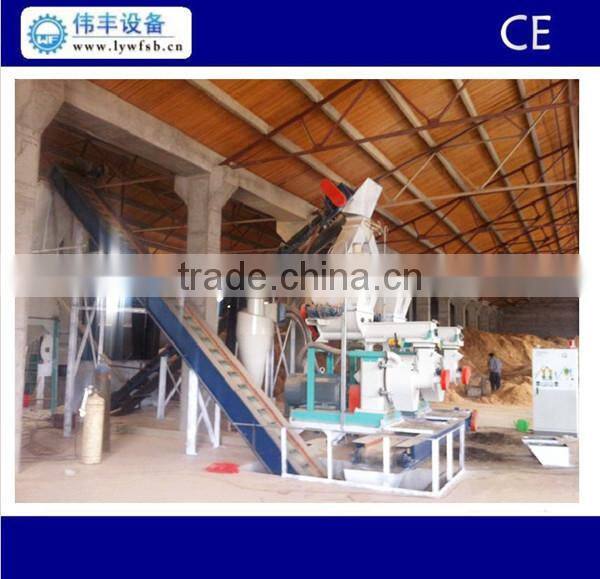

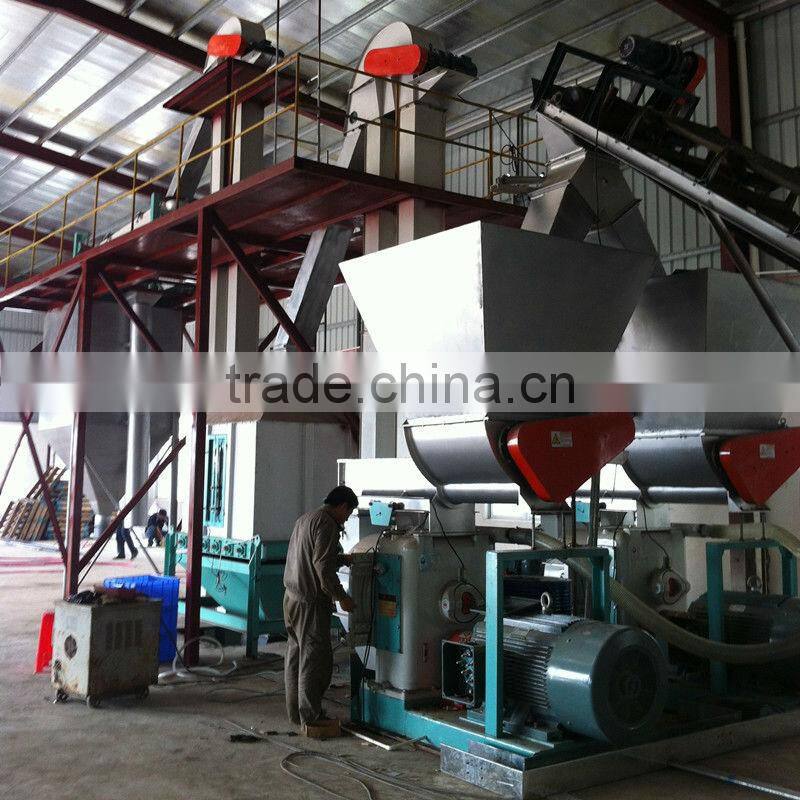

pellet mill in the line:
Delivery:
Welcome to our factory!
Liyang weifeng equipment co.,ltd
