Efficient complete wood pellet production line, 1T/H to 4T/H wood pellet line
- 50 Set / Sets per Month
- Shanghai port China
- T/T L/C D/P D/A Credit Card PayPal
- BEFZ Household Kitchen Scale High Precision Mini Digital Balance 0.01g digital pocket scale Capacity 500g/0.01g Pocket Scale
- 2014 New arrival western ladies Rivet new fashion belt with flower leather pattern buckle Wholesale /Retail sell
- Dung cleaning machine
- mini rice mill
- stainless steel seeds roaster
- incense stick making machine
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | LYWF |
Model Number: | MZLH420, MZLH508 | Voltage: | 380V | Power(W): | 90-110kw |
Dimension(L*W*H): | 3380*1480*3180mm | Weight: | 3.5T | Certification: | CE |
Warranty: | 1-3 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Efficient complete wood pellet production line, 1T/H to 4T/H wood pellet line
Our company, Liyang Weifeng Equipment Co.,Ltd, is specialized in all kinds of CE biomass fuel pellet production line, wood pellet production line,sawdust pellet production line,rice husk pellet production line,straw pellet production line,bark pellet production line, bamboo pellet production line. sunflower husk pellet production line, peanut pellet production line, etc.
How to make wood pellets? The following process can tell you the exactly:
*Debarking process(if needed)
*Chipping process(if the log is larger than 150mm,wood chipper can chip it into 20-50mm)
*Grinding process(grind the material into small powder to feed in pellet mill)
*Drying process(if the moisture is higher than 17%, need drying)
*Pelleting process(6mm,8mm,10mm,12mm pellets can be formed by our pellet mill)
*Cooling & Sieving process(the temperature after pelleting is high to 90°C, it needs cooling)
*Packing process

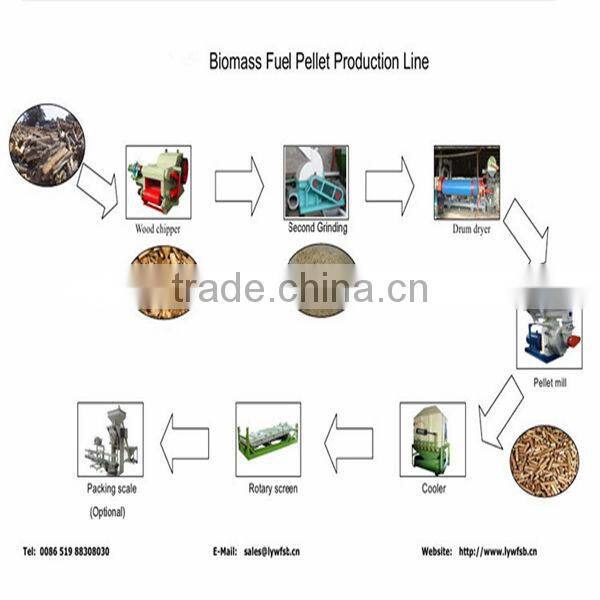

Whole process of European certified complete wood pellet DIN PLUS line, complete wood pellet production line for sale:

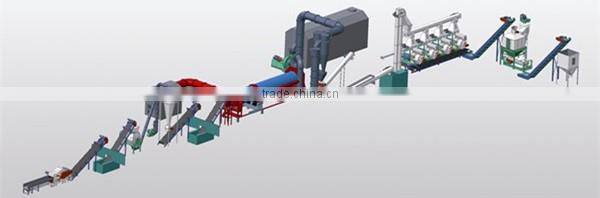

Effect picture of European certified complete wood pellet DIN PLUS line, complete wood pellet production line for sale:
Ring die pellet machine Technical parameter:
NO | NAME | Model | ||||
MZLH30 | MZLH35 | MZLH40 | MZLH42 | MZLH508 | ||
1 | Capacity (wood pellet ) | 0.1-0.3 | 0.3-0.5 | 0.5-0.8 | 0.8-1.5 | 1.5-2.0 |
2 | Power | 37 | 55 | 70/90 | 90 | 132/160 |
3 | Screw feeder Power | 0.55 | 0.55 | 0.75 | 0.75 | 0.75 |
4 | Pellet size | φ6, φ8, φ10, φ12 | φ6, φ8, φ10, φ12 | φ6, φ8, φ10, φ12 | φ6, φ8,φ10,φ12 | φ6, φ8,φ10,φ12 |
5 | No. of press roll | 2 | 2 | 2 | 2 | 2 |
6 | Outer diameter of press roll | 146 | 165 | 190 | 206 | 222 |
7 | Mashing rae(%) | ≤12% | ≤12% | ≤12% | ≤12% | ≤12% |
8 | Dimension(mm) | 2006*800*1300 | 2165*895*1450 | 2302*970*2105 | 3150*1100*1650 | 3200*1300*1850 |
9 | Weight(t) | 2.1 | 2.5 | 2.8 | 3.1 | 3.5 |
Characters of wood pellet mill:
1. the wood pellet machine can press biomass such as sawdust, straw and rice husk pellet.
2. adopting coldpressing molding technology, polishing process. Beautiful appearance, compact structure.
3. using special high quality materials and advanced even shaft driving device, the key components are high quality alloy steel with wear-resisting material, using German vacuum heat treatment furnace, will span the working life to five to seven times.

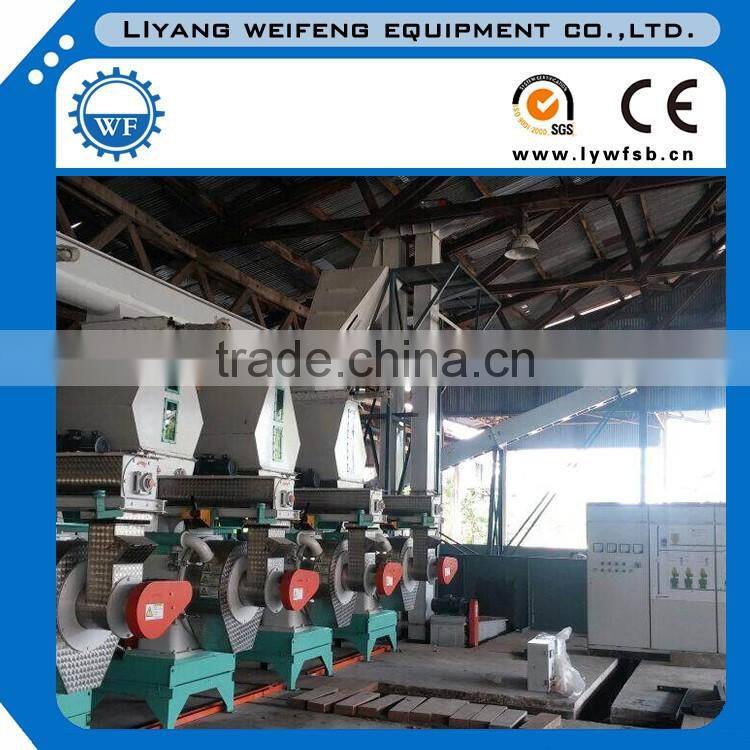

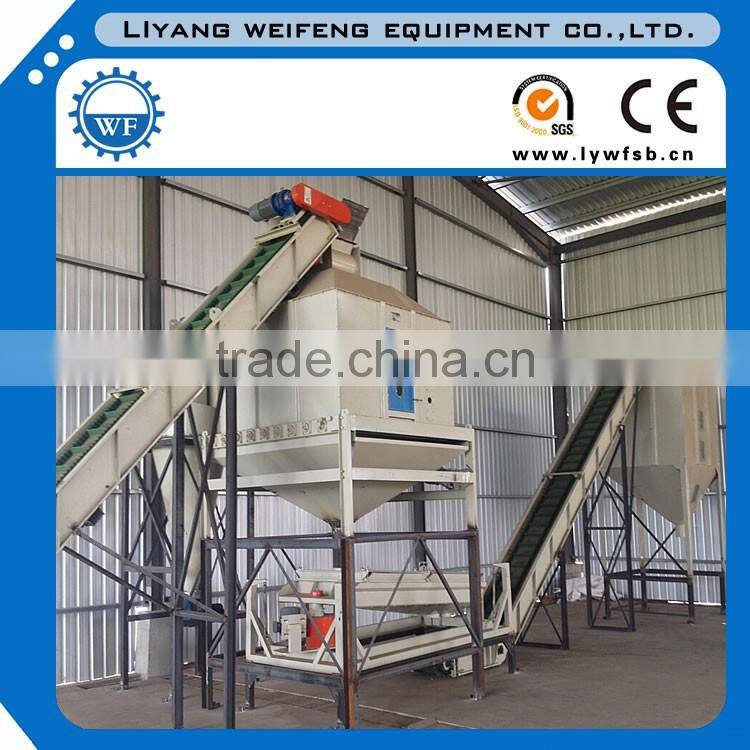

Sample complete wood pellet DIN PLUS line photos:

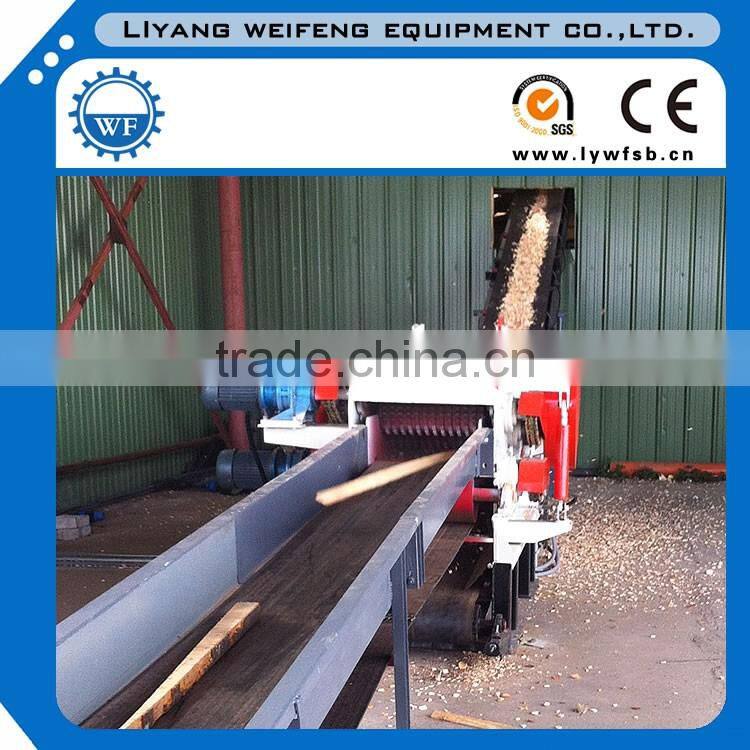

wood chipper(Click the picture for more information):

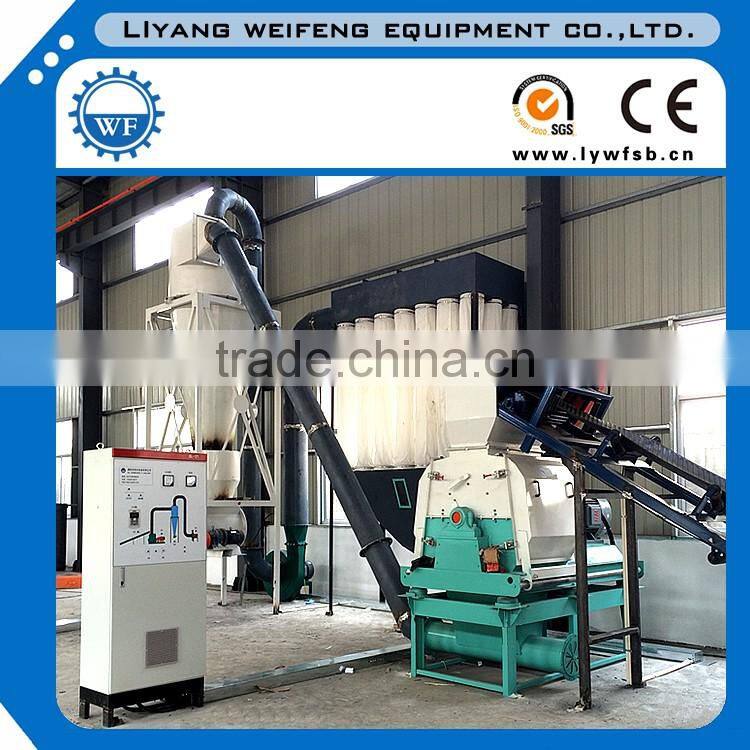

Hammer mill (Click the picture for more information):

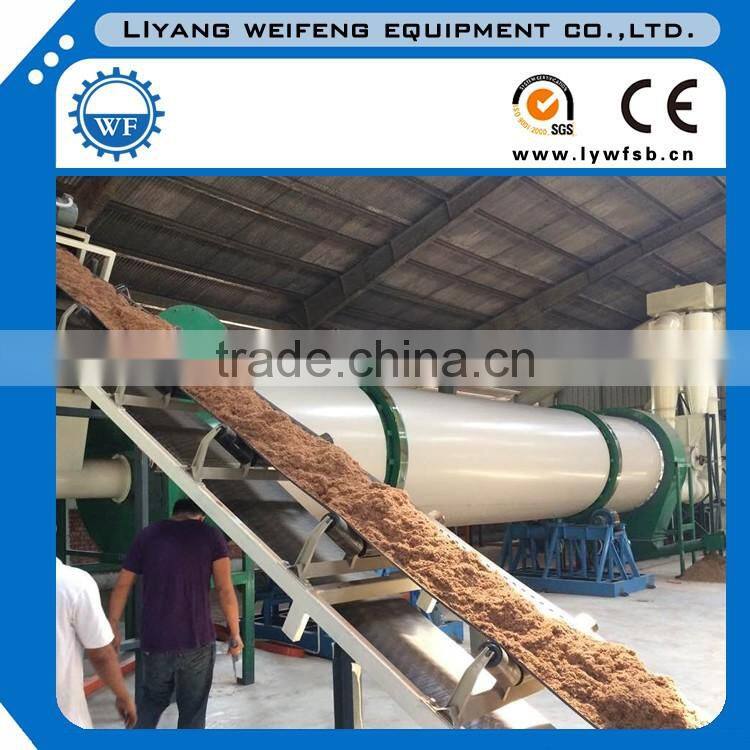

Dryer (Click the picture for more information):

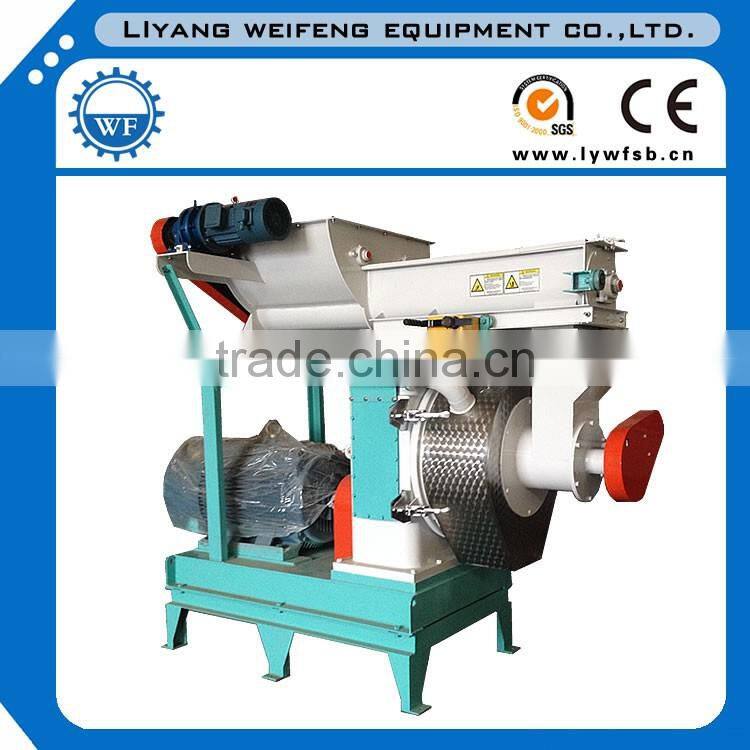

Pellet Machine (Click the picture for more information):
Cooler (Click the picture for more information):

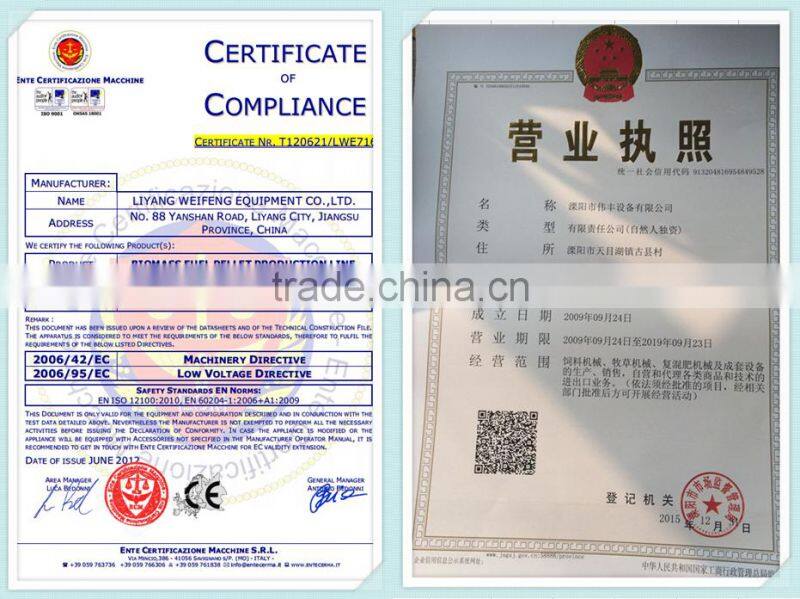

Certification and Business Lisense:
If you're interested in our complete wood pellet DIN PLUS line, pls kindly tell us the following information:
1. What is your raw material? Wood chipper, log, sawdust, or etc.?
2. What is your raw material size? Such as diameter, length, width, etc?
3. What is the moisture content? Usually the best pelletizing moisture content is 13%-17%, less than 13%, you need spraying; higher than 17%, you need dryer.
4. What is the pellet diameter you want? We can produce Φ2mm-Φ12mm etc.
5. You need automatic packing or manul packing?
6. What is your country voltage?
Welcome to your inquiry!
And Welcome to visit our factory in China!
Liyang WeiFeng Equipment Co., Ltd.
