Wire drawing machine available steel wire / ss wire / spring wire
Specification:
Spec |
Draft |
Max inlet diameter |
Min inlet diameter |
capacity of electric motor |
Max speed |
Noise level |
350 |
6-10 |
Φ 3.5mm |
Φ 0.6mm |
7.5-11KW |
20M/s |
80-82dBA |
400 |
6-10 |
Φ 4.2mm |
Φ 0.75mm |
11-15KW |
20M/s |
80-82dBA |
450 |
6-11 |
Φ 4.8mm |
Φ 1.0mm |
15-22KW |
18M/s |
80-82dBA |
500 |
6-12 |
Φ 5.0mm |
Φ 1.2mm |
22-37KW |
18M/s |
80-82dBA |
560 |
4-13 |
Φ 6.5mm |
Φ 1.4mm |
22-45KW |
18M/s |
80-83dBA |
600 |
4-13 |
Φ 7.0mm |
Φ 1.6mm |
22-55KW |
16M/s |
80-83dBA |
700 |
4-9 |
Φ 8.0mm |
Φ 2.2mm |
45-75KW |
12M/s |
80-83dBA |
900 |
6-10 |
Φ 14mm |
Φ 4.0mm |
75-110KW |
10M/s |
80-83dBA |
1200 |
1-9 |
Φ 16mm |
Φ 5.0mm |
90-110KW |
8M/s |
80-83dBA |
Properties:
Equipment capacity: Maxi Line Diameter 6.5mm, tensile strength ≤ 1350MPa; mini outlet diameter 1.2mm.
Maxi drawing speed: 720m/min.
Braking capacity: under extreme speed, normal braking ≤ 50s, rapid braking ≤ 15s an emergency braking ≤ 3s.
Coil methods: spool payoff machine or trunk wire rewinding machine.
Functions:
The equipment is equipped with a number of functions, including man-machine interaction, over-temperature protection for motor, water pressure abnormalities, full foot alarm and fault display, etc.
Features:
Mechanical characteristics
Main transmission adopts high-precision hard-toothed gear box, of which unique manufacturing process insures no oil leak at least in 3 years.
Surfacing (build-up welding) with the drawing drum leaves no groove in 3 years.
Main transmission parts should pass the dynamic balance test.
Application:
Straight line wire drawing machine is available for drawing welding wires (flux cored wire, submerged-arc welding wire, pas-shielded welding wire), steel wires (low, medium and high carbon steel wire), ss wire, spring wire, prestressed steel wire, hose wire, tyre wire, steel cord and electric wires (copper wire, aluminum wire) and allow steel wire and other metal wires.
Advantages:
Lowwork hardening rate
During the manufacturing process, this wire drawing machine adopt no bending, no torsion technologies and strong cooling technologies, all of which make the wire has a low work hardening rate and excellent toughness and ductility.
High efficiency and low consumption
The straight wire drawing machine is famous for its high efficiency and low cost. When it is applied, it will bring huge cost-reduction as a result of its low power consumption, high percent of pass and yield rate.

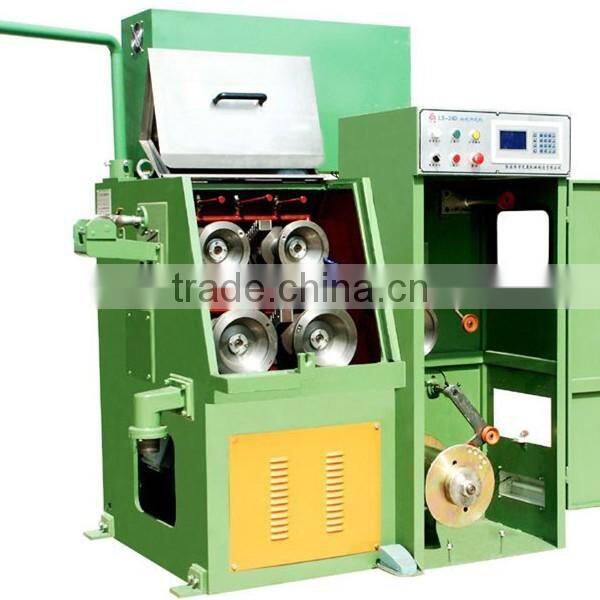

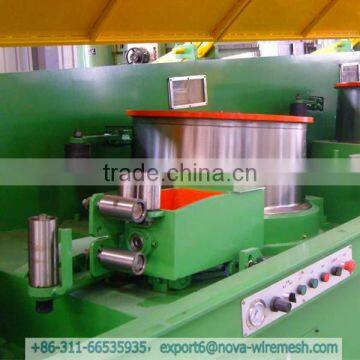

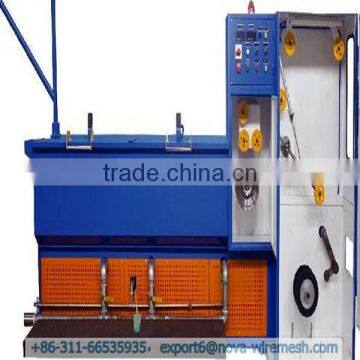

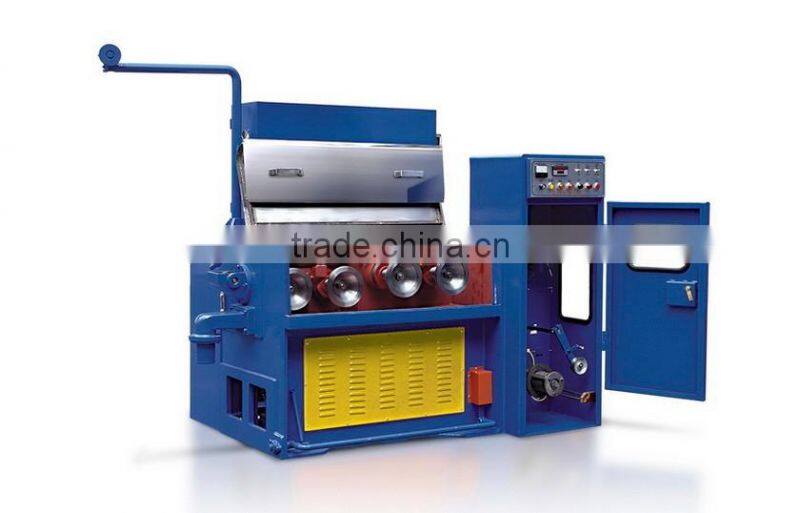

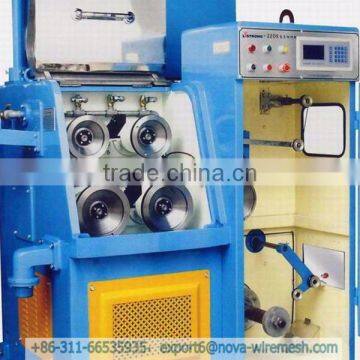

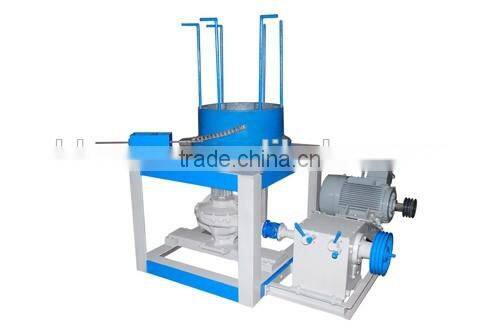

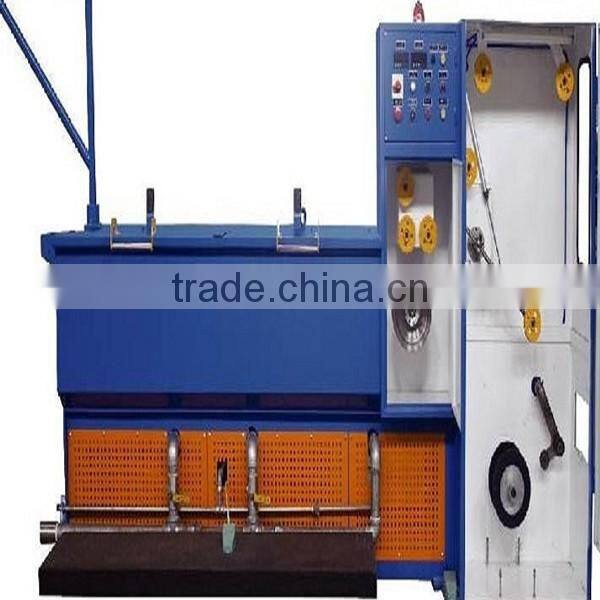

Product pictures:
Factory information:
Company: Hebei Nova Metal Wire Mesh Product Co., Ltd.
Adress:#2-2-602,Donggangyiyuan, Jianqiang Road, Yuhua District, Shijiazhuang Hebei, China
Web: Tel/Fax:0311-66535935
Skype: export6nova-wiremesh93 QQ:2814018309
