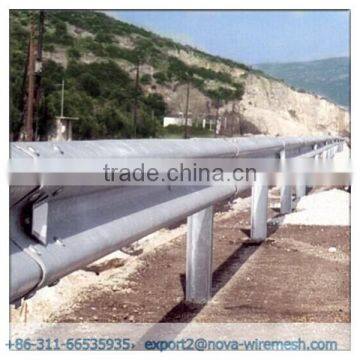

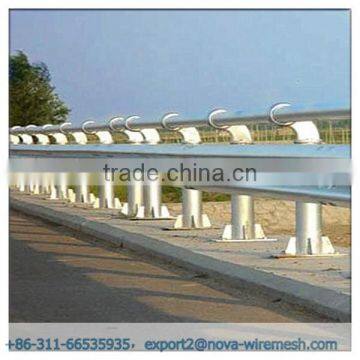

Galvanized / PVC coated W beam guardrail
Highway guardrail, considered as a passive barrier, is widely installed to keep the vehicles running inside of road. When inevitable collision occurred, highway guardrails can effectively decelerate the speed of errant vehicles and redirect them back to the road by controlling the exit angles. Additionally, it also makes the highway apparent to avoid running animals to stray into the roads.
W-beam guardrail is a kind of road crash barrier used for securing highway safety by preventing errant vehicles from sliding out of the roads and impacting the roadside buildings or other objects. So it is most commonly fixed on the side of the highways, dock areas, aisles, especially on curves and slopes for protection against run-off-road collisions.
Our W-beam guardrail product is formed in accordance with the latest highway safety barrier technology for making sure its high durability and maximum strength. It is made of high quality steel, which reduces the impact force caused by mobile equipment to the maximum extent. Meanwhile, the zinc coating or PVC coating perfectly combined to the W-beam guardrail keeps the products free of damages of corrosion and rust.
Advantages:
- Easy installation: just attach the beam directly to the post, no need of blocks.
- Prevent the mobile equipment from skidding off the road by redirecting it
- Minimum the damage of errant vehicles
- High quality material and anti-rust surface for longer service life
- Corrosion resistant
- Can be repaired quickly after accident
W-beam guardrails we supply:
To meet the needs our customers, we supply straight and pre-curved W-beam guardrail products.
Generally, straight W-beam guardrail just can be applied to the curves with a radius greater than 45m by being lined up for transitioning smoothly. For the radius less than 45m,
the pre-curved W-beam guardrail product exploits its advantages to a full.
1) Straight W-beam guardrails

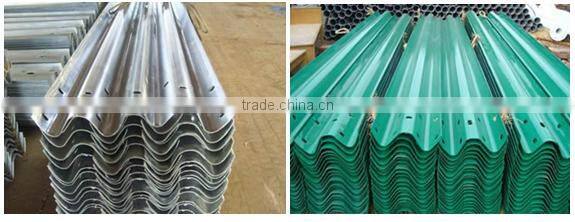

Straight galvanized W-beam guardrails Straight PVC coated W-beam guardrails
2) Pre-curved W-beam guardrails:

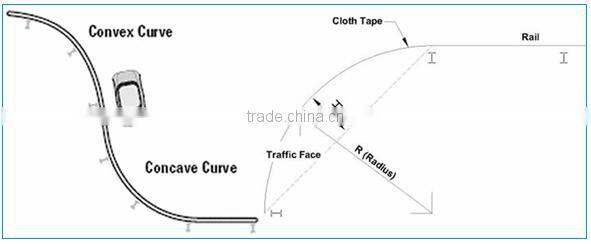

The beam guardrails can be curved either convex or concave in various degree angles for different application.
It is normally curved with a radius from 1.5m to 50m which refers to the traffic face of the road.

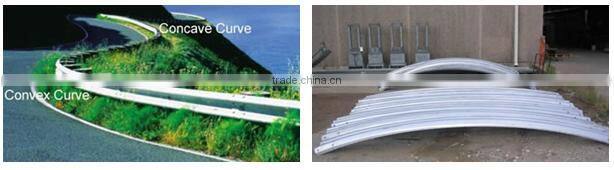

Convex and concave curved W-beam guardrails Curved W-beam guardrails

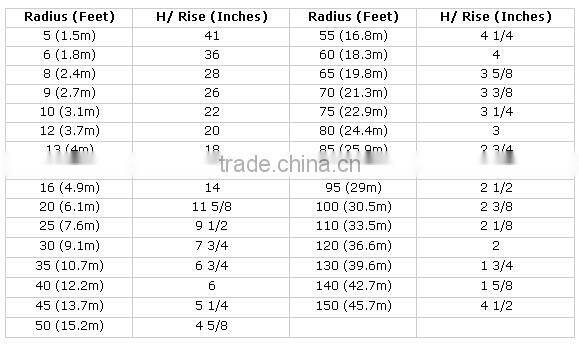

Curved W-beam guardrail details
Specifications of W-beam guardrail:
W-beam |
Length |
4100-4400mm |
Wave width |
300-600mm |
|
Wave height |
50-100mm |
|
Thickness |
2-6mm |
|
Zinc coating |
Weight |
More than 500g/m2 |
Thickness |
More than 70m |
|
Notes: Custom length, width, height and thickness are available as your requirements. | ||
Process and package of highway guardrail traffic barrier:
Accessories of highway guardrail traffic barrier:
1. Guardrail Terminal End - Best Protection against Impact

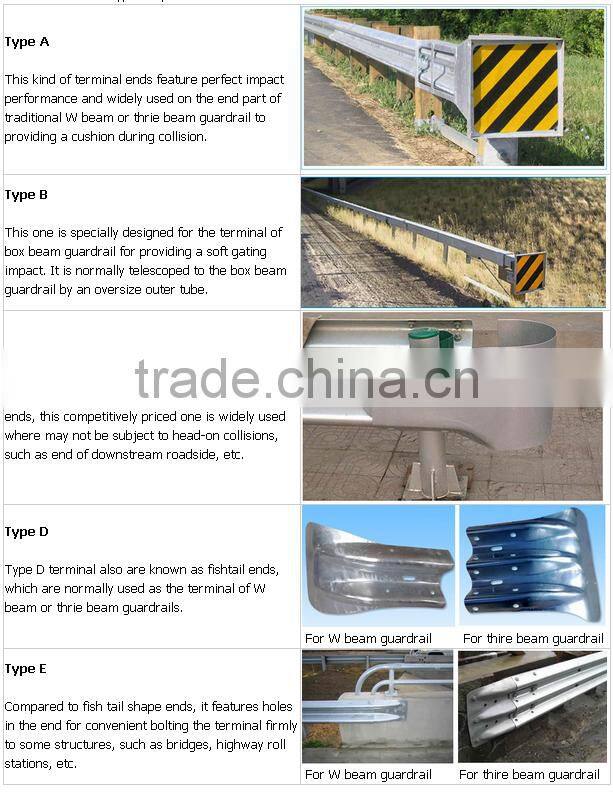

The guardrail terminal we supply:
Generally, different types and applications of highway guardrails mean the different shapes and sizes of terminal ends. We mainly supply five kinds of guardrail terminal ends.
Details:
Surface: galvanized or PVC coated
Color: any color is available (custom paintings are acceptable)
Sizes: according to the sizes and shapes of guardrails you owned
Suitable to various types of post
2. Crash Cushions - Loyal Protector of Tollbooths
Crash cushion, a visual and physical passive cushion, provides buffer function to reduce to damage to the vehicle and its driver.
Meanwhile, it acts as a direction corrector for redirecting the car by changing the car's exit angles and avoiding the car traversing the median of the road.
To avoid crash happening, the crash cushions are often painted yellow as warning color. Additionally, it also notices driver to slow their cars down.
Specifications:
Hazard widths: 1000mm – 2500mm
Design speeds: 50kph – 100kph
Suitable for W beam guardrail and thrie beam guardrail
The crash cushions we supply:

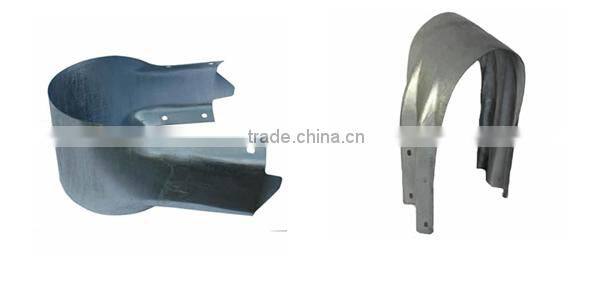

Normal shape crash cushion Fishtail shape crash cushion
3. Guardrail Post
Guardrail post, as a holder of highway guardrails, generally determines the barrier's performance during collisions.
The guardrail posts we supply are well designed and made of high quality steel, such as Q235, Q345 and Q255 or depend on your needs. Additionally, it features a long service life due to its anti-rust and corrosion resistant characters, which proceed from its superior zinc coating or PVC coating.
The guardrail post we supply:
Details:
Material: Q235 (Q235JR), Q345 (Q355JR), Q255JR, etc.
Surface: hot dip galvanized or PVC coating
Zinc coating thickness: 500g/m2 - 1200g/m2 as your requirements
Length: 0.45m - 3m (the posts can be tailored depends on your requirements)
Thickness: 3mm - 8mm as request.
Sizes:
Shapes: |
Cross section sizes: |
U shape post |
120×80mm, 150×75mm |
C shape post |
100×50mm, 120×55/68/80mm, 150×120mm, 1600×120mm |
Sigma post |
100×55mm |
H shape post |
120×55mm, 140×73mm |
Square post |
130×130mm or 4'×4', 5'×5', 6'×6' |
Round post |
Diameter: 100mm - 150mm |
According to the place of your intended application, we provide guardrail posts with or without flange plates.
Generally, the post without flange plate is mostly fixed to soft soil by post anchors. But if you want to fix it on the concrete road, the post with plate is your best choice for easy installation: Just fasten the post to your desired place with bolts.
4. Other Guardrail Accessories
Except highway guardrails we also provide high quality accessories including caps, bolts, nuts, and offset blocks for providing a convenient installation for you.

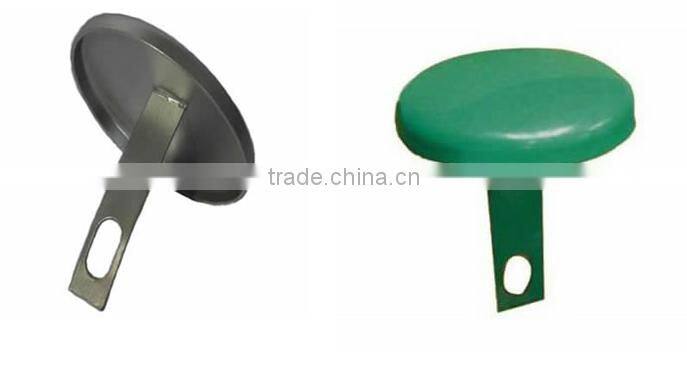

1) Caps
|
Details: Material: Q235, Q345 or other steel as your requirements Surface: hot dip galvanized or PVC coated Color: any color is available Thickness: 4mm - 5mm or as request Zinc coating thickness: 500-800g/m2 depends on your requirements Diameter: 110 - 150mm Length: as your request |
Feature: Anti-rust and anti-weathering Corrosion resistant High durability Long service life Easy to install |

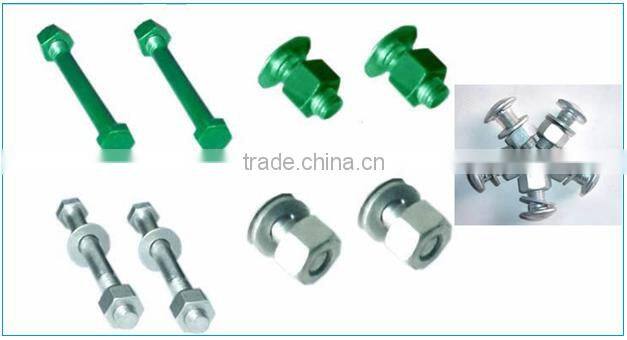

2) Bolts and nuts:
Details:
Material: Q235, Q345 or stainless steel, etc.
Surface: hot dip galvanized or PVC coated
Color: any color is available
Standard: DIN, ASTM, AS/NZS, GB, JIS or as your request
Specification: M5 - M64
Length: 40mm-460mm
Feature:
Anti-rust and water-proof
Easy to install
Competitive price with high quality
Connect guardrails to post firmly
Reusable
3) Offset blocks:

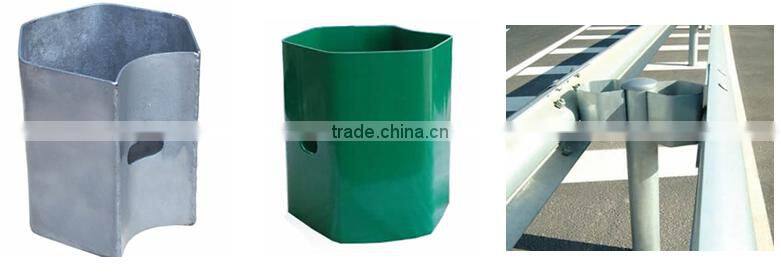

Galvanized offset block PVC coated offset block The application of guardrail offset blocks

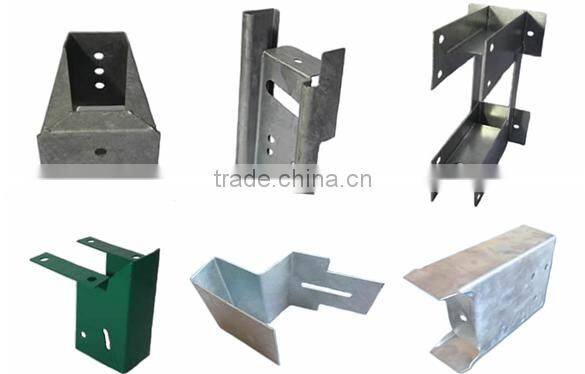

Other types of offset blocks:
Details:
Material: Q235, Q345 or other standard steel, etc.
Surface: hot dip galvanized or PVC coated
Color: any color is available
Thickness: 3mm-8mm or as request
Feature:
Anti-rust and water-proof
Easy to install
Act as connecting part between guardrails and round post
Anti-aging
Anti- ultraviolet,
Recyclable
Hot Products:
W beam guardrail, thrie beam guardrail, box beam guardrail, cable barrier
Why to choose us?
- High quality material: Q235, Q345, Q255, S235JR, S355JR, etc.
- Superior surface treatment: PVC coating or zinc coating
- Strict quality management: the whole manufacturing process is under strict quality control and all our products are subjected to rigorous testing.
- Various applications: It has been widely used in roadways, highways, especially curves and slopes, parking lots, dead end streets, etc.
We offer a full range of products to meet most highway barrier requirements, including W-beam, box beam, Thrie-beam, cable barrier and bridge rail.
From complete roadside barrier systems to individual custom fabricated parts, Nova is capable and ready to supply the parts you need.
