Nanyang manufacturer directly supplying latest and hot cleaning air continuous medlar mesh belt dryer
1. Brief introduction of medlar mesh belt dryer
The fruit and vegetable dryer is a kind of drying equipment that through electrical heating, steam heating and natural gas heating in taking advantage of steel mesh as transmission band to carry materials for continuous drying. Directly deliver the suppressed finished product ball to table conveyor through conveyor, evenly distribute the finished product ball in dryer through scraper blade located in the upper point of table conveyor in order to increase air permeability of ball and achieve drying.
The dryer can be also customized as your special needs.
2.Working principle of medlar mesh belt dryer
DW series fruit and vegetable dryer is a continuous convective drying processor of which the drying of product takes place on ventilated conveyor belts.

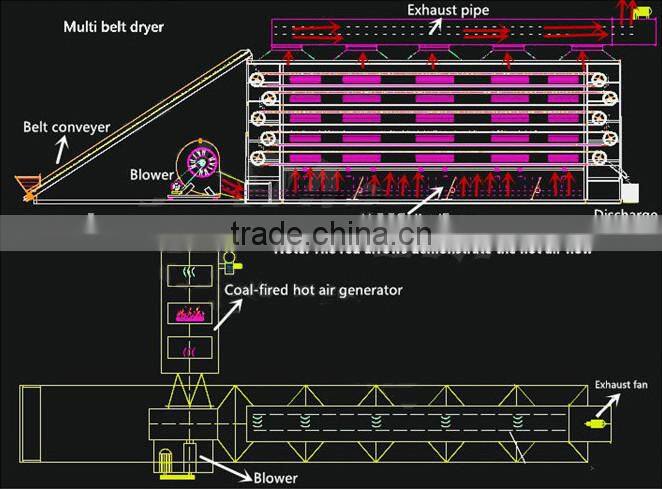

After wet material is evenly fed onto the top layer of drying belt via the belt conveyor feeding system, the moving drying belt transports the wet material to the other end an drop onto the beneath layer of drying belt. The beneath drying belt then transports the wet material and moves in opposite direction until dropping onto the third layer of drying belt. At the same time, hot air is evenly blown into the dryer via the bottom air distributor. With the help of exhaust fan, the hot air penetrates the wet material on each layer of drying belt for heat transfer and take away the evaporated moisture. When wet material reaches the bottom drying belt, it is dried for discharging.
3. Features of medlar mesh belt dryer
a. Hot air go through material layer from bottom to top and from top to bottom, it increases the contact area of material and hot air and also the drying intensity.
b. We adopt unique internal air blowing device. It not only increases the relative speed of material and hot air and drying intensity but also the uniform drying of materials.
c. It is fully enclosed structure. There is no outer air pipes except the dehumidifying air pipe, thus the materials won’t be polluted and the heat efficiency and working condition are improved.
d. It is easy to contact with all parts inside the main machine, so it's easy for cleaning.
e. The belt speed can be controlled easily to guarantee the final moisture of products.
f. Easy to assemble, after assembling the conveyor elevator the machines can be working.
4. Main technical data of medlar mesh belt dryer
a.
Model |
NYWD-10 |
NYWD-12 |
NYWD-15 |
NYWD-18 |
NYWD-20 |
Unit numbers |
5 |
5 |
5-7 |
5-10 |
5-10 |
Mesh belt width(mm) |
800 |
1000 |
1200 |
1500 |
1800 |
Mesh belt layer |
1-5 |
1-5 |
1-5 |
1-5 |
1-5 |
Drying length(m) |
10-50 |
10-50 |
10-50 |
10-50 |
10-50 |
Spreading materials thickness(mm) |
10-120 |
10-120 |
10-120 |
10-120 |
10-120 |
Capacity(kg) |
100-800 |
500-2000 |
800-2500 |
1000-4000 |
2000-8000 |
Drying temperature(℃) |
55-300 |
55-300 |
55-300 |
55-300 |
55-300 |
Drying time(h) |
0.25-1.2 |
0.25-1.2 |
0.25-1.2 |
0.25-1.2 |
0.25-1.2 |
Fan power |
11 |
15 |
22 |
37 |
45 |
Box dimension(m) |
10×1 |
10×1.2 |
10×1.5 |
10×1.8 |
10×2 |
Note |
Every unit is 2m. |
||||
or We can produce any size any layers according to your request
b. Chain type:
Net mesh chain belt dryer
Chain board belt dryer
Teflon belt dryer
We can produce any type according to your request
c. Material:stainless steel, carbon steel
d. One elevator equipment outside the machine
e. Heating source: electricity, Coal, coal gas, oil, natural gas, steam etc
f. Thickness of the material to be covered : 10-80mm
g. Temperature : 50-150°C
h. Delivery time: 10-20 days after payment
5.Technical advantages of medlar mesh belt dryer
1. Wide applications: Multi belt dryer is specially designed for drying those wet material which need long residence time. The residence time of this DW multi belt dryer is adjustable from 30 minutes to 90 minutes based on the required drying technique.
2. Energy-saving: The five-layer drying belts are completely installed inside a well insulated drying chamber which can considerably reduce heat loss. The hot air is blown into the belt dryer from the bottom and then penetrates through each layer of wet material which can enhance heat transfer and reduce heat loss in exhaust gas.
3. Uniform drying: The drying chamber has five drying zones and the specially designed air distributor can make sure uniform air flow in each drying zone to guarantee uniform drying.
4. Easy operation and maintenance: The whole drying system is highly automatic. The simple but practical design (The dryer only use one blower and exhaust fan) can not only reduce production cost but also the maintenance and repair cost.

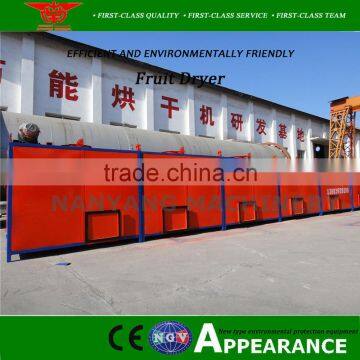

6.The pictures of medlar mesh belt dryer

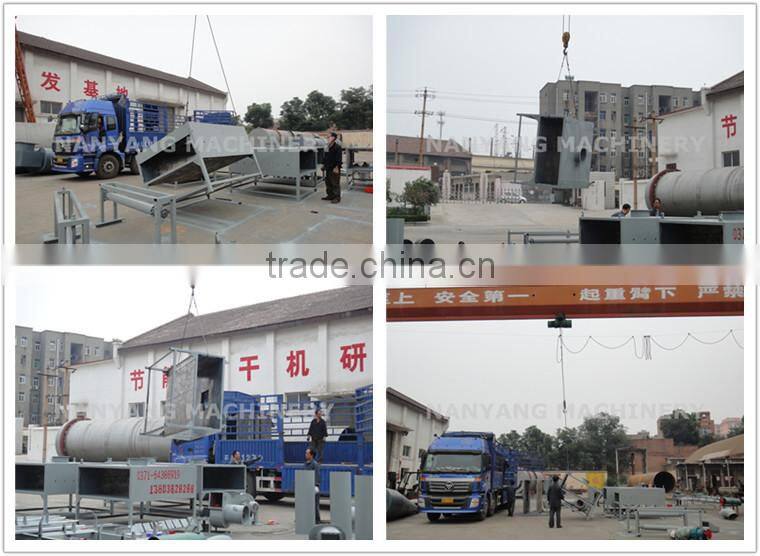

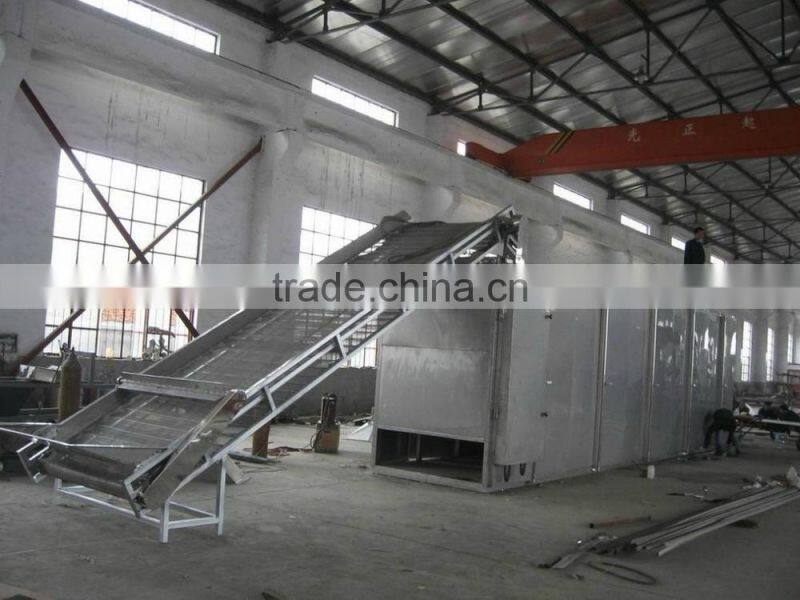

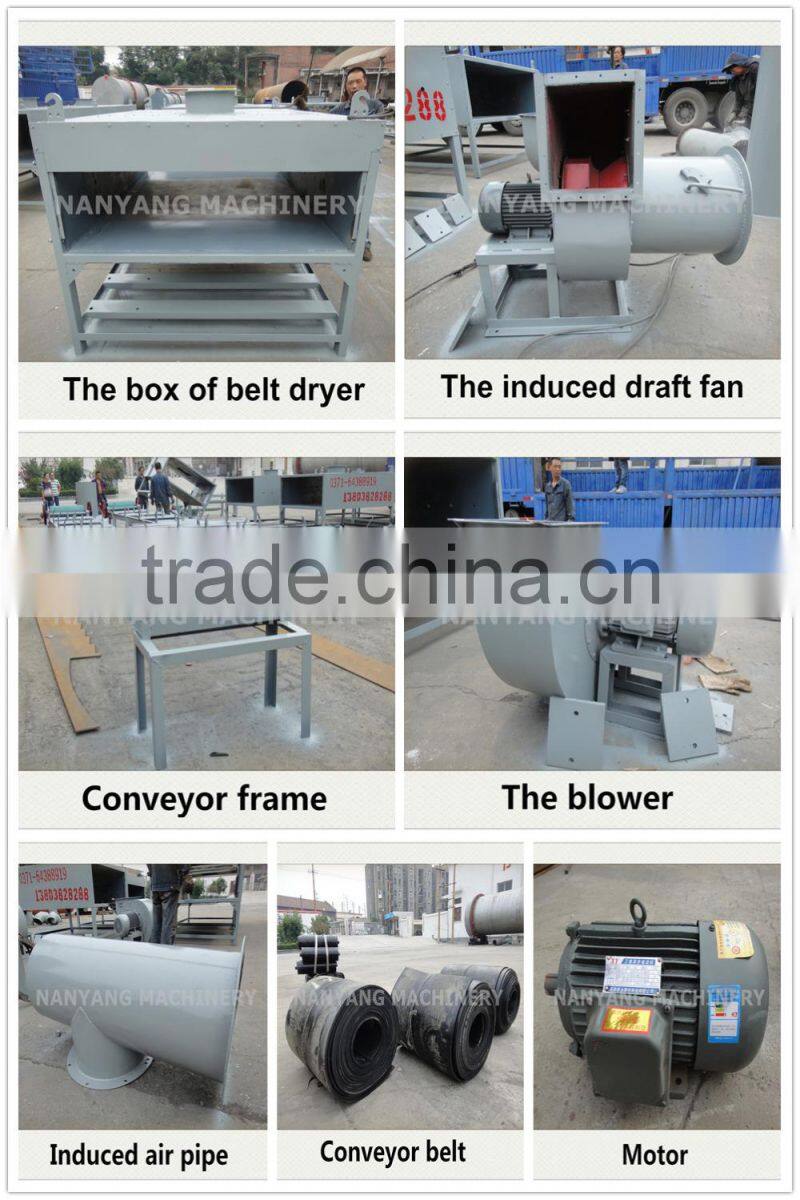

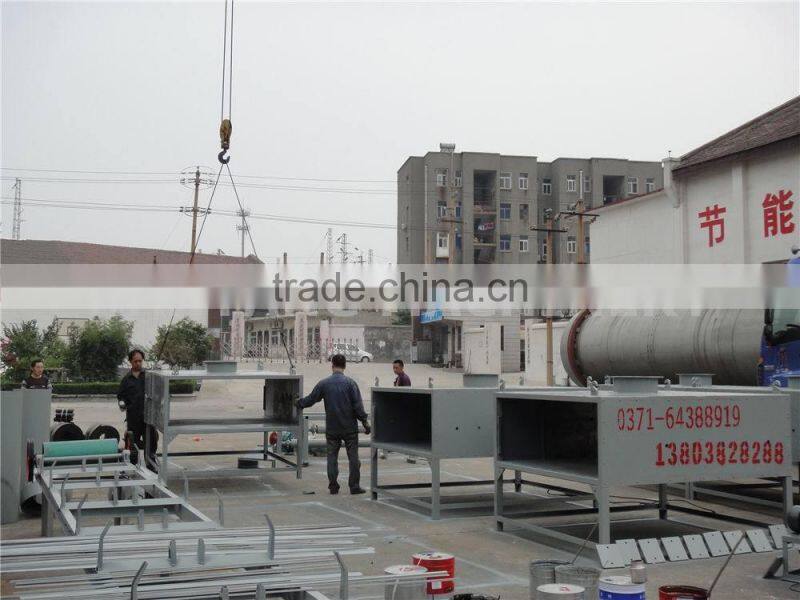

The dryer is be mading in our workshop

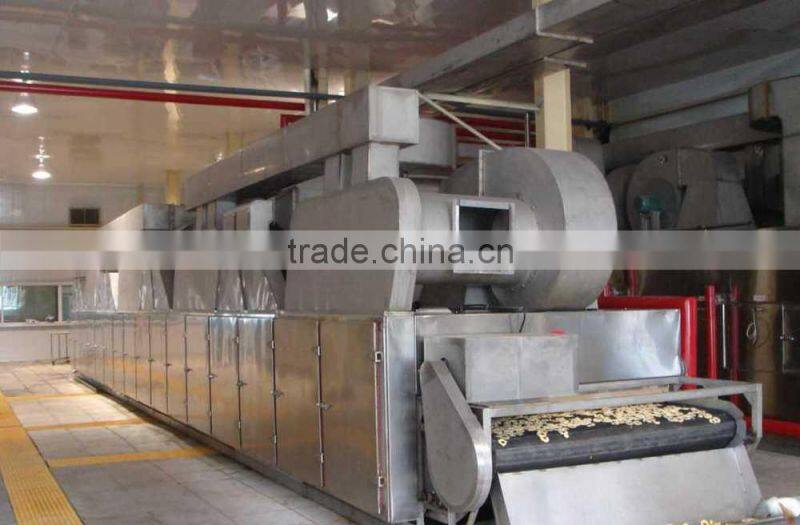

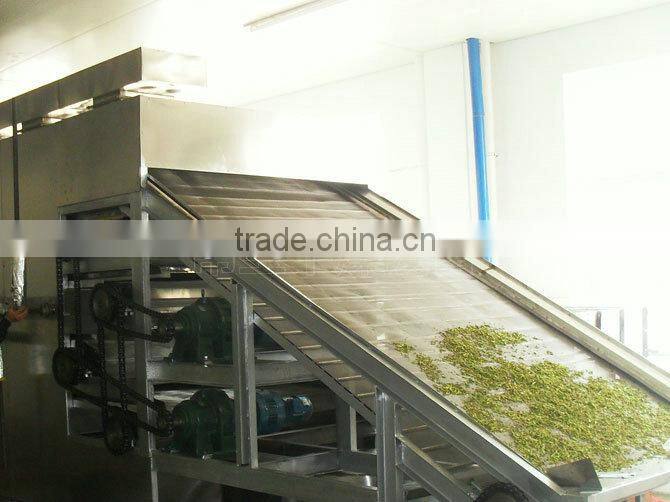

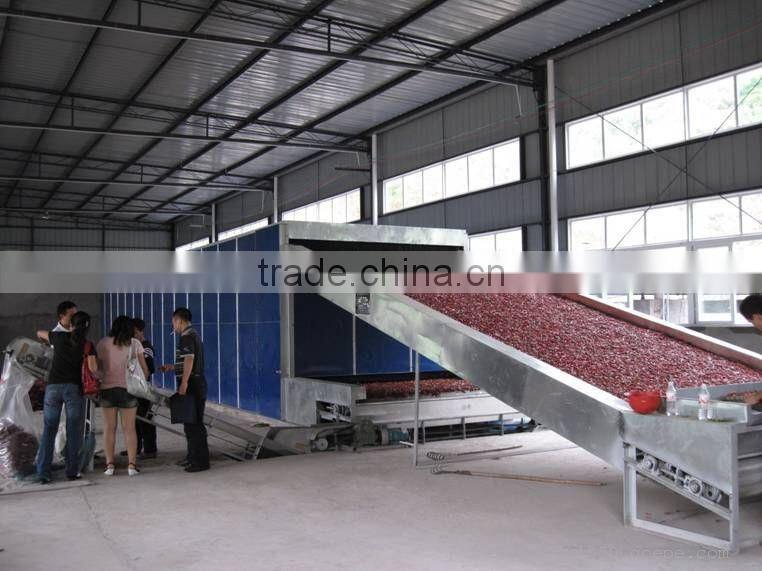

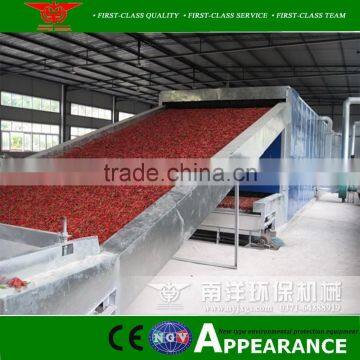

The dryer is dryin pepper, tea-leaf and banana,rice

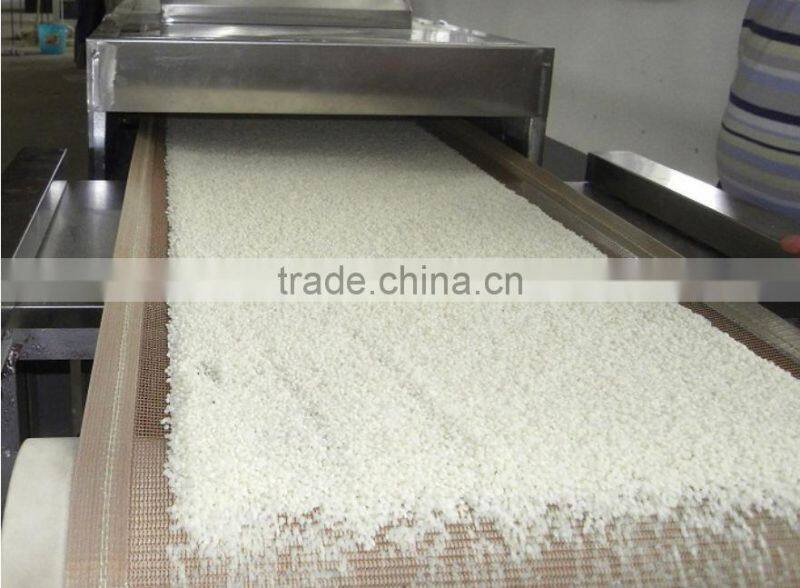

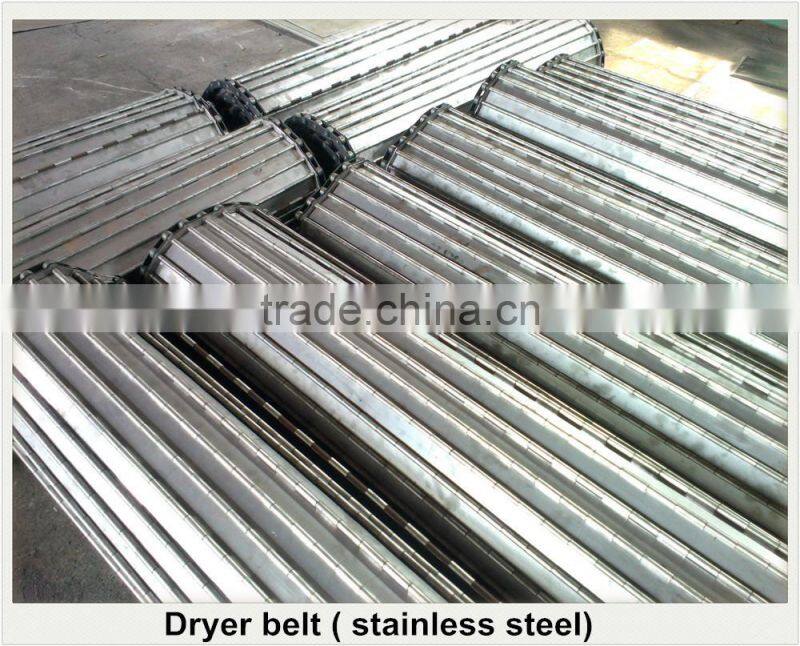

The conveyor belt in the dryer
7.Materials of medlar mesh belt dryer can dry:
Tea-leaf, mushrooms and nuts
Vegetables
Fruits
Standard Container or As Your Options.Export Standard Container. Nude the main body of the machine motors and other small spare parts are packaged in wooden cases or as your requirement.
1).If any interest in our plum drying machine, please feel free to contact we and let us know your requirement on capacity and material size. We will try our best to slove your problem in time and perfectly.
2).We are professional machine manufacturer, we will help to choose the most suitable machine for you.
3).Whole plant design and drawings are free after ordering.
4).Quality Commitment: 1 year guarantee and Supply wearing parts with favorable price and long term after-sales service.
5).If you need, we will dispatch professional engineer for installation, worker training and track service
Nanyang Machinery is a professional company in making dryer equipments. The long-standing culture of Nanyang Machinery is “making environmental dryer equipment with high quality”.And now we have invented a series of efficiently and environmentally dryers.
1.Question: How long can you guarantee your fruit and vegetable dryer and their parts?
Answer: We promise to repair, change or withdraw our products and their parts for free within a year if their are some quality issues. After one year, we also can provide technical and other supports during the whole life of our products whenever you need.
2.Question: How about your company strength?
Answer: We have accumulated nearly three decades of experience in producing and sales on dryer equipments,which helps us to through a number of national certifications and occupy so many markets that not only domestic but also international.
3.Question: What's your biggest advantage?
Answer: Obviously, it is professional and dedicated.
