Raw matetrial suitable for press biomass briquette
1) Any type of Agro-forestry waste can be used. But the Moisture Content Should be Less than 12%, grain size is below 5×5mm.
2) For example: Sawdust ,Coffee Husk ,Paddy Straw ,Sunflower Stalk, Cotton Stalks ,Tobacco waste ,Mustard Stalk, Jute waste ,Bamboo Dust ,Tea waste ,Wheat Straw ,Palm husk ,Soybeans husk ,Rice Husks Forestry wastes ,Wood Chips and many other Agro wastes.
Moisture: 8-12%,
Size: 3mm ~ 5mm

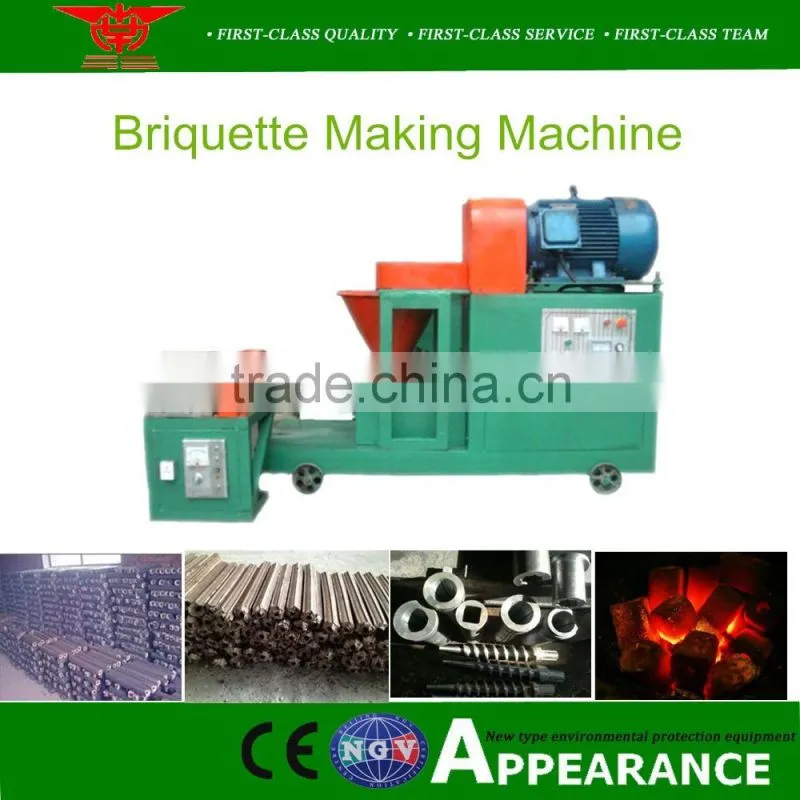

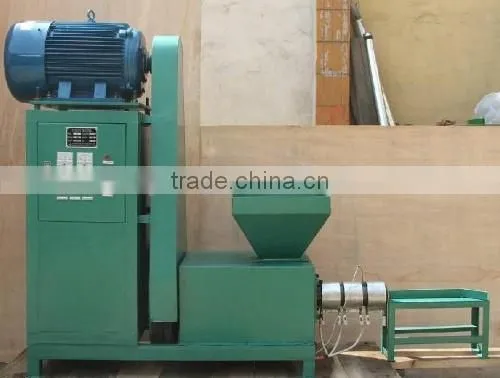

Introduce of Biomass Briquette Making Machine

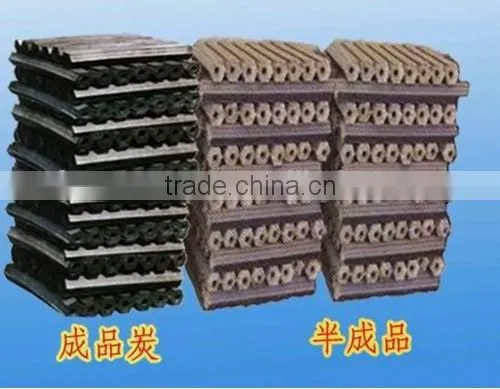

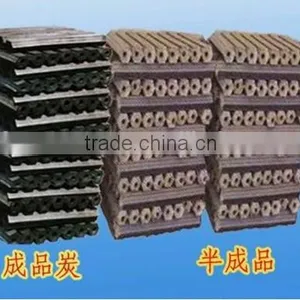

Our biomass briquette machine uses a large screw to grind, compress and extrude the biomass into briquettes. The natural lignin content in biomass is liberated with wood fiber under high pressure and temperature. In the briquetting process lignin serves as the glue and combines the particles of wood together, thus binding, compressing the biomass to form into various model of high density briquette, such as hexagonal, quadrangular, square, etc. During this process, non-binder needs to be used
Working Principle of Biomass Briquette Making Machine
Briquetting is a process that biomass is compressed under high pressure and high temperature. The machine uses a large screw to grind the biomass into briquettes that are of uniform composition.
The self bonding of biomass to form a briquette involves the thermo-plastic flow of the biomass. The lignin content that occurs naturally in biomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, thus binding,compressing the biomss to form into high density briquettes. During this process, no binder need to be used. So the ouput briquette is a type of clean and green fuel that is ideal for use in furnaces, boilers and open fires. The density of the briquettes is 1300kg/CBM.
Features of Biomass Briquette Making Machine
1.No binder or noxious chemical need to use.
2.The humidity of the raw materials is controlled in 8-12%.
3.Using the advanced Hot air drying system with the perfect performance.
4.After the processing of High temperature, purification, smoke removing, the carbonizing equipment
transforms the semi-finished bio-fuel briquette into a smoke-free, tasteless, non-toxic cleaning carbon.
Technical Parameters
Model |
ZBJ-I |
ZBJ-II |
ZBJ-III |
Output( kg/h) |
120-150kg |
120-150kg |
250-300kg |
Motor Power (kw) |
15kw |
11kw |
22kw |
Net/Gross Weight(kg) |
540/590kg |
650/700kg |
1080/1180kg |
Overall dimension(m) |
1.8X0.76X1.29 |
1.8X0.76X1.29 |
2.02X0.87X1.5 |
Diameter of finished products (mm) |
30,40, 50mm |
30,40,50mm |
60,70,80,90mm |
PS:Diesel Engine Biomass Briquette Machine can be Supply
