Animal Goat Feed Pellet Making Machine ( 0086 13721419972)
US$ 8,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Amisy
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini Feed Pellet Mill For Animal Feed / Mini Sawdust Pellet Mill (0086-13721419972)US$ 90,000 - 100,000MOQ: 1 Set -
Animal Poultry Feed Pellet Sifter (0086 13721419972)US$ 8,500 - 15,000MOQ: 1 Set
-
Floating Fish Feed Pellet Machine 0086-13721419972US$ 30,000 - 200,000MOQ: 1 Set
-
Dry Feed Pellet Mill / Horse Feed Pellet Machine (0086-13721419972)US$ 800 - 6,000MOQ: 1 Set
-
Aqua Aniaml Feed Pelletizer ( 0086-13721419972)US$ 35,000 - 400,000MOQ: 1 Set
Condition
New
Place of Origin
Henan, China
Brand Name
Amisy
Model Number
SZLH420-16
Type
Other, Feed Pellet Machine, Goat Feed Pellet Making Machine
Voltage
380V,50HZ, 3phase
Power(W)
110kw
Dimension(L*W*H)
3000x1500x2500mm
Weight
3000 kg
Certification
CE / ISO 9001
Warranty
18 months
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Goat Feed Pellet Making Machine1.capacity:3-10t/h
2.size:2-8mm Goat Feed Pellet Making Machine
3.22-185kw ring die pellet
1. Goat Feed Pellet Making Machine specification:
- This series pellet mill suitable for making all kinds of animal feedstuff. Which capacity 1000-400000 kg for feed factory .
- The machines can be match different size of ring die hole size , such as φ1.0,φ1.2,φ1.5,φ2.0,φ2.5,φ3.0,φ3.5,φ4.0,φ4.5,φ5.0,φ6.0,φ8.0 , always for making shrimp, fish feed to use for φ1.0--3.5 ring die ; chicken feed for φ3.0; Swine feed for φ3.0--4.5; Cattle, horse for φ6.0--8.0).
- The machine adopt imported SKF or NSK bearings, the motor brand is Siemens or china famous Wannan brand .
- Driven by gear .more strong than by belt, and the capacity 10% higher than by belt .
- the machine also matched the safty equipment , once overload , the safty pin will crack, to protecting the machine lifetime .
2. Goat Feed Pellet Making Machine Main Data:
| Model | SZLH320 | SZLH350 | SZLH400 | SZLH420 | SZLH508 |
| Capacity | 2-5T/H | 1.5-8T/H | 2-10T/H | 3-12T/H | 4-20T/H |
| Main Motor Power | 37KW | 55KW | 75/90KW | 110KW | 132/160KW |
| Screw Feeder Power | 0.55KW | 0.75KW | 0.75KW | 1.5KW | 1.5KW |
| Conditioner Power | 2.2KW | 2.2KW | 2.2KW | 5.5KW | 7.5KW |
| Ring die inner diameter | 320mm | 350mm | 400mm | 420mm | 508mm |
| Ring die rotational speed | 305PRM | 336PRM | 307PRM | 287PRM | 287PRM |
| Roller outer diameter | 140mm | 165mm | 190mm | 206mm | / |
| Dimension | 2300*1000*2100 mm | 3200*1100*1700 mm | 3200*1300*1900 mm | 3500*1300*2800 mm | 3500*1500*2900 mm |

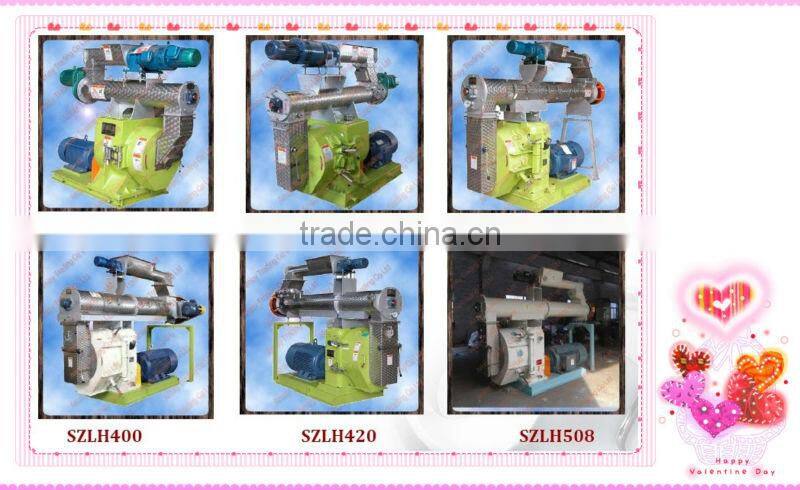

3.Feed Pellet Machine Photos:
4. Delivery photos:

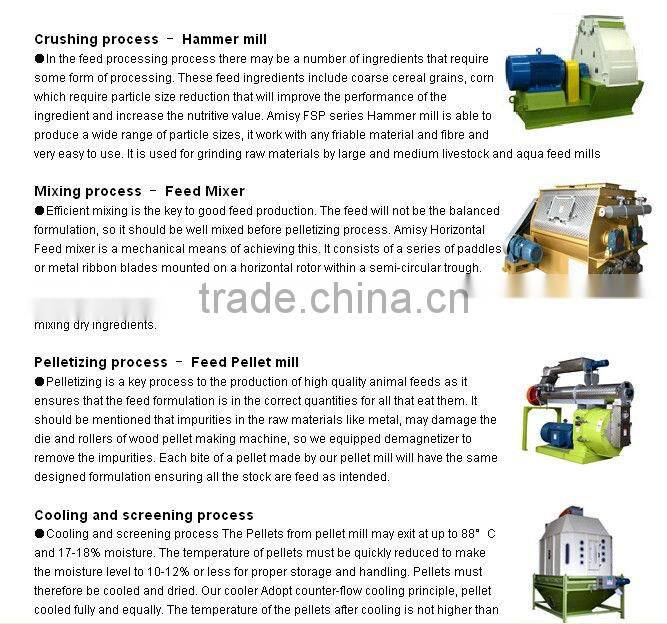

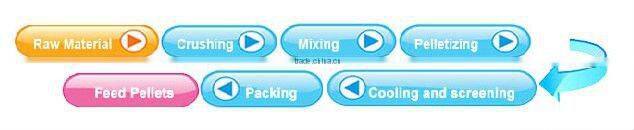

Feed Pellet Line Flow Chart :
Raw Materials :
Final pellets sample:
Customer site photos:
To know more, please contact winni
Cell:0086-13721419972
