5T/H Full Automatic Batch Weighing Turnkey Project Building Animal Feed Plant



5T/H Full Automatic Batch Turnkey Project Building Animal Feed Plant (0086-13721419972)



Benefit of feed pelletizing:

Pelletizing operations are not without cost, but the cost is more valuable in improved plant profit as well as animal performance.

There are many reasons used to justify the good market and customer expectations of feed pelletizing, but it may be appropriate to list just a few:
1. Improved animal performance
2. Decreased feed wastage
3. Reduced selective feeding
4. Improved bulk density
5. Better material handling characteristics
6. Destruction of deleterious organisms





Turnkey Project Building Animal Feed Plant

5T/H Full Automatic Batch Turnkey Project Building Animal Feed Plant (0086-13721419972)

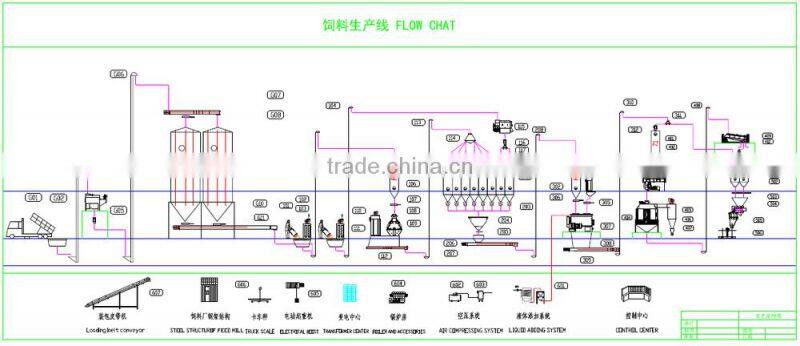

             5T/H FULL AUTOMATIC ANIMAL FEED PLANT FLOW CHART ( With Two 150T Silo)







Turnkey Project Building Animal Feed Plant Main Process



♥Crushing process – Hammer mill ( Make Raw Materials into Powder )

 Model: SDH-ZW29C

1)Diameter of grinding rotor :1120mm

2)Rotating speed 1480rpm

3)Hammer tip Linear Speed 86.5 m/s

4)Hammers Number 48

6)Gap Between hammer and screen 10mm

7)Hammer Width 290mm

8)Hammer Thickness 6mm

9)Screen Hole Size 3mm

10)Capacity 5-6t/h

Note:The capacity is based on φ3.0mm ,corn ,moisture ≤3%



MORE DETAILS HAMMER MILL, PLS CLICK HERE



♥Mixing process – Feed Mixer ( Mixing Raw Materials)

  1. It has high mixing speed and short mixing period. Mixing speed is 60-90 seconds / batch.
  2. Mixing homogeneity is high, reaching 95%(i.e. CV is less than 5%). Besides, segregation won’t happen.
  3. Mixing capacity is variable with large effective volume.
  4. The bottom-type electric or pneumatic discharging system can assure fast material discharging and less residue wit door shaft chain mechanism.
  5. The equipment of return air inlet can help avoid powder leakage, which fully meets the requirement of environmental protection.
  6. Coefficient of Variation ≤5%
  7.  Mixing period: 60-90s
  8.  Effective Volumn 1M3
  9. Number of Nozzles (Each set) 4
  10. Number of Cylinder on the discharging door :2

MORE DETAILS MIXER, PLS CLICK HERE

♥Pelletizing process – Feed Pellet mill

Power:55kw Diameter:350mm

1).Stainless steel shell with inspection doors

2) one shafts with paddles

3) Steam adding inlets

4)Casing Steel type: Stainless steel

5)Paddles material Stainless steel

6)Conditioning time 10-25S adjustable

7)Moisture after conditioning (suggested) 14~16%



MORE DETAILS OF FEED PELLET MILL, PLS CLICK HERE

♥Cooling and screening process

  1. This machine adopts the counter flow cooling principle to cool down pellets with high temperature and high moisture content. This cooling method can avoid the sudden cooling because of the direct contact between the cold air and materials, which will prevent the surface cracking of the pellets.
  2. The latest design of octagonal cooling chamber has no dead angle.
  3. Feeding via airlock has large wind area and remarkable cooling effect.
  4. The reciprocating slide valve discharging mechanism is stable and reliable in working and guarantee less residue.
  5. Low energy consumption and easy operation.
  6. The temperature of cooled products is not 3℃~5℃ higher than room temperature, which is suitable for cooling granule materials.

MODE DETAILS OF PELLET COOLER, PLS CLICK



♥Packing process

  1. Adopted with double-speed motor belt feeding mechanism, it is applicable to a wide range of materials including the weighing and packing of pellets and powdery materials.
  2. Bucket weighing and reasonable return air structure makes compact structure, easy installation and reduced dust.
  3. The weighing control instrument is fully digital and intelligent, which ensures high weighing accuracy, fast speed and simple operation.
  4. The instrument has a variety of functions, including auto tare, zero tracking, tolerance alarm, communication, gross weight weighing, net weight weighing, bag number accumulation, etc.
  5. Weighing range:15-50KG
  6. Weighing accuracy:Static  ±0.1% Dynamic   ±0.2%

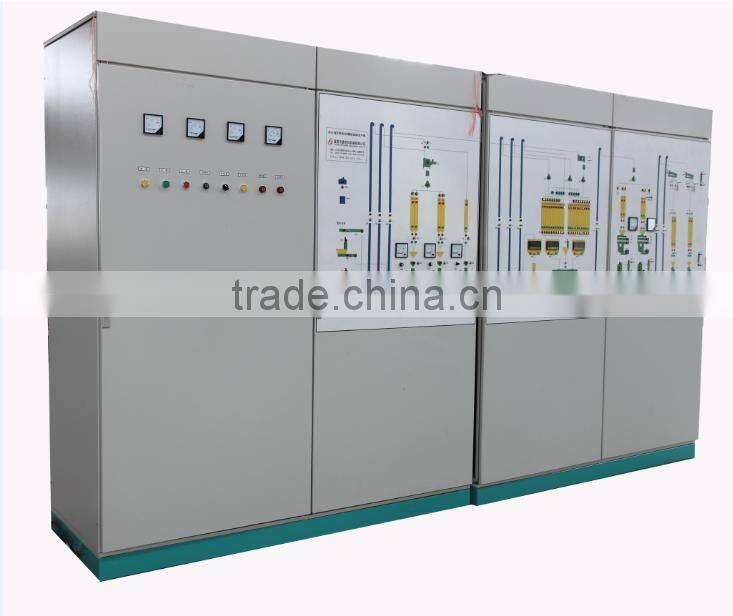

♥PLC controlling

All the process above will be controlled and monitored by our advanced computer controlling system. The control center is collected in accordance with the actual value and the current settings for contrast, which will ensure the stability of the whole processing in order to give full play to the pellet plant production capacity and to prevent plugging.





 BUILD FACTORY AT CUSTOMER FACTORY



Capacity Of Animal Feed Line We Can Supply



  • 500-1000KG/H
  • 1-2T/H
  • 2-3T/H
  • 3-5T/H
  • 5-7T/H
  • 8-10T/H
  • 10-15T/H
  • 15-20T/H

Please choose which capacity meet your requirement .

then we will design and make the details quotation sheet for you.




Our Turnkey Project Customer Factory







To Know More Complete Animal Feed Line Turnkey Project, please contact winni

Cell:0086-13721419972
