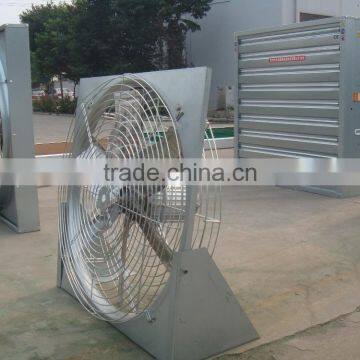

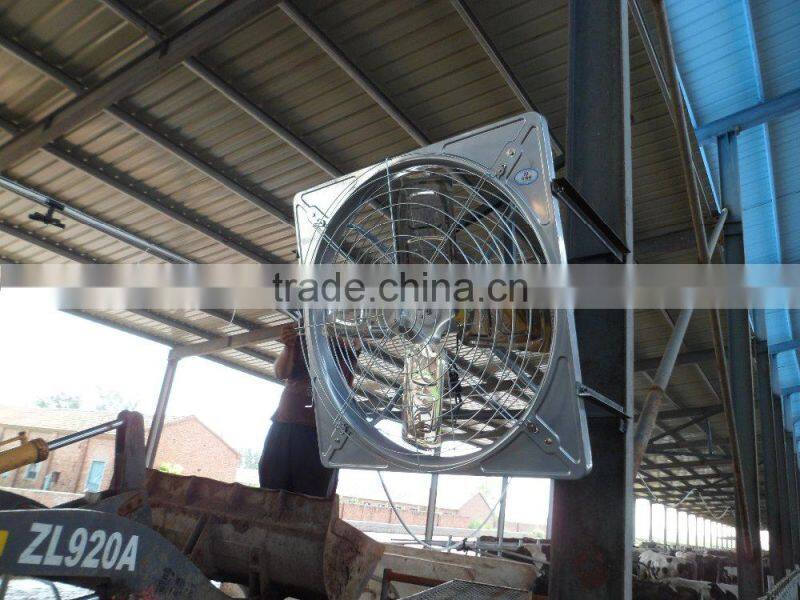

Help CenterLow Noise Hang Cow House Exhaust Fan/ventilation Fan
Related Products
-
Agricultural Cowhouse Fan With CEUS$ 170 - 200MOQ: 1 Set -
Driect Drive Type/belt Type Cowhouse FanUS$ 170 - 200MOQ: 1 Set
-
High Quality Livestocks Cooling Systerm From China Cow House Exhaust FanUS$ 150 - 180MOQ: 1 Set
-
Livestock/poultry House Direct Drive Type Cowhouse FanUS$ 150 - 180MOQ: 10 Sets
-
36'Exhaust Fan for Cow HouseUS$ 180 - 180MOQ: 1 Piece
Specifications
1.With CE, CCC, ISO9001 certificate
2.Admired by Agriculture Ministry
3.Seven strick quality test
4.Durable belt and bearing

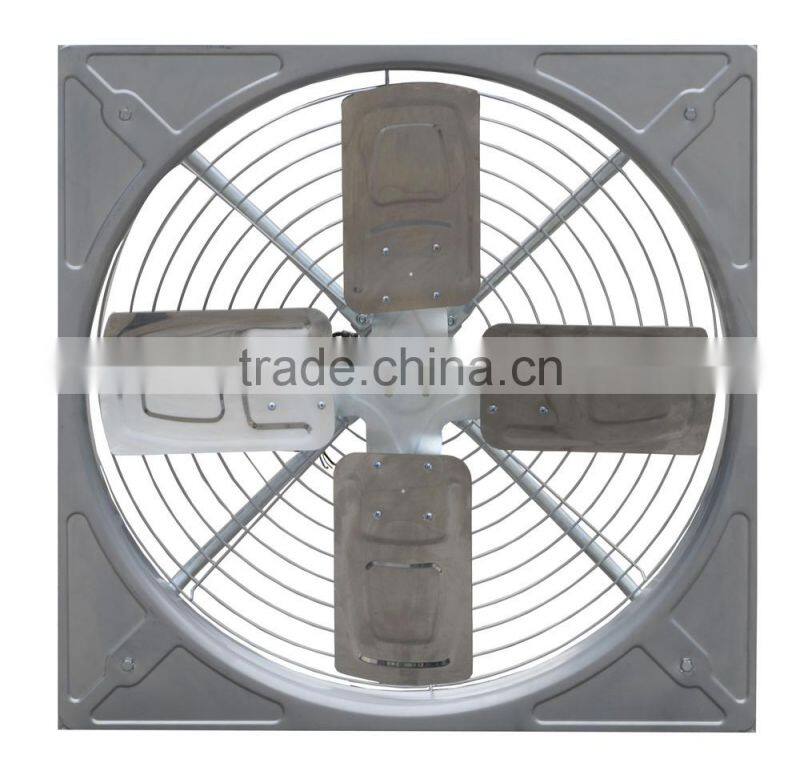

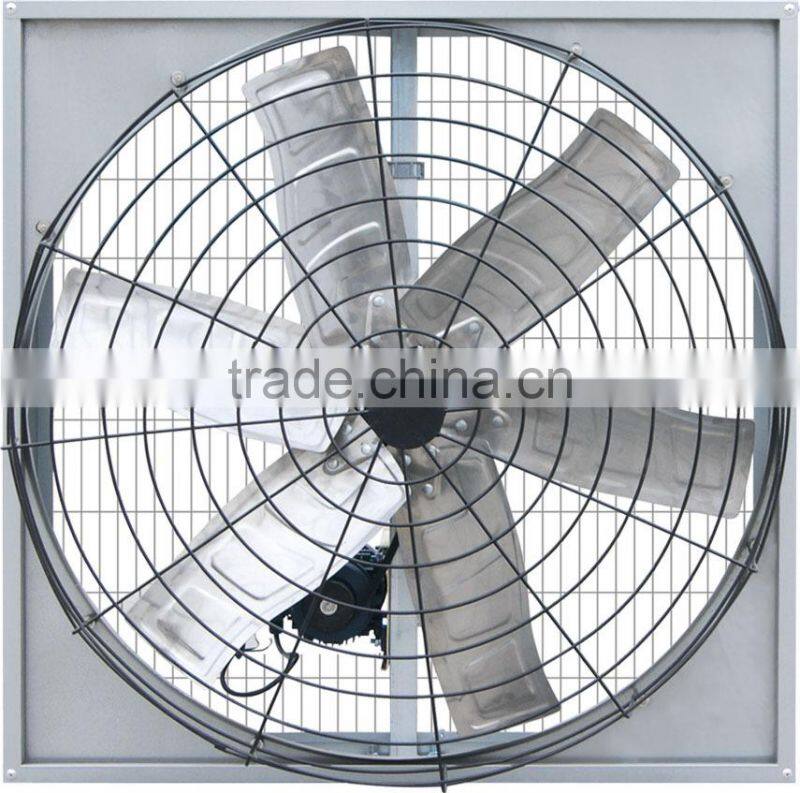

Cowhouse fan
Features :
1. The outline border adopts advanced automatic process, more accuracy. Material is national level one thicker galvanized zinc plank, corrosion resistance and double service time.
2.The motor is threephase asynchronous Europe industrial standard motor
3.The bearing adopt imported Automobile dedication bearing, more durable.
4.The hub was made of aviation aluminum magnesium alloy, light weight, high strength and good tensile
5.The type B belt is imported from Korea, wider, thicker and 35% durable than type A widely used in this line.
6. The stainless steel blade was made in one time punch, the figure's angle is reasonable, small noise and big wind capacity
7.Shutter adopt specialpush pull device, ensure to open and close completely, so shutter is windproof, rainproof and dust proof.
8.Energy saving and environment friendly, customized design, maintenance and disassembly is convenient
9.The seven strict quality inspection, vibration test, concentric performance test, fan blade rotation test, the efficiency test and the motor current test.
10.Special motor hole wind shield, avoid wind losing to reach the best wind suck effect
Parameters table
JFD-N cow house exhaust fan | ||||||||||
Model |
Blade diameter mm |
Fan speed r/min |
Motor speed r/min |
Air volume M³/h |
Noise db |
Power W |
Voltage V |
Height mm |
Width mm |
Thickness mm |
JFD-710FE |
710 |
560 |
>=1400 |
18000 |
<=70 |
370 |
380 |
800 |
800 |
500 |
JFD-N900FE |
900 |
560 |
>=1400 |
32000 |
<=64 |
550 |
380 |
1000 |
1000 |
500 |
JFD-N1000FE |
1000 |
560 |
>=1400 |
35000 |
<=64 |
750 |
380 |
1100 |
1100 |
500 |
JFD-N1100FE |
1100 |
505 |
>=1400 |
40000 |
<=64 |
750 |
380 |
1220 |
1220 |
500 |
JFD-N1250FE |
1250 |
420 |
>=1400 |
43000 |
<=64 |
1100 |
380 |
1380 |
1380 |
500 |
JFD-N1400FE |
1400 |
420 |
>=1400 |
55000 |
<=64 |
1500 |
380 |
1530 |
1530 |
500 |
About us
Jienuo Temperature Euipment Company is an exhaust fan and hot air generator manufacturer that was founded in 2001.Reliable quality,economical price,long life and easy installation have resulted in Jienuo exhaust fan and hot air generator becoming popular with customers from the United States,Thailand,Vietnam,Korea,Japan,India,Palkistan,Iran,Bangladesh,Kuwait,United Arab Emirates,to name a few.
