Features:

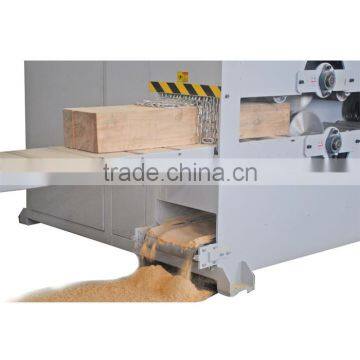

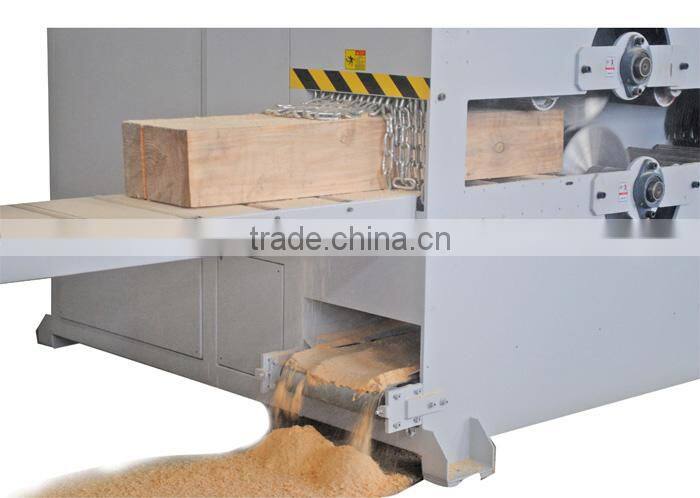

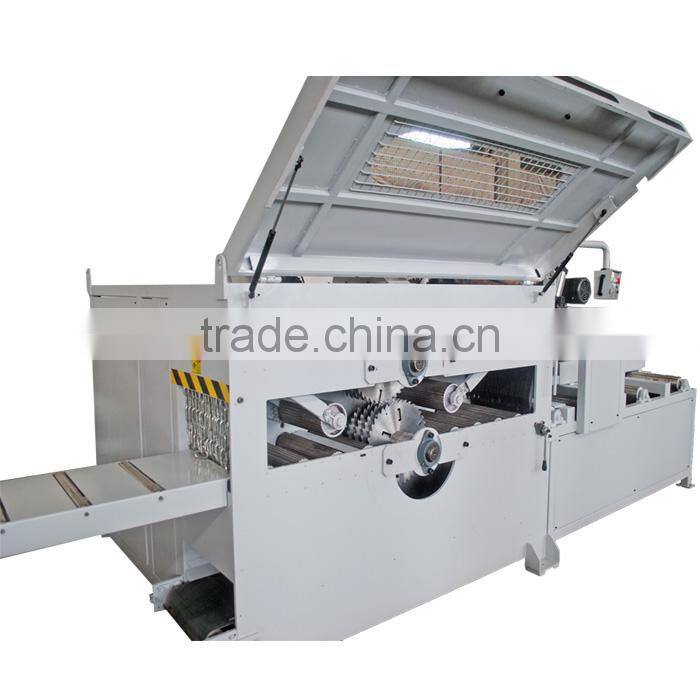

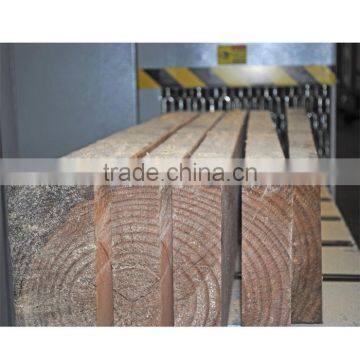

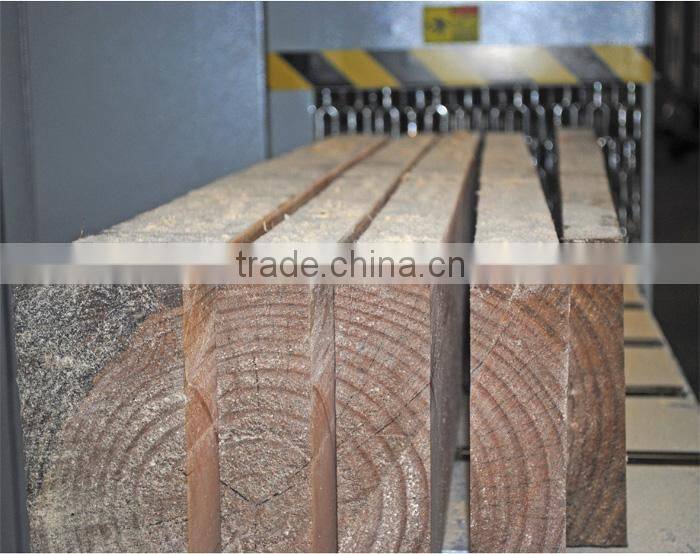

Machine designed for Plank processing, max working thickness 275mm, max working width 400mm, two bearing structure. Multi rip saw working high efficiency.
Advantages:

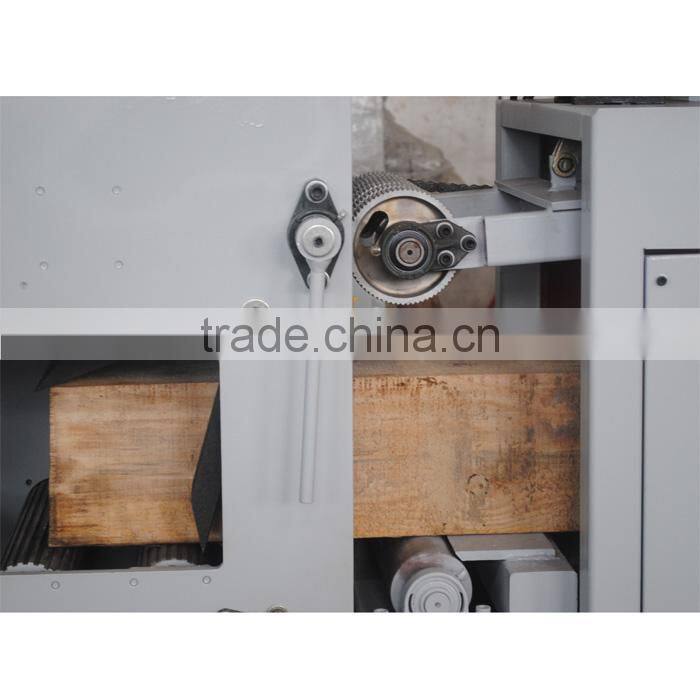

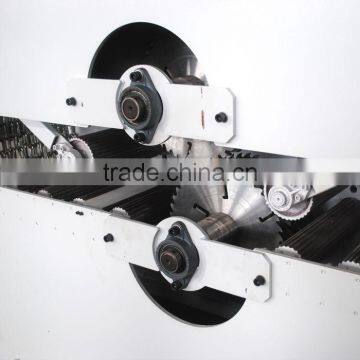

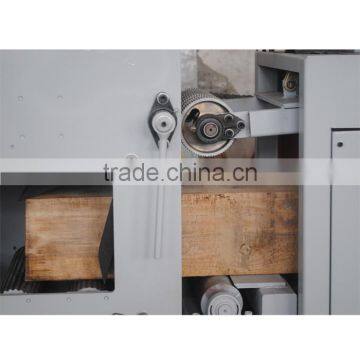

The saws structure with dual saw, through the feed rollers and pressure roller composed of feeding, pneumatic compression and electric control system, complete the multi-rip sawing wood to achieve continuous production process.
Benefit:
1.Roller device, stable feeding
2.Steel wheel feeding (with power)
3.Infrared calibration
4.Patent of axis core water spray technology
5.First company use revolving joint in China, energy efficiency and environmental protection
Application:
1.Solid wood processing factory, timber log sawmill line.
2.Company which want to lower the labors, greatly improve the speed, which want to achieve the factory automatic.
3.Who want to replace of the traditional band saw machine.
Instructions:
1.The power switch close to through to the position, this time the power indicator, the power to open.
2.Press the green light spindle START button, spindle started to spin. (note: the machine before run, to make sure the power wiring the correct sequence, namely the right to, clockwise), press the red button to STOP spindle, spindle STOP working.
3.According to the feeding pattern to choose different position, feeding mode has two patterns. Automatic feeding and manual mode
4.Backing only has the manual mode. If you want to back, the first step is to stop on the back pressure until top to the end then open travel switch back and click on the material button.
Remark:
Specification |
MJ-4025 |
Max. working width |
400mm |
Min. working width |
100mm |
Max. working height |
275mm |
Min. working height |
100mm |
Max. working length |
4000mm |
Min. working length |
800mm |
Feeding power |
4kw(5.4HP) |
Up spindle power |
55kw(74.8HP) |
Bottom spindle power |
55kw(74.8HP) |
Total power |
114kw(150HP) |
Feeding speed |
0-8m/min |
Overall dimension |
5530*2140*1590(mm) |
Saw blade specification |
405*4.0* 70*40T*6K |
Weight |
3300kg |
