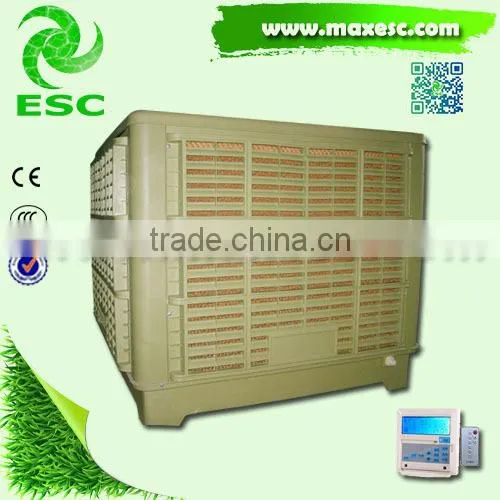

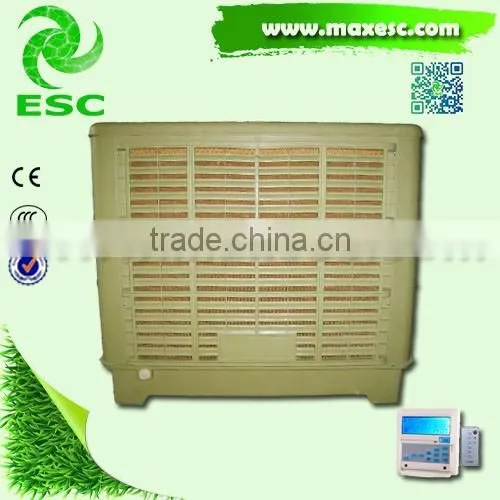

Help CenterEvap Industrial Warehouse 18000m3/h Airflow Swamp Cooler
Related Products
-
New Electrical Invention Window Mounted Desert Air Conditioner Air Cooler FanUS$ 1 - 450MOQ: 1 Piece -
Industrial 30000M3/H Huge Airflow Evaporative Air Cooling System for CoolingUS$ 1 - 750MOQ: 1 Piece
-
Commercial Outdoor Rooftop 220v Air Water Cooler Fan for FactoryUS$ 1 - 367MOQ: 1 Set
-
Industrial Wall Strong Wind Low Noise Swamp Air ConditionerUS$ 1 - 750MOQ: 1 Piece
-
Powerful Wall Window Rooftop Plastic Industrial Evaporator FanUS$ 1 - 700MOQ: 1 Piece
18000m3/h airflow swamp cooler advantages
1, Big airflow, low noise, aerofoil shaped axial fan using ABS material.
2, Corrosion resistant cabinet, UV resistant, anti-deformation, stabilized, high strength structural polymer PP.
3, Moisture and tropic proof, invertor motor, operates evenly and saves energy.
4, High efficiency cooling pads (5090)with great evaporation and easily maintain.
5, Intelligent control system provides water alarm protection, automatic circuit breaker and self-cleaning,
Sweden import thermostat, adjust temperature and humidity sensitively.
6, Controlled open water distribution system, which enables water flow smoothly.
| Model | ESC31-18T-2 | ESC12-18T-2 |
| ESC31-18D-2 | ESC12-18D-2 | |
| Airflow(m3/h) | 18000 | 18000 |
| Air Pressure (pa) | 180 | 180 |
| Output(kw)/h | 1.1 | 1.1 |
| V/Hz | 380/50 | 220~240/50~60 |
| Fan Type | Axial | Axial |
| Fan Speed | single speed | Variable-inverter |
| Water tank (Liter) | 40 | 40 |
| Cooling area(m2) | 100-150 | 100-150 |
| Dimension L*W*H(mm) | 1050*1050*920 | 1050*1050*920 |
| Out let size (mm) | 670*670 | 670*670 |
| Noise (db) | ≤73 | ≤70 |
| Net.wet(kg) | 60 | 60 |
| Controller | Remote+LCD touch screen | Remote+LCD touch screen |
| Max Current | 5A | 5A |
| Water Consumtion | 15-25L/H | 15-25L/H |
| Material | PP | PP |
| Cooling Pad Thickness mm | 100 | 100 |
| Cooling pads spec | 5090 | 5090 |
| Discharge | UP | UP |
| Down | Down | |
| Over current ,overvoltage protection | Yes | Yes |
| LCD Temp display | Yes | Yes |
| Material | Improve new PP which UV-proof,anti-aging, and resistant to deformation. |
Improve new PP which UV-proof,anti-aging, and resistant to deformation. |
| New function-exhaust air | - | exhaust out insi de smell air that circulate new air inside. |

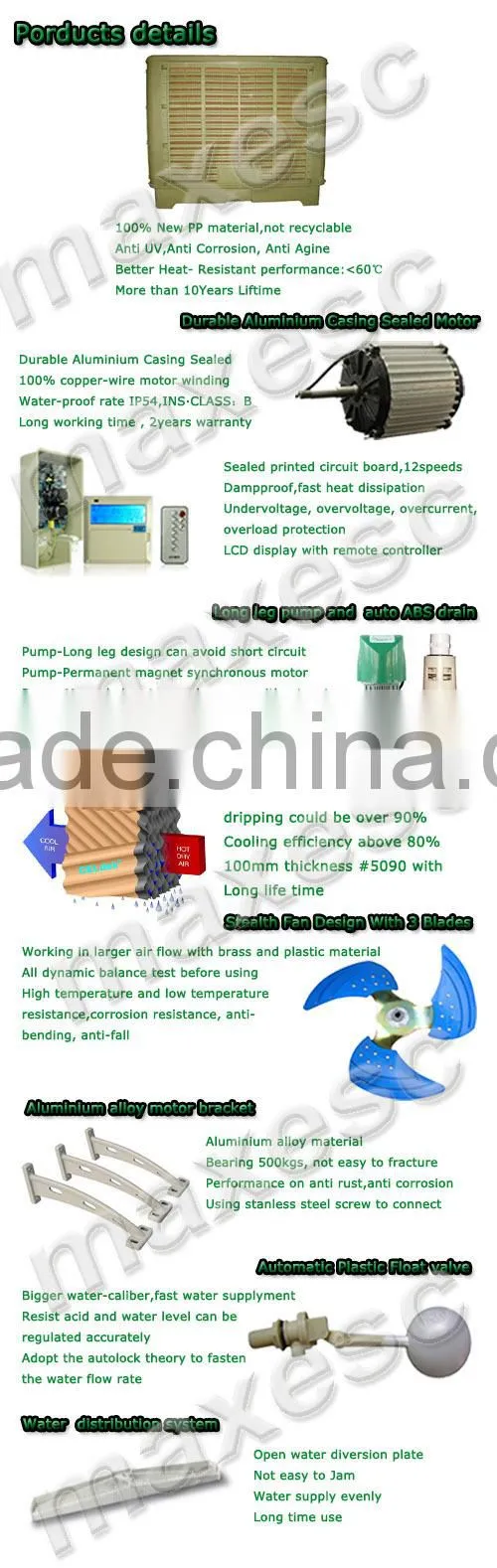

Cooler Spare Parts More Details

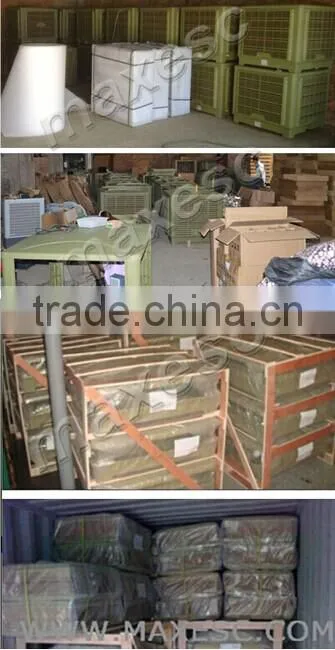

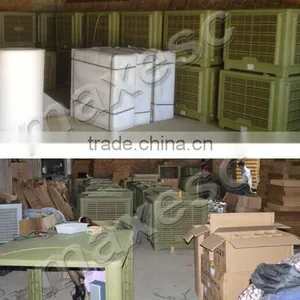

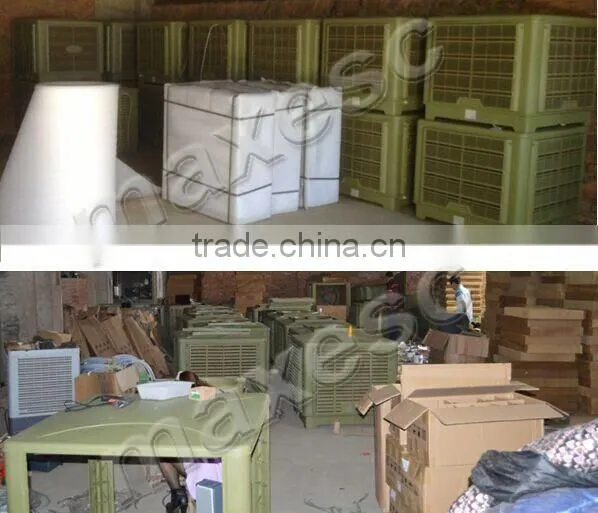

Packing And Shiping Photos
CE Certificate
FAQ
Q: Are you a trading company or a factory ?
A: We have factory with more than 10years experience.
Q: Why your price more expensive than other China suppliers ?
A: Our material we use is much better than other suppliers
1.For all axial flow fans , and screws all use good quality stainless steel , won't be rusted .
2. For plastic products we all use new material to make sure the products can be long use .
3. All our products we use China famous motor brand , the motor can 1 year guarantee ,
with a correct using , the motor life can be more than 10 years.
Q: What voltages you can do , if you can make special voltages ?
A: Almost all kinds of voltages we all can make , but for special voltages , we have a big
MOQ and maybe price will be a little higher . Our normal voltage is 380V 50HZ 3phase .
Q: Can you cheaper ?
A: We have many quality stage products for client choose , different stage price will be
different , if you really want low price we will suggest you choose lower stage product ,
in our company , we don't have bad quality products , you can reassure about the quality.
Q: I want to use our own brand , is it ok?
A: Of course it's OK , we can make OEM products and also can provide our own brand products ,
it's all by your request .
