Industrial Flake Ice Machine
Application Field for Industrial flake ice machine:
1. Aquatic product processing
2. Medium and large chain supermarket
3. Fresh preservation and cooling field application
4. Concrete cooling project
5. Medical facilities
6. Dye chemical industry
7. Mine temperature reduction
Parameter of Industrial flake ice machine:
Commercial Flake Ice Machine Technical Specifications | |||||
Model |
Capacity (tons/24h) |
Refrigeration Capacity (kw) |
Total Power |
Weight |
Dimension (L*W*H)(mm) |
TPPB0.5Z-DF/F |
0.5 |
3.05 |
2.27 KW |
160 kg |
1310*1050*1882 |
TPPB1.0Z-DF/F |
1 |
6.25 |
4.21 KW |
210 kg |
1310*1050*2055 |
TPPB1.5Z-DF/F |
1.5 |
8.15 |
5.42 KW |
330 kg |
1650*1460*2044 |
TPPB2.0Z-DF/F |
2 |
10.32 |
6.72 KW |
360 kg |
1650*1460*2076 |
TPPB2.5Z-DF/F |
2.5 |
13.12 |
8.52 KW |
390 kg |
1650*1460*2095 |
TPPB3.0Z-DF/F |
3 |
19.17 |
9.82 kW |
470 kg |
1650*1460*2186 |
Note:
1) Standard Supply Power: 380V/50Hz/3Phase. Ice machine can be customized upon non-standard power.
2) Cooling System: Air Cooling System
3) Supply Water: Fresh Water
4) Refrigerant: R22/R404a
5) Ice Thickness: 1.5~2mm
6) Standard Working Condition: Ambient temperature: 25℃; Water supply temperature: 16℃; Evaporation temperature: -20℃.
7) Applicable Working Condition: Ambient temperature: 5~40℃; Water supply temperature: 0~40℃.
8) The dimension includes flake ice machine and ice storage bin.
9) Specifications are subject to change without notice.
Features for Industrial flake ice machine:
Reasonable Design
TOPTION ice machine is with integrated structure design, and all our equipments are designed on the basis of modules, so the spot maintenance is simple by removing the old parts and install the new ones. Furthermore we always give consideration to how to conveniently move the ice machine to other places.
High Stability
TOPTION always aims at researching and manufacturing high efficient and energy-saving refrigeration system; the flake ice machine adopted international ice machine processing technology and experience, it can produce quality flake ice and constantly operate over 20,000 hours without failure.
Sanitation
TOPTION flake ice machine is made of stainless steel, pure aluminium alloy or PE material; flake ice is made inside evaporator so it is not exposed to ambient conditions, its hygiene level reaches international standards of HACCP and FDA.
Water & Energy Saving
TOPTION flake ice machine recycles all unfrozen water back to the ice machine so as to ensure all water is converted to ice and save water resources; Our unique evaporator processing technology makes it better heat exchange efficiency and saves more energy, moreover our patented internally-scraping ice scraper can help reduce energy consumption.

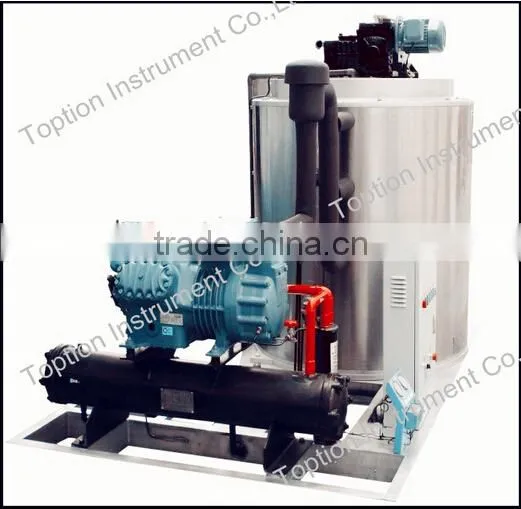

Photo of Bullet Ice Maker machine:
Service of Ice Maker machine:
We are specialized in ice machin, such as flake ice machine, bullet ice machine, block ice machine, slice ice machine.
Welecome for further discussion.
TOPTION--Your Top Option!
