24 Samples Organization Grinding Machine
Product Description for 24 Samples Organization Grinding Machine
1. This Organization Grinding Machine is a system which has special / fast / high efficient / many test tubes etc, advantages. It also could extract and purify the original DNA ,RNA and Protein from any source (including soil, plant & animal tissues /organs,bacteria,yeast and fungi,spores,paleontological specimens etc.. );
2. Comparing with the existing other sample preparation methods, YM system is widely used,high efficient and flexible. This system also could avoid the traditional methods’ disadvantages such as ultrasonic processing laborious,time consuming,inefficient etc., besides, this system could crack and purify all types samples’ nucleic acids and proteins efficient,fast and stable.
3.This product also could be named as: Many Samples Organization Grinding Machine,Fast Organization Grinding Machine,Many Samples Organization Homogenizer,Fast Samples Homogenizer system;
Applied Area for 24 Samples Organization Grinding Machine
1.Suitable for all kinds plant tissue including root / stem / leaf / flower / fruit and seeds etc. samples grinding and broken;
2. Suitable for all kinds animal tissues including the brain / heart / lung / stomach / liver / thymus / kidney / intestine / lymph node / muscle and bone etc. samples grinding and broken;
3. Suitable for fungal / bacterial samples grinding and broken;
4. Suitable for food and medicine composition analysis test grinding and broken;
5. Suitable for volatile samples grinding and broken such as coal / oil shale / wax products etc,.
6. Suitable for plastics / polymers including PE / PS / textiles and resin etc. samples grinding and broken;
7. Fast and efficient extract the plant and animal tissue DNA / RNA / protein;
8. Fast and efficient frozen grinding and oscillation blending;
9. Fast and efficient wall-breaking and cracking the bacteria & yeast cell samples, even don’t need 1 min;
10. Faster and more efficient the food & feed grinding homogenization and homogeneous;
11. Faster and more efficient mineral and ore samples grinding and homogeneous, could up to 100 nanometers;
12. Faster and more efficient the physical and chemical analysis (atomic absorption,X-ray fluorescence) and third generation sequencing augmentation samples preparation;
Advantages for 24 Samples Organization Grinding Machine
YM system grinding machine is special up-down shaking mode, by grinding beads (zor2 / steel ball / glass beads / ceramic beads) with high frequency reciprocating vibration,impact,shear to achieve the purpose rapidly. This method make the grinding samples being more fully,more uniform,better repeatability and there’s no cross contamination between samples.
1.Large operating quantity and good effect;
This machine could finish grinding 2*24,2*48,4*96 samples in 1 minute. Saving time and labors,small difference between batches or in batch. The extracting protein is higher than live, fragment of nucleic acid is longer;
2.There’s no cross contamination
Sample tube is in a closed state in the crushing process, could use disposable centrifuge tube and beads. The sample is retained in the tube completely so could avoid cross contamination between samples and also the outside pollution;
3.Operate simply
Built-in program controller can set the milling time and the vibration frequency of rotor parameters; Humanized operation interface;
4.Stable
Using up-down shaking method which could let grinding more fully and more stable; The noise ≤ 70DB when machine is in operating, so it will not matter any other examinations or machines;
5.Convenient to operate at low temperature
If you need low temperature grinding environment, you could put the adapter with samples in liquid nitrogen cooling 1-2 minutes, then take it out and fix it in the host quickly, after this, grinding can begin soon, this method don’t need to be frozen processing again, so save the liquid nitrogen;
6.Good repeatability
Setting a same program for the same organization samples could achieve the same grinding purpose. The working time is short and the samples’ temperature will not rise.
Technical Specification for 24 Samples Organization Grinding Machine
1. Applied Area: Organization homogeneous material,grinding,cell crushing,homogenate,scattered,preparation,sample blending,oscillation;
2. LCD: Microcomputer control, large LCD screen, display working state;
3. The adapter sample processing: 24*(0.2-0.5ML) / 16*2ML / 8*(7-10ML) / 8*15ML / 4*25ML / 2*50ML;
4. Standard preparation: Two kinds adapter preparation could be choice;
5. Homogenizing rate: 10-70 HZ/S
6. Anti-shock principle: German patent , schleifen-1 operating method;
7. Adapter material: Teflon or alloy steel;
8. Grinding method: Wet grinding / dry grinding / low temperature grinding;
9. Max feed size: No request, could change according to the adapter;
10.The final discharging granularity: ~5µm
11.Grinding platform quantity : >2
12. With automatic center positioning of the fastening device: Yes;
13. Safe lock when operating, protect during all the process;
14. Grinding suite material: Converted steel / PTFE (teflon);
15. Source: Two phase 220V/50HZ;
16.Operating time: 0s-99min, customer could set by self;
17. Grinding ball diameter: 0.1-30mm;
18. Grinding ball material: Alloy steel,chrome steel,zirconia,tungsten carbide,quartz sand;
19. Acceleration: could get max speed in 2 seconds;
20. Reduction: could meet min speed in 2 seconds;
21. Noise layer: <65DB
22. Outside dimensions: 280*400*530;
23. Weight: 40kg.

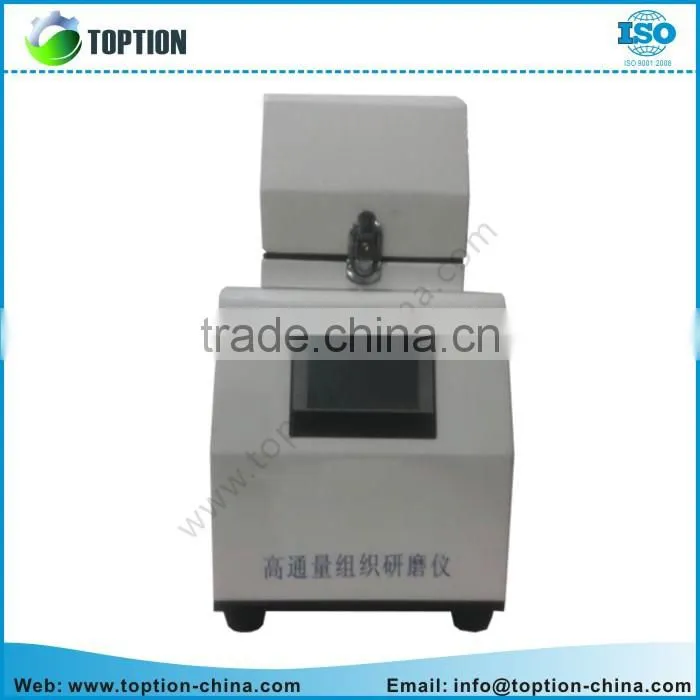

Picture of 24 Samples Organization Grinding Machine
Certificate for 24 Samples Organization Grinding Machine
Package for 24 Samples Organization Grinding Machine
