Wheat Grinding Machine
what we offer:
- complete set 5-500t/24h wheat/corn flour milling machines
- turn-key project, including design, installation, test and training.
- one-year free spare parts
- one-year quality gurantee
- lifetime service
why us?
Shijiazhuang Huanpai Machine Co.,Ltd
is a professional manufacturer of all types of flour milling machine for wheat/maize/corn,main design and manufacture various types of wheat flour milling machine and maize flour milling machine.
Supply: wheat and maize flour milling machine, corn milling equipment, corn milling machine, China maize processing machine, Chinese whole set flour milling line ,flour mill roller mill, NShima maize flour milling machinery, wheat plant, flour plant, Complete Set Flour Mill, Flour Making Grinding Mill Machine, wheat grinder , injera flour milling machine ,flour grinding line , Ugali flour production line, automatic flour packing machine
flour milling procedure:
1. cleaning part
to clean out the middle and small impurity from wheat. e.g., dust, stone, magnetic material, wheat was bitten by insect and so on.Includes beating, screening, destoner, magnetic separator and dampening.this section is make the wheat to prepare for millling part and to protect the machinery as well.
2. milling part
Include different number of mill and sifter to mill the wheat and separate the flour and bran
(1) Mill: mill the wheat to break the integrity by the roller moving
(2) Sifter: to separate the flour and bran, also separate large size and small size to enssure flour quality.
3. Packing part.
The packing part can be manual one also can be auto one, this can be designed according to requirement and machine capacity.
4. PLC controlling system
To controlling the whole set of machinery to work well and showing the process of working
Name |
10tons wheat flour milling machine |
|
1. |
Technology in cleaning part |
1 screen, 1 scour, 1 destoner, 1 washer, 1 damper |
2. |
Technology in milling part |
2 sets of 6F1820 duoble roller mill, consist of the milling technology of 4 break, 2 reduction, 1 bran brusher |
3. |
Production capacity |
10 tons of wheat flour/24H |
4. |
Power supply |
About31kW |
5. |
Used under |
380V, Frequency: 50HZ, below an elevation of 1000m |
6. |
Workshop style and dimension |
13.2×5×4 |
7. |
Container |
20’×1 |
computerized &pneumatic&mannual control roller mill
Characters:
l Highly structured,modern design,easy operation,high efficiency,long life.
l Cast iron foundation,smoothness of operation.
l Feeding system drive seperately if you click it, dirigibility,make sure feeding first,milling later.
plansifter
Mian types:FSFG4×16,4×22,6×22,6×24
It is the efficient level revolving plansifter.It is composed of flour or six or eitght isolate storehouse.It can adapt to classify material under the mill of every screen according to the requirements of flour mill.
double pansifter
puirfier
Main types:FQFD49×3×2,49×3×1,60×3×2
It is used for the precise classification of middle material to improve the quality of the finished product.This machine is smoothness of operation,convenient in maintance,low noise,no dust overflow.
Our customer and factory

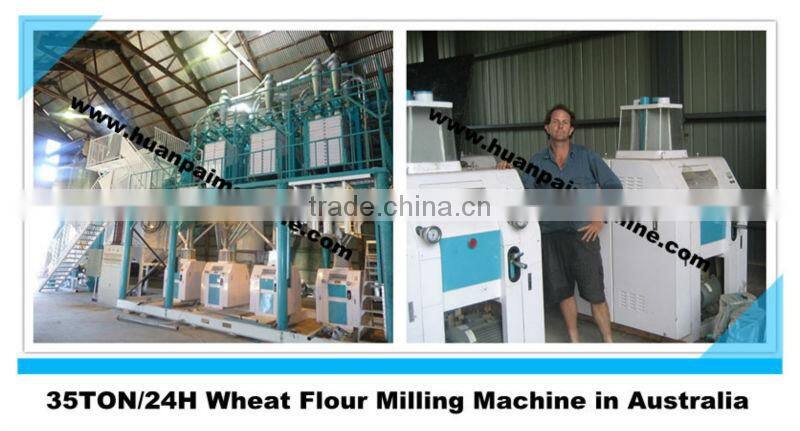

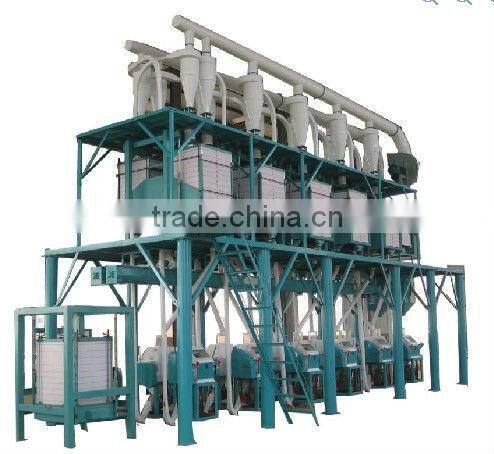

complete set line
loading
All of our equipment to contain one year free spare parts, and Quality guarantee period of one year.
If your are interested in our product. please contact us. And tell me your detailed demand (production capacity, and quality...)and your company's information in the mail.
