20 Models DGP DSP Series Fish Feed Pellet Mill Machine For Sale

20 Models DGP DSP Series Fish Feed Pellet Mill Machine For Sale thumbnail-1
20 Models DGP DSP Series Fish Feed Pellet Mill Machine For Sale photo-1
US$ 1,000 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
meida
Contact Supplier Request Quote Chat Now
Gongyi City Meida Material & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Henan, China
Brand Name meida
Model Number DGP90
Type Feed Pellet Machine
Voltage 380
Power(W) 37000
Dimension(L*W*H) 3x1.5x2 m
Weight 3000 kg
Certification CE
Warranty 12 month
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1 feed pellet machine , dry way extruder or wet way extruder for choose
2 productivity from 200-4000kg/h for different model

First, our feed machine include following products:

1 Floating fish feed pellet making machine .mainly for fish and shrimp

2 Pellet machine for poulty,such as chicken,duck etc



Second

we can design machine according customer's require

we offer abroad install and training for complete pellet machine



Third   Following is detailed explanation for floating fish pellet making machine

 this feed extruder machine has two group:

(1) one is dry way extruder ,named DGP series.

     this series machine can extruder the raw materials directly after cut and mix it



Model

Productivity (t/h)

Host power kw

Feeding power    kw

Spiral diameter mm

Cut power kw

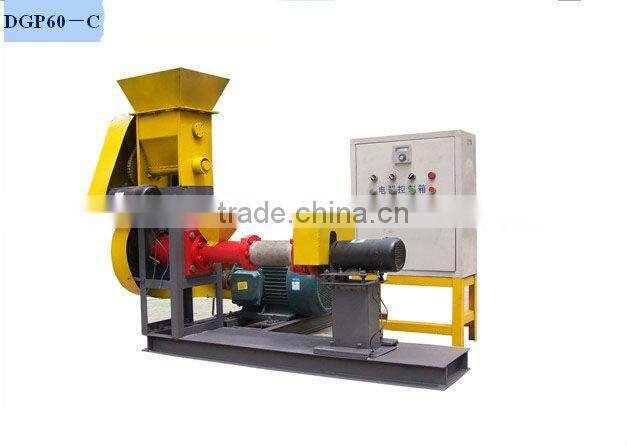

DGP60-C

0.12-0.15

15

0.4

φ60

0.4

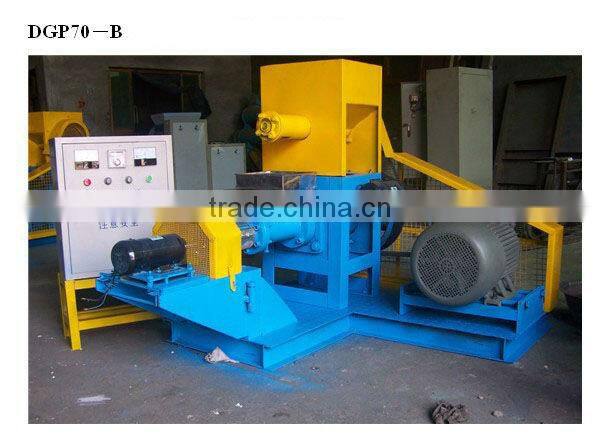

DGP70-B

0.18-0.25

18.5

0.4

φ70

0.75



DGP80-B

0.3-0.35

22/27

0.4

φ80

1.5



DGP90-B

0.4-0.45

30/37

1.1

φ90

1.5



DGP120-B

0.5-0.7

55

1.1

φ120

2.2



DGP135-B

0.8-1.0

75

1.1

φ133

2.2



DGP160-B

1.2-1.5

90

1.5

φ155

2.2

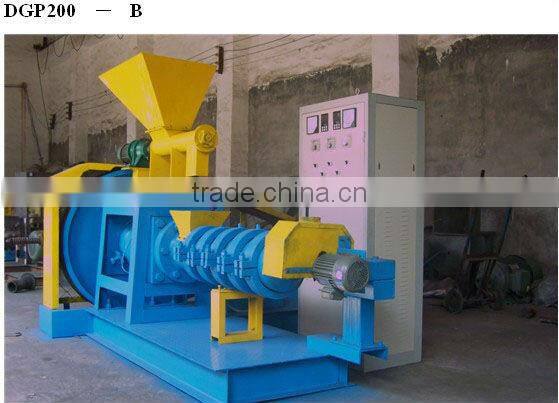

DGP200-B

1.8-2.0

132

1.5

φ195

3.0





(2) another is wet way extruder, named DSP series

      this series machine is this: after raw materials cut and mix, mix the raw materials with steam to made the raw mterials semi-ripe,this can made the end pellet more fineness and smooth

Model

Productivity

(t/h)

Host power

kw

Feeding power

kw

Spiral diameter

mm

Cut power kw

Modulation power

(Kw)



DSP60-III

0.2-0.25

15

Machine feeding

60

0.75

0.37

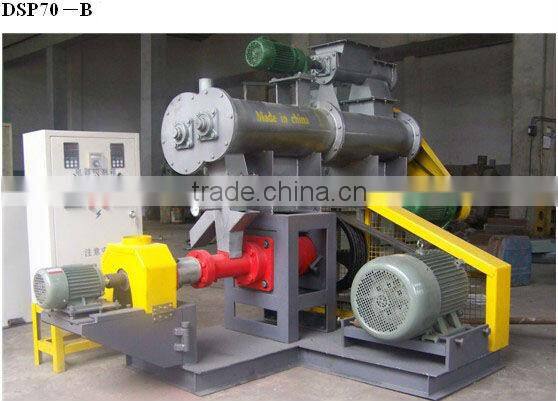

DSP70-III

0.3-0.4

18.5

0.75

70

0.75

1.5



DSP80-III

0.45-0.5

22-30

0.75

80

0.75

1.5

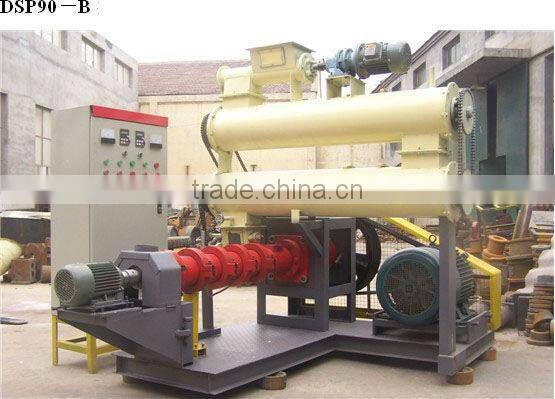

DSP90-III

0.6-0.7

37

1.1

90

1.1

2.2



DSP120-III

0.8-0.9

55

1.1

120

1.1

2.2

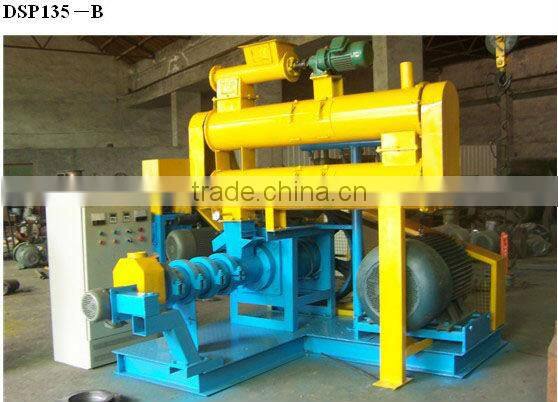

DSP135-III

1.0-1.2

75

1.5

135

2.2

2.2



DSP160-III

2.0-3.0

90

2.2

155

2.2

3.5

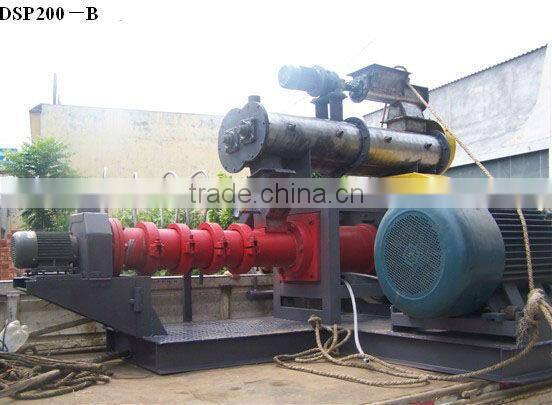

DSP200-III

3.0-4.0

132

2.2

195

3.0

4.5





(3) raw materials can be: grain ,bone powder etc

      raw materials need grind into 60-80mesh

      raw materials moisture: 20-25%

3 machine features

. can made different size pellet by change the mould

. can made floating pellet or sinking pellet or pet food

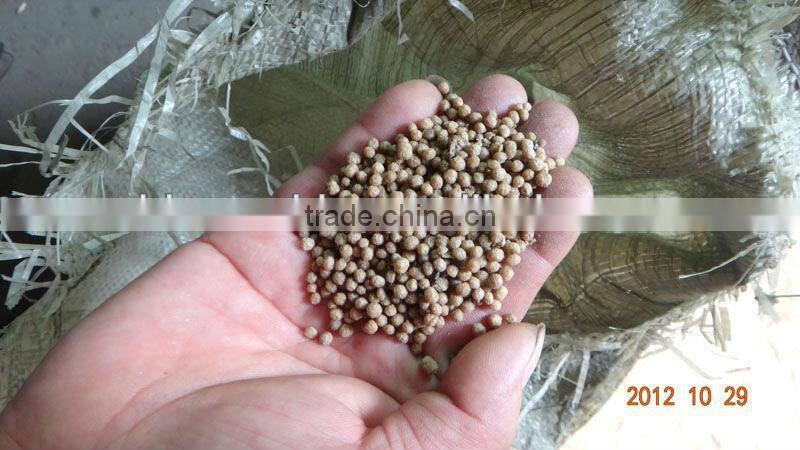

.feed pellet can stay in water at least 12hours to avoid melt in water

.durying pellet making process, the bacterium was killed,so the pellet was sanitary for eat by animal

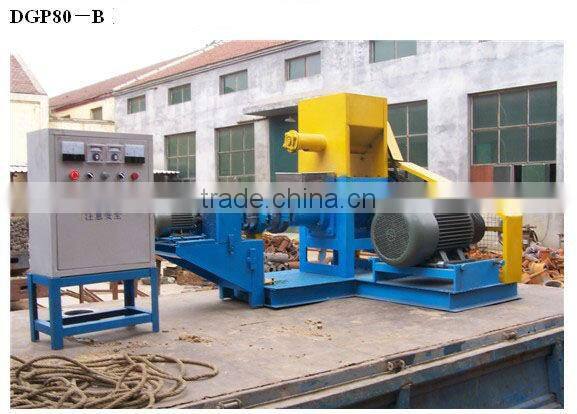

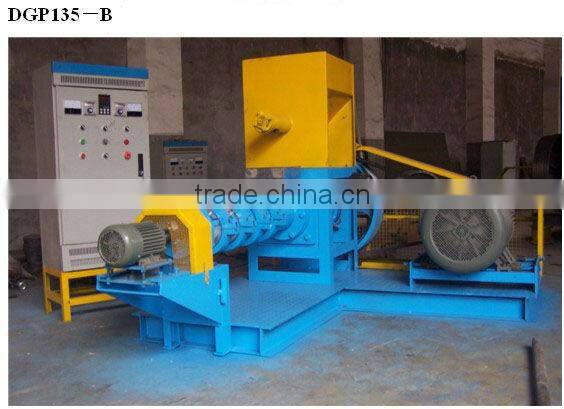

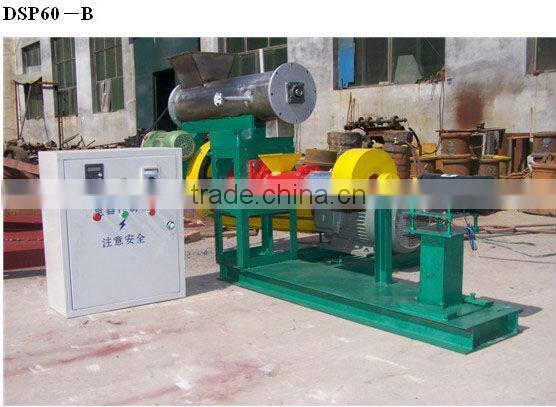

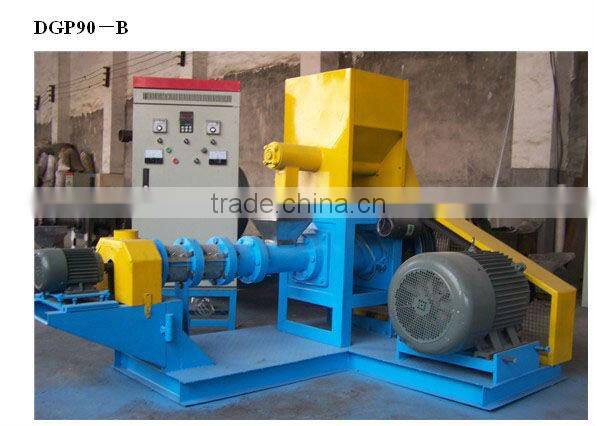

4 more photo of the machine

20 Models DGP DSP Series fish feed pellet mill machine For Sale20 Models DGP DSP Series fish feed pellet mill machine For Sale20 Models DGP DSP Series fish feed pellet mill machine For Sale20 Models DGP DSP Series fish feed pellet mill machine For Sale20 Models DGP DSP Series fish feed pellet mill machine For Sale20 Models DGP DSP Series fish feed pellet mill machine For Sale20 Models DGP DSP Series fish feed pellet mill machine For Sale20 Models DGP DSP Series fish feed pellet mill machine For Sale20 Models DGP DSP Series fish feed pellet mill machine For Sale

20 Models DGP DSP Series fish feed pellet mill machine For Sale20 Models DGP DSP Series fish feed pellet mill machine For Sale20 Models DGP DSP Series fish feed pellet mill machine For Sale
