Specifications
Charcoal Making MachineThis plant can make charcoal stick of different diameter and different shape.
Charcoal Product Line/Chrcoal Making Machine/Charcoal Extruding Machine/
Charcoal Briquetting Machine
Specifications

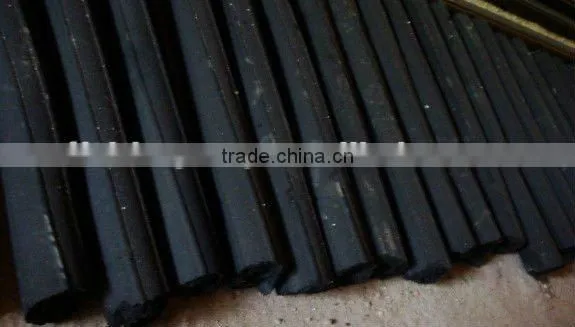

Complete Project of Charcoal / Biomass Briquette:This plant can make charcoal stick of different diameter and different shape.

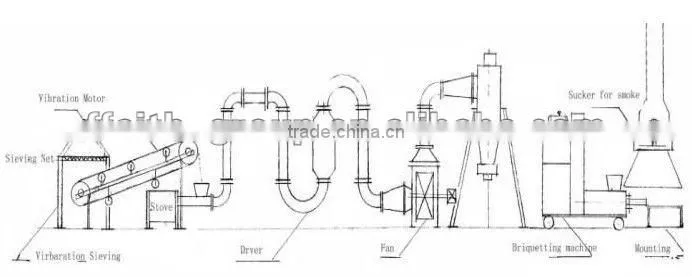

Flowchart of the Charcoal / Biomass Briquette Technology:
Raw material –1st crusher—2nd crusher--drier--biomass / charcoal briquette machine --carbon bar furnace--finished product--packaged.
Biomass / Charcoal Briquette Screw Press:
This Biomass / Charcoal Briquette Screw Press equipped with automatic temperature control are designed to produce high density charcoal. This can be achieved by 15kw-3phase-50hz electrical driven motor and 3 belts pulley for more stable power transfer. Normal capacity of standard model is about 6,000 kg. per day and can be operated 24 hours a day. The extruded wood briquette (before carbonization) can be used as fuel for wood boilers, stoves or for room heating, but this uncarbonized briquettes has some
smoke while burning.
Model |
ZBJ-II |
Output kg/h |
200-300/wood sawdust |
Motor Power (kw) |
15kw |
Electric heater (kw) |
3*1.5 |
Weight(kg) |
700kg |
Overall dimension |
1680*550*1280 |
Size of finished products (mm) |
Diameter:40,50,60,70mm/any size for choice |
Q’TY(set) |
2 |
