Best Seller!!! V-twin Diesel Engine 2 Cylinder Tractor Engine 25HP

Best Seller!!! V-twin Diesel Engine 2 Cylinder Tractor Engine 25HP thumbnail-1
Best Seller!!! V-twin Diesel Engine 2 Cylinder Tractor Engine 25HP thumbnail-2
Best Seller!!! V-twin Diesel Engine 2 Cylinder Tractor Engine 25HP thumbnail-3
Best Seller!!! V-twin Diesel Engine 2 Cylinder Tractor Engine 25HP thumbnail-4
Best Seller!!! V-twin Diesel Engine 2 Cylinder Tractor Engine 25HP thumbnail-5
Best Seller!!! V-twin Diesel Engine 2 Cylinder Tractor Engine 25HP thumbnail-6
Best Seller!!! V-twin Diesel Engine 2 Cylinder Tractor Engine 25HP photo-1
Best Seller!!! V-twin Diesel Engine 2 Cylinder Tractor Engine 25HP photo-2
Best Seller!!! V-twin Diesel Engine 2 Cylinder Tractor Engine 25HP photo-3
Best Seller!!! V-twin Diesel Engine 2 Cylinder Tractor Engine 25HP photo-4
Best Seller!!! V-twin Diesel Engine 2 Cylinder Tractor Engine 25HP photo-5
Best Seller!!! V-twin Diesel Engine 2 Cylinder Tractor Engine 25HP photo-6
US$ 900 - 1,200 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, Generators
Fuel:
Diesel
Contact Supplier Request Quote Chat Now
Fujian Best Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Other, Generators
Fuel Diesel
Stroke 4 Stroke
Cylinder Single Cylinder
Cold Style Other, Air-cooled
Start Electric Start
Place of Origin Fujian, China
Brand Name POWER-GEN
Model Number BD2V90FE
Dimension(L*W*H) 555mm*391mm*459mm
Weight 70kgs
Certification CE,EPA
Warranty 12Months
After-sales Service Provided No overseas service provided
Product Description

Product Application

The V-twin 2 Cylinder Diesel Engine 25HP can work as engine for Tractors, Motorcycles and Water Pumps, as well as Diesel Generators.


Note: The engine can be shipped without Muffler and Fuel Tank.

Specifications of Diesel Engine 25HP
Model No.
BD2V90FE
Engine Type
Air-cooled, 4-stroke, V-twin 2 Cylinder, Direct Injection
Bore x Stroke (mm)
88x72
Displacement (cc)
870
Compression Ratio
20:1
Peak Power (HP/RPM)
25/3600
Lowest speed @ zero load
<1300
Rotation
Anti-clockwise (PTO Side)
Fuel Type
0#, -10#, -20# diesel
Fuel Tank Capacity (Liter)
12
Fuel Consumption (g/kW.H)
320
Lub. oil Type
CD Grade or SAE 10W-30 15W-40
Lub Oil Capacity (Liter)
2.3
Lubrication System
Forced and Pressure Splashed
Starting System
Electric/Key Start
Center Height (mm)
155
Dimensions (LxWxH)mm
550 x 391 x 460
Net weight (Kgs)
72
Complete Engine

* Internal 8 Amp alternator with regulator               * Runs on any type diesel fuel
* Equipped with muffler and 12 liter fuel tank         * Gear reduction electric starter
* Two glow plugs for cold weather starting             * One year factory warranty on parts

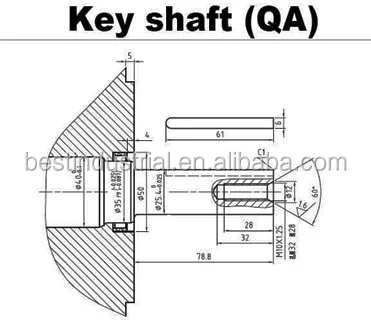

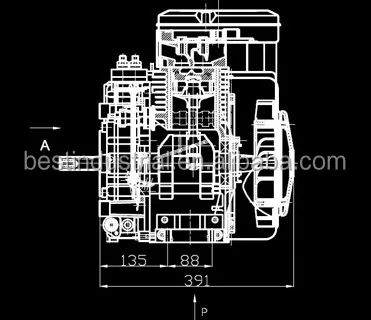

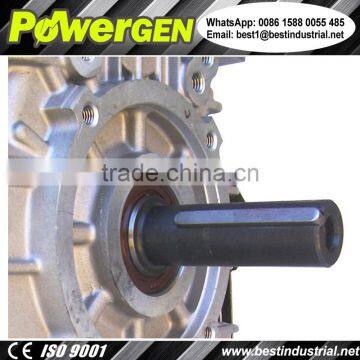

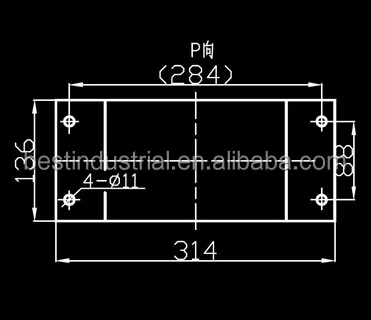

Diagram and Shaft
Applications

Diesel Generator 10KW or 12KW

The diesel engine 22HP or 25HP can work as the engine for diesel generator 10KW.

Fire Fighting Water Pumps

The 2-cylinder diesel engine 22HP or 25HP is ideal for fire fighting water   pump.

Tractors or Motorcycles

The diesel engine 22HP or 25HP can work as engine for tractors and motorcycles.

Packing
Packaging
Size (mm)
650 (L) * 450 (W) * 720 (H)
Gross Weight
84Kg



Packaging Details


1) Inner Packaging: Polybag & Foam
2) Outer Packaging: Wooden Case
3) Wrapping tape
Assembly Line
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
