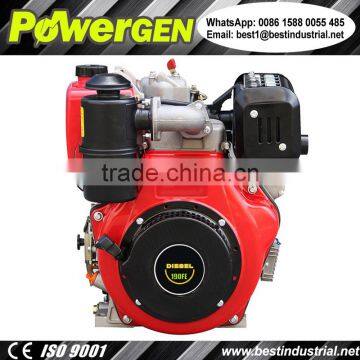

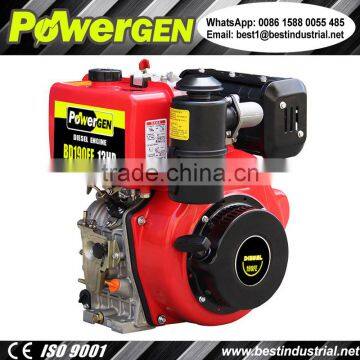

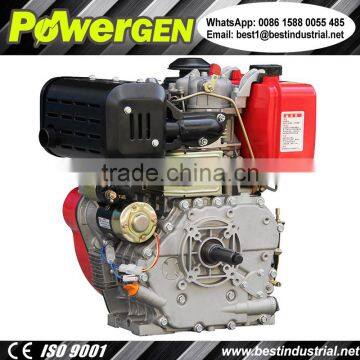

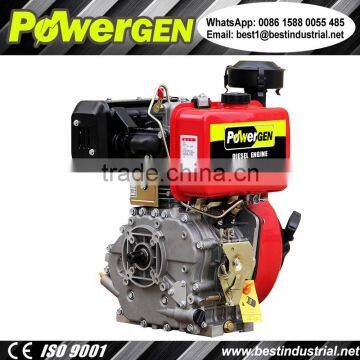

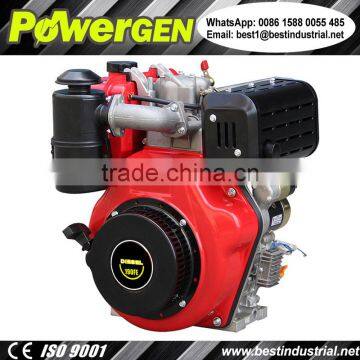

Best Seller!!! POWERGEN 190FE Elecric Start Air Cooled Single Cylinder 13HP Diesel Engine

Best Seller!!! POWERGEN 190FE Elecric Start Air Cooled Single Cylinder 13HP Diesel Engine thumbnail-1
Best Seller!!! POWERGEN 190FE Elecric Start Air Cooled Single Cylinder 13HP Diesel Engine thumbnail-2
Best Seller!!! POWERGEN 190FE Elecric Start Air Cooled Single Cylinder 13HP Diesel Engine thumbnail-3
Best Seller!!! POWERGEN 190FE Elecric Start Air Cooled Single Cylinder 13HP Diesel Engine thumbnail-4
Best Seller!!! POWERGEN 190FE Elecric Start Air Cooled Single Cylinder 13HP Diesel Engine thumbnail-5
Best Seller!!! POWERGEN 190FE Elecric Start Air Cooled Single Cylinder 13HP Diesel Engine thumbnail-6
Best Seller!!! POWERGEN 190FE Elecric Start Air Cooled Single Cylinder 13HP Diesel Engine photo-1
Best Seller!!! POWERGEN 190FE Elecric Start Air Cooled Single Cylinder 13HP Diesel Engine photo-2
Best Seller!!! POWERGEN 190FE Elecric Start Air Cooled Single Cylinder 13HP Diesel Engine photo-3
Best Seller!!! POWERGEN 190FE Elecric Start Air Cooled Single Cylinder 13HP Diesel Engine photo-4
Best Seller!!! POWERGEN 190FE Elecric Start Air Cooled Single Cylinder 13HP Diesel Engine photo-5
Best Seller!!! POWERGEN 190FE Elecric Start Air Cooled Single Cylinder 13HP Diesel Engine photo-6
US$ 230 - 430 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, generator, air compressor
Fuel:
Diesel
Contact Supplier Request Quote Chat Now
Fujian Best Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Other, generator, air compressor
Fuel Diesel
Stroke 4 Stroke
Cylinder Single Cylinder
Cold Style Other, Air-cooled
Start Electric Start
Place of Origin Fujian, China
Brand Name POWERGEN
Model Number BD190FE
Dimension(L*W*H) 417X470X494
Weight 47
Certification EPA,CE,ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

The Single Cylinder Diesel Engine 13HP can work as engine for Generators, Water Pumps and Construction equipments.


Specifications of Diesel Engine 14HP
Model No.
BD190FE
Engine Type
Air-cooled, 4-stroke, Single Cylinder, Direct Injection
Bore x Stroke (mm)
90x75
Displacement (cc)
477
Compression Ratio
19:1
Peak Power (HP/RPM)
13/3600
Rotation (View from Flywheel)
Clockwise
Fuel Type
0#, -10# diesel
Fuel Tank Capacity (Liter)
5.5
Fuel Consumption (g/kW.H)
277
Lub. oil Type
SAE10W30(Above CD grade)
Lub Oil Capacity (Liter)
1.65
Starting System
Recoil Start, Electric Start
Dimensions (LxWxH)mm
417 x 441 x 494
Net weight (Kgs)
Recoil start: 47Kg ; With electric starter: 53Kg

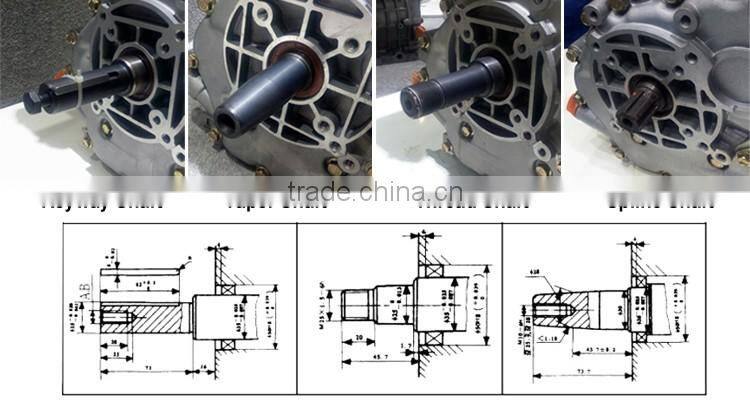

Diagram & Shaft

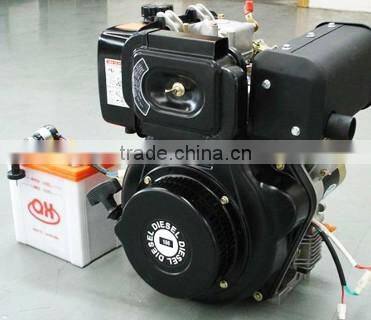

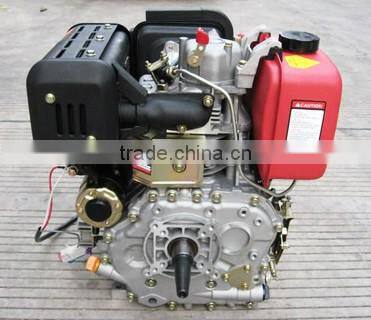

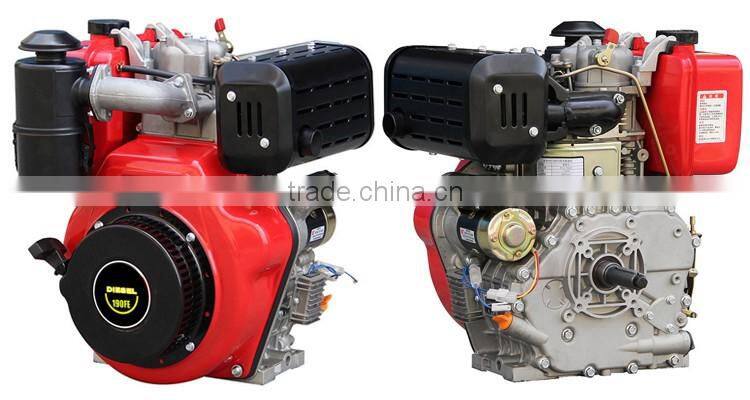

Complete Engine

* Internal 8 Amp alternator with regulator               * Internal counterbalance shaft

* Equipped with muffler and fuel tank                       * Solonoid type electric starter (battery not included)

* Pull-recoil starter included                                        * Compression release lever
* Glow plug for cold weather starting                        * One year factory warranty on parts

Applications

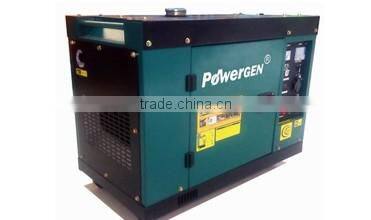

DIESEL GENERATOR 7KW

Durable and easy to start, the diesel engine190F 13HP is an ideal engine for assemble diesel generator 7KW.


For more details of this newly designed diesel generator 7KW, please click the picture on the left. Thank you.

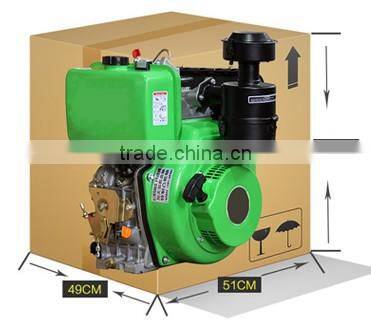

Packing
Packaging
Size (mm)
510 (L) * 490 (W) * 570 (H)
Gross Weight
55Kg



Packaging
Details


1) Inner Packaging: Polybag & Foam
2) Outer Packaging: Wooden Case
3) Wrapping tape
Assembly Line
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
