factory zinc aluminum alloy mesh /gabion box/gabion cage(Factory & Exporter)

FOB Price

USD $4.8 - $200 / Square Meter

1000 Square Meters(Min.Order)

Supply Ability 100000 Square Meter / Square Meters per Month
Port Tianjin

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Hebei, China	Brand Name:	Aoyuan	Model Number:	SWO NO.6
Material:	Other, Galvanized Iron Wire, Galvanized Iron Wire	Type:	Welded Mesh	Application:	Gabions
Hole Shape:	Hexagonal	Aperture:	60-120 MM	Wire Gauge:	2-4.0 MM

Product Description

factory zinc aluminum alloy mesh /gabion box/gabion cage(Factory & Exporter)

Product Description

Finish: hot-dipped galvanized, galvanized aluminum alloy or PVC coated, etc.

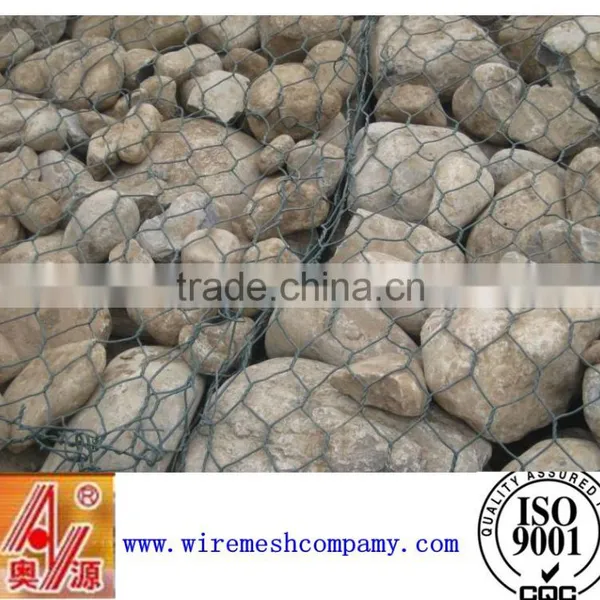

Gabion mesh Gabions are double twisted hexagonal woven galvanized steel wire mesh compartmented baskets with a rectangular box shape.

The compartments or cells are of equal size and dimension and are formed by internal diaphragms placed within the basket. The compartments or cells are filled with natural stone and the diaphragms minimize stone migration within the basket providing even distribution of the stone fill throughout the basket even after structural movement.

sizes: 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m. Others also available at the customers requirements !

Finish: hot-dipped galvanized, galvanized aluminum alloy or PVC coated, etc.

Applications: Control and guide of water or flood Flood bank or guiding bank Preventing of rock breaking Water and soil protection Bridge protection Strengthening structure of soil Protection engineering of seaside area.

Keywords

of items

specifications

package

welded gabion box/basket

1. Wire diameter: 2.0-4.0mm

2.Mesh opening: 60x80 mm, 80x100 mm, 100x120mm, 120x150mm

3.Gabion box size: 2x1x0.5m, 2x1x1m,

3x1x1m, 4x1x1m ect.

4. Material: Hot dipped galvanized steel wire, Galfan Steel Wire, PVC coated steel wire ect.

5.Weaving:Straight twist,reverse twist,straight

and reverse twist(3 twist,5 twist etc.)

1. Packaged with pallet

2. Packaged in bulk

3. Packaged with steel strip and plastic film or as customer

Gabion Mesh
Size of mesh aperture(mm)	Wire diameter (metal wire) (mm)	wire diameter (PVCmetal wire) inside diameter/outside diameter(mm)	Largest wide range (m)
60X80	φ 2.0-2.8	φ 2.0/3.0-2.5/3.5	4.3
80X100	φ 2.0-3.2	φ 2.0/3.0-2.8/3.8	4.3
80X120	φ 2.0-3.2	φ 2.0/3.0-2.8/3.8	4.3
100X120	φ 2.0-3.4	φ 2.0/3.0-2.8/3.8	4.3
100X150	φ 2.0-3.4	φ 2.0/3.0-2.8/3.8	4.3
120X150	φ 2.0-4.0	φ 2.0/3.0-3.0/4.0	4.3

Packaging & Shipping

Our Services

Our factory can produce several kinds of Stainless Steel Wire Mesh as your requirements,

and we can promise the quality and quote you our best prices,and we can serve you samples freely.

All orders are approached with a commitment to total quality and reviewed to ensure conformance to any customer’s specifications. Audits of production processes and inspection procedures are conducted regularly for quality assurance.

Contact Us

Anping No. 2 Wire Mesh Factory: Contact nameXuguang Fu; AddressNorth Of Xinying Street, West Of Shenggu Road
