300 mm-1000 mm Hot Dip Galvanized PVC Stainless Steel Razor Barbed Wire 8-15 m/roll for Wall Road

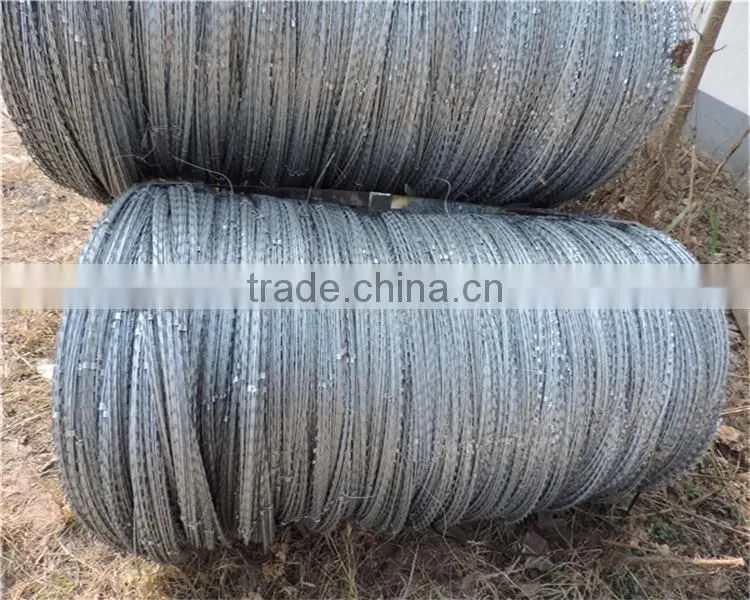

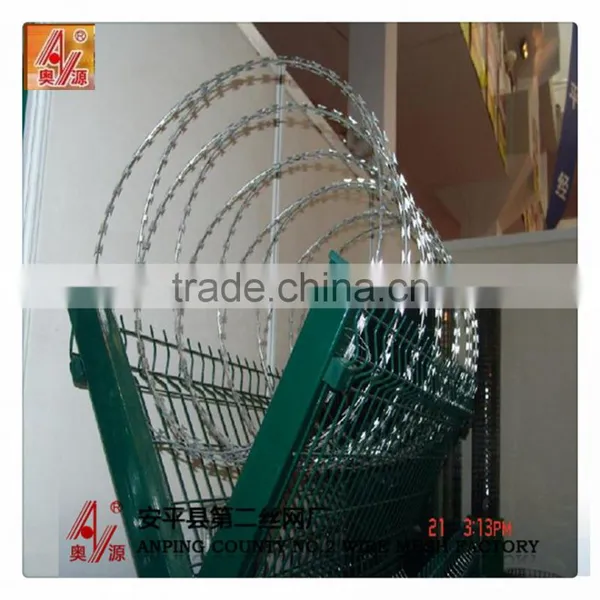

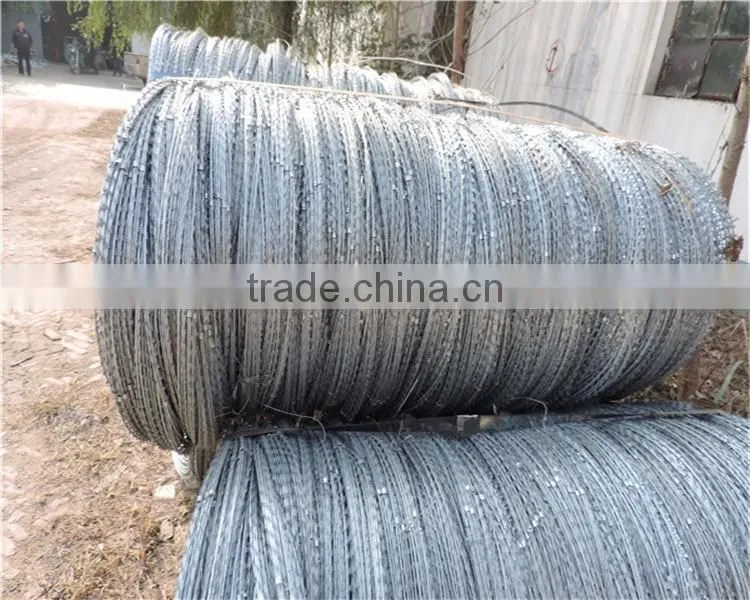

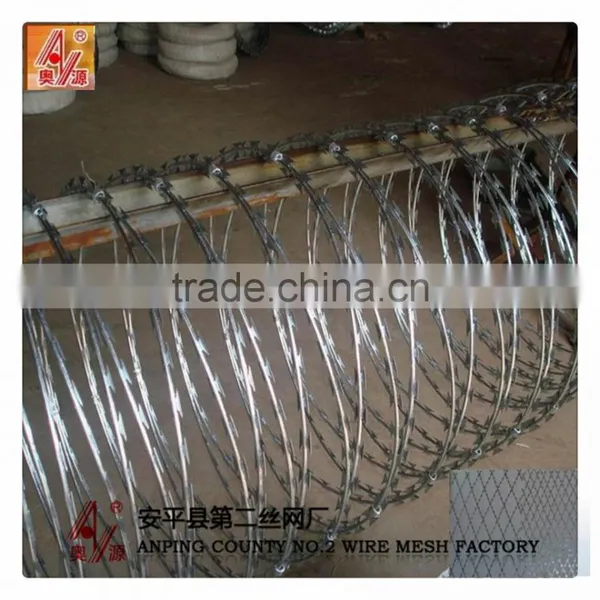

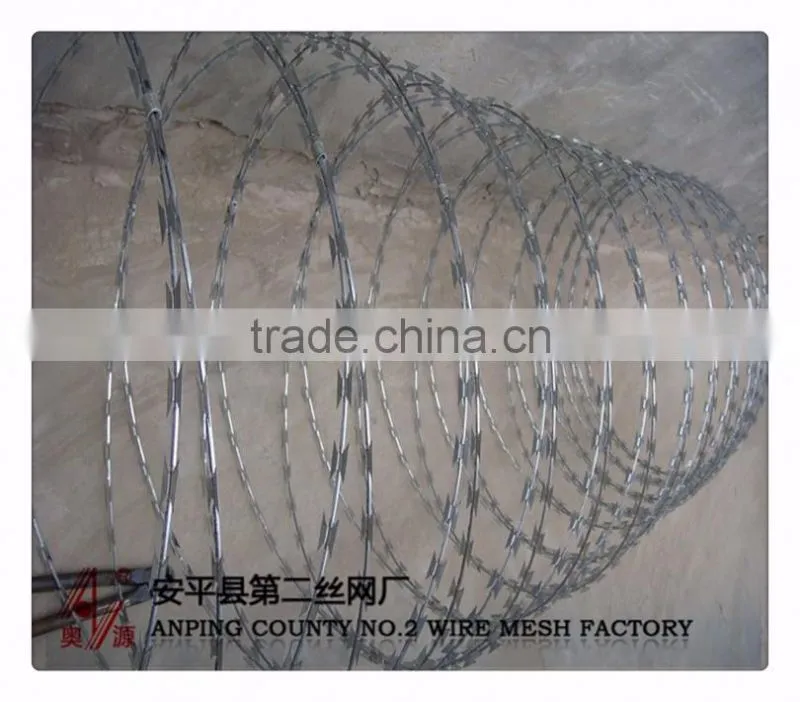

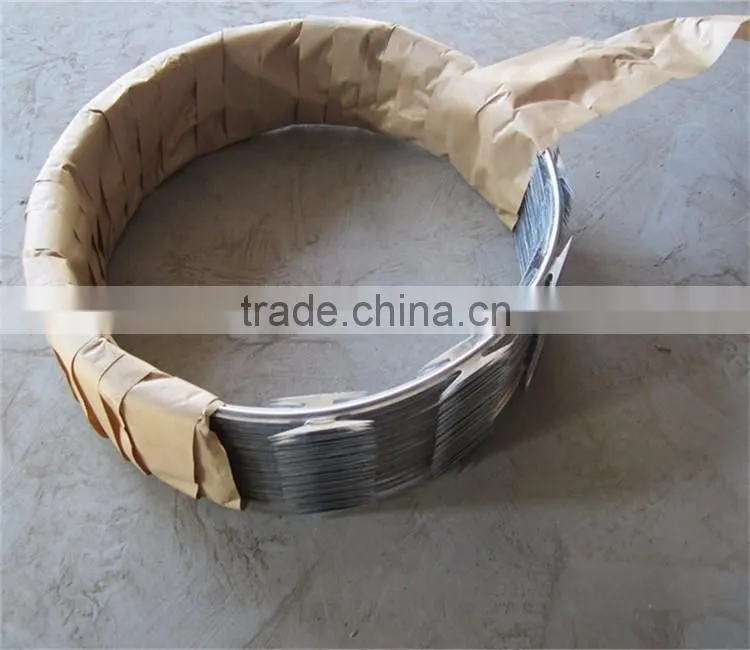

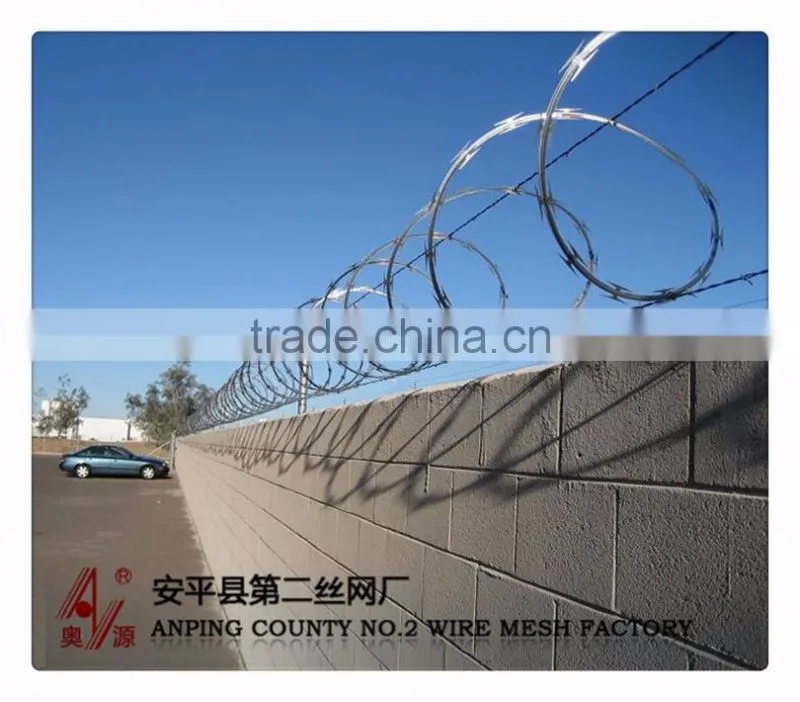

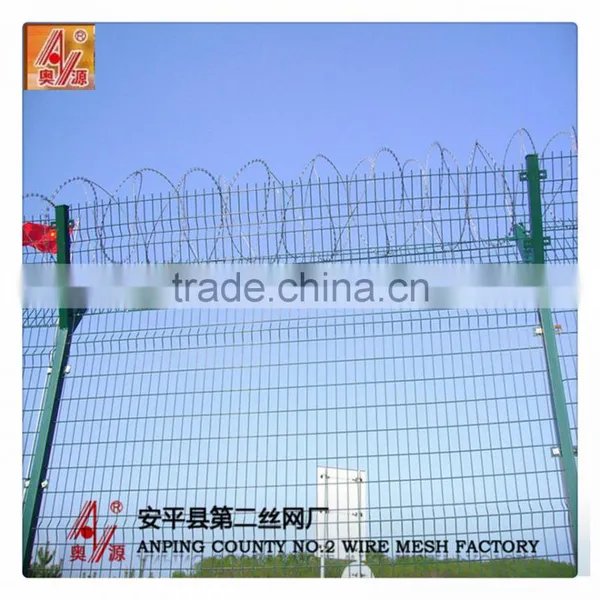

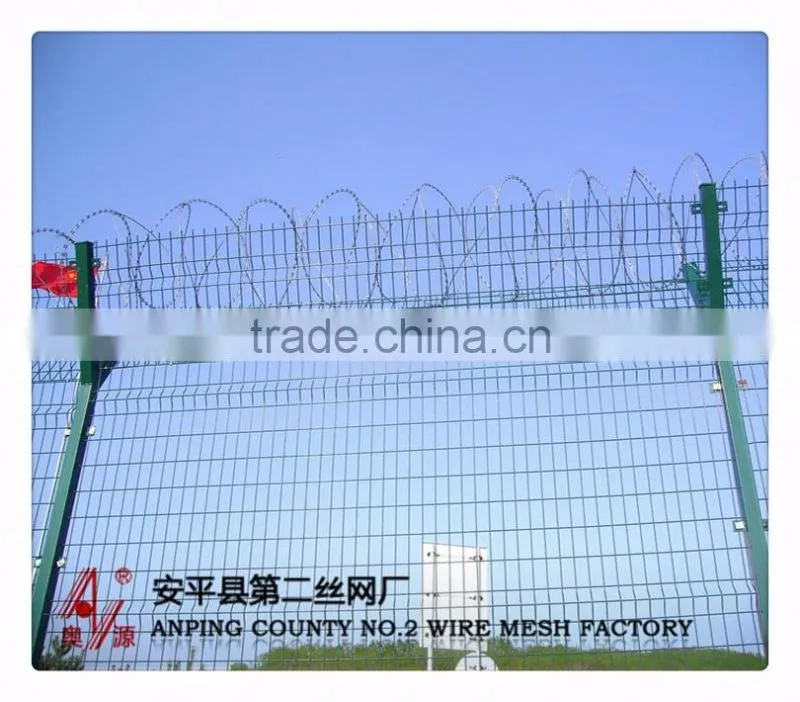

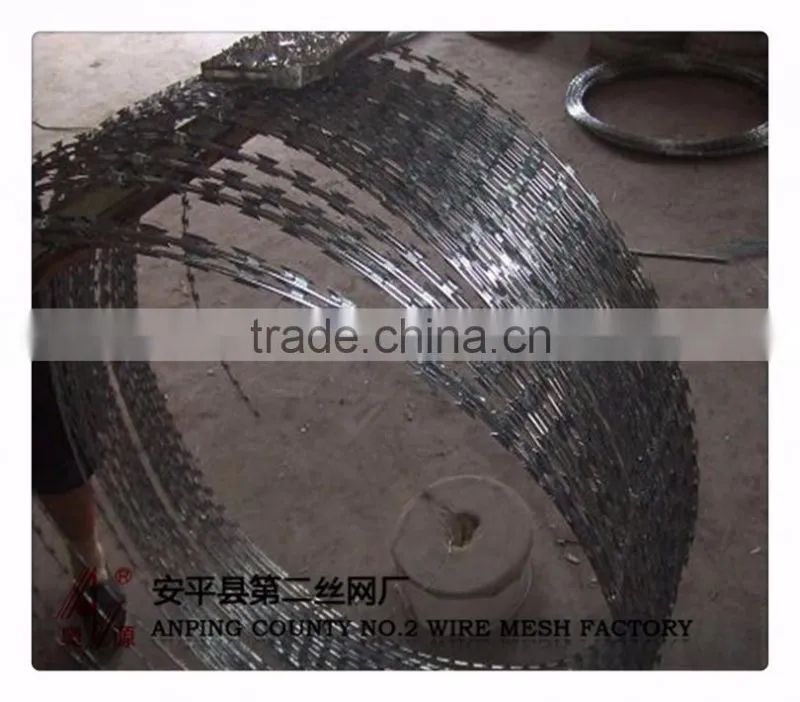

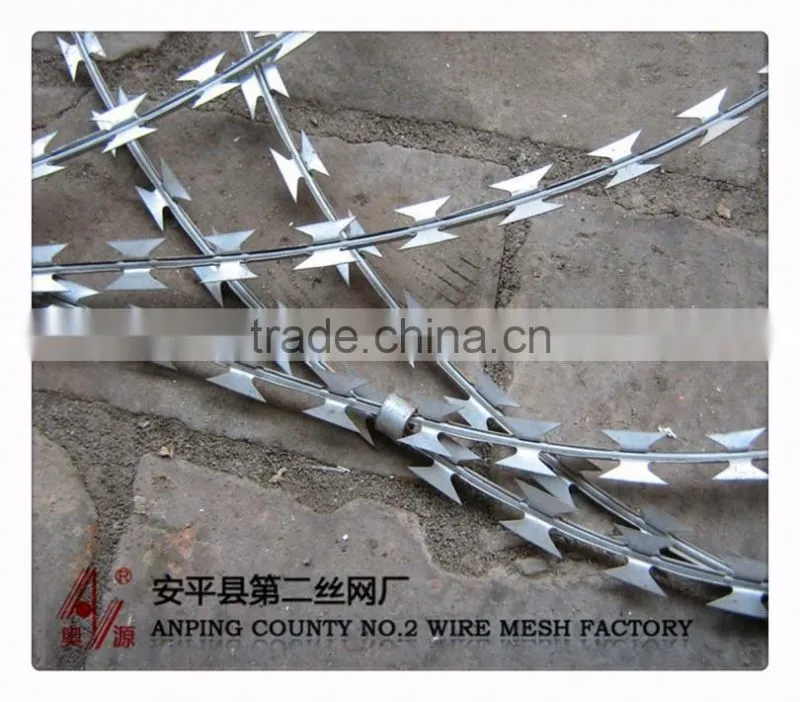

Razor wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Barbed Tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.

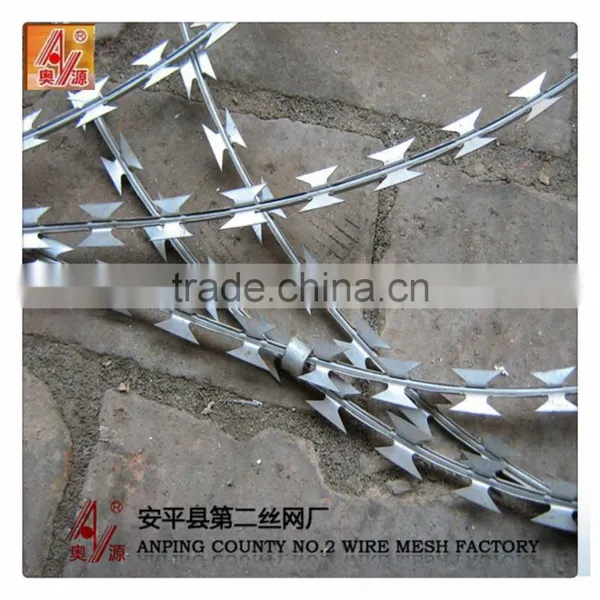

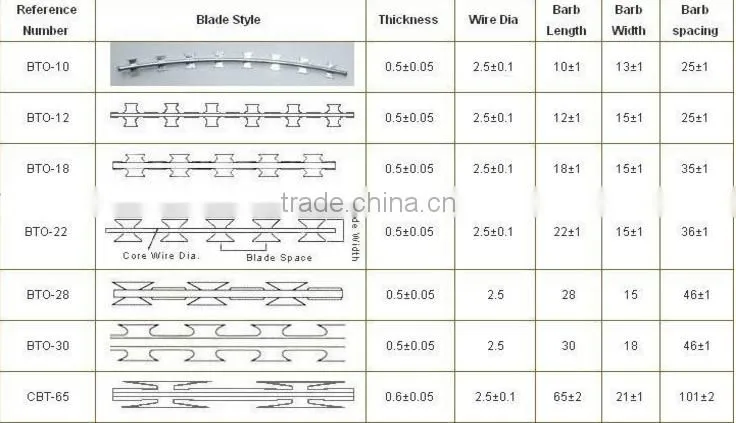

| Razor blade type and speciafication | |||||
| reference number | thickness(mm) | wire diameter(mm) | barb length(mm) | barb width(mm) | barb spacing(mm) |
| BTO-12 | 0.4±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-15 | 0.4±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 |
| BTO-22 | 0.4±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-30 | 0.4±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 |
| BTO-25 | 0.4±0.05 | 2.5±0.1 | 25±1 | 16±1 | 40±1 |
| BTO-60 | 0.5±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| BTO-65 | 0.5±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
Barbed Tape Wire Specification | ||||
Outside Diameter |
No. of Loops |
Standard Length per Coil |
Type |
Notes |
450mm |
33 |
8M |
CBT-65 |
Single coil |
500mm |
41 |
10M |
CBT-65 |
Single coil |
700mm |
41 |
10M |
CBT-65 |
Single coil |
960mm |
53 |
13M |
CBT-65 |
Single coil |
500mm |
102 |
16M |
BTO-10.15.22 |
Cross type |
600mm |
86 |
14M |
BTO-10.15.22 |
Cross type |
700mm |
72 |
12M |
BTO-10.15.22 |
Cross type |
800mm |
64 |
10M |
BTO-10.15.22 |
Cross type |
960mm |
52 |
9M |
BTO-10.15.22 |
Cross type |
Application
1 . Any Inquiries will be replied within 24 hours .
2 . We are professional metal wire mesh manufacturer and factory with more than 30 years' experience .
3 . We have technical designers who can design metal wire mesh products as per customers' requirements .
4 . Quality Guarantee :
----- All products will be strictly inspected by our inspector before packing and shipping .
----- Welcome to our factory to supervise the manufacturing processing and inspect our products whenever .
----- If the material , weight and appearance can not meet your markets requirements , we are commited to
unconditional return the products and refund , then compensate you the corresponding .
5 . Free Samples .
Thanks for your attention on us . If you are interested in any of our products , please feel free to contact with me .
