Automatic type hot oil press machine/oil plant
Working Video for automatic oil press machine(test material is peanut)

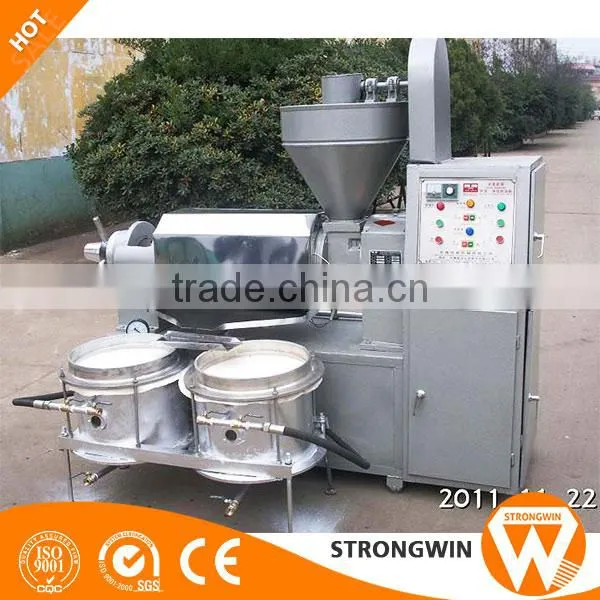

Automatic type hot oil press machine/oil plant
1.The automatic screw oil press is composed of vacuum filtration system, automatic heating device and controlling system.
2. Some parts of the oil press will be preheated before pressing, such as the press chamber, press screw and press ring.
3. During pressing, the press will filter the oil in due time.
4. This machine is matched with one controlling cabinet box to control all working process of the machines.
| Full-automatic Screw Oil Press Machine | ||||
| Model | Capacity(kg/h) | Power(kw) | Dimension(mm) | Weight(kg) |
| 6YL-68A | 50-60 | 5.5kw+1.5kw | 1600*890*1500 | 370 |
| 6YL-80A | 100 | 5.5kw+1.5kw | 1650*900*1600 | 680 |
| 6YL-95A | 150-200 | 7.5kw+1.5kw | 2000*990*1800 | 890 |
| 6YL-100A | 150-200 | 7.5kw+1.5kw | 2000*990*1750 | 900 |
| 6YL-120A | 250 | 11kw+1.5kw | 2250*1100*1800 | 960 |
| 6YL-130A | 400-500 | 18.5kw+1.5kw | 2500*1200*1900 | 1260 |
| 6YL-160A | 600-800 | 22kw+3kw | 2600*1220*1970 | 1580 |
| 6YL-180A | 650-830 | 30kw+1.5kw | 2600*1220*1970 | 1800 |
Main parts
1. Screw oil press
2. Electrical element for heating chamber .
3. Vacuum filter for clean crude oil
4. Squeezing bolt
5. Heating ring.
Oilseeds scope:
soybean, rice bran, peanut, sesame, sunflower seed, rapeseed, cottonseed, corn germ, copra, castor bean and so on.
Blue type
Spare parts supply
1. Can be used for both hot press and cold press.
2. High oil yield and good condition oil cake.
3. High purity edible oil. As equipped with two vacuum oil tanks to filter pressed oil, the finished oil is of high purity.
4. The wear parts such as the pressing rings, worms are made of the carbon steel which is under the process of heat pretreatment, making them very durable.
5. Safety and convenience. The whole process is controlled by electric cabinet, making it more safe and easy to operate.
6. Cast iron machine base.
7. Special gear box structure make the rotating speed averagely.
8. Main parts of chamber through the processing of high-temperature tempering and low temperature quenching.
1. What kind of oilseeds oil can be pressing and refining?
Crude soybean oil, palm oil, palm kernel oil, sunflower oil, canola oil(rapeseed oil) ,peanut oil, sesame oil, conttonseeds oil etc.
2. What’s the pre-press method?
Both hot and cold press are ok
3. Which type of oil pressing machine can you offer ?
Screw oil pressing machine and Hydraulic pressing machine, both can do
Fully-automatic, semi-automatic and manual type
1. Semi-automatic Screw oil press machine
2. Full-automatic Screw oil press machine
3. Hydraulic oil press machine( used for cold press)
4. Palm oil press machine
5. Mini cooking oil refining machine unit
6. Oil production line
For oil quality, may need oil refinery machine
Dear Customers, New year 2017 is coming soon, To offer you better service,Welcome supply us your advice about our company and the products(Why are you choose us and why are you not choose us).Thank you for your support.
New year We will do better and better.
Welcome for your inquiry for edible oil pressing machine
