Best selling Strongwin feed manufacturing process machinery animal feed pelletizer machine rabbit
1.23 years Experience, With independent Import and Export Rights
2.Members of China Bioenergy
3.Member of Henan Animal Husbandry and Engineering Association
4.Member of Henan Quality and Safety of Agricultural Machinery Institute
5.CE,IDO,SGS,TUV Certification
How does Strongwin feed pelletizer machine work? Please watch the following videos
1.feed pelletizer introduction
Animal feed pellet line is a complete set of machines that are specifically used to make feed pellets.
The machine group generally including the following process: raw materials receiving and cleaning process, crushing process, mixing process, pellet making process, pellet cooling process, (pellet crumbling process), sifting process and packaging process.
The animal feed processing machine is one of the key machines in feed pellet production line. It’s die mold is made of stainless steel or alloy steel for your choice. It has the characteristics of low cost, reasonable structure, compact layout, reliable performance and easy maintenance
SZLH400 feed pellet processing machine is widely used to produce pellets for animals,such as carp, chicken, pig, horse, cattle and other poultry and livestock animal. The pellets by our machine have firm and smooth structure and easy digest.Since now our machines have exported to Mali, Zambia, South Korea, Russia, Oman, Thailand, Bangladesh and so on.Some customers bought a single machine, and most customers bought a production line to found a feed making factory.
2.animal feed pelletizer features:
- America CPM model,high precision gear driven .
- Stainless steel material,frequency feeding speed control.
- Siemens Motor,Switzerland SKF bearing
- High efficiency,low noise working
♦ feed pelletizer machine application
a. Widely used in large,medium and small aquaculture,grain feed factory,livestock farm,poultry farm,individual farmers, small and medium sized farms, as well as feed manufacturer plant.
b. The raw material and finished pellet:
3. feature and advantage of feed pelletizer machine
1). Driven by variable frequency motor, the feeder can be adjusted automatically within a certain scope according to the production;
2). The interlock device, outer machine discharging device and over-load protection device work together to ensure the safety and reliability;
3). Magnetic separation and removal mechanisms are configured to prevent the iron impurities from entering into the suppression of granulation chamber.
4). The cooking time and result are highly improved by the extended stainless steel feeding conditioner with the axial inlet steam.
5). The circulating lubrication oil system is specially designed to ensure the bearings in good condition.
6). The ordinary conditioner, thermal insulation conditioner or double-shaft differential conditioner are options according to your requirements.
4. technical parameters of animal feed pelletizer
Model |
SZLH250 |
SZLH320 |
SZLH350 |
SZLH400 |
SZLH420 |
SZLH508 |
Main Motor Power (kw) |
22 |
37 |
55 |
90 |
110 |
160 |
Conditioner Power (kw) |
1.5 |
2.2 |
2.2 |
3 |
5.5 |
7.5 |
Dia of mould (mm) |
250 |
320 |
350 |
400 |
420 |
508 |
Feeder Power (kw) |
0.75 |
1.5 |
1.5 |
1.5 |
1.5 |
2.2 |
Size of Finished pellets (mm) |
1.5-12 |
1.5-12 |
1.5-12 |
1.5-18 |
1.5-18 |
1.5-18 |
Yeild (t/h) for animal feed |
1-2 |
2-4 |
2-6 |
3-8 |
4-12 |
4-18 |
Main accessories of feed pelletizer machine
Spare part |
Brand Name |
Electric motor |
SIEMENS (Germany) |
Level detector |
Autonics (Korea) |
Crusher Bear (Jiangsu China)ring |
NSK(Japan) |
Pellet machine bearing |
SKF(Switzerland) |
IPC(industrial personal computer) |
ADVANTECH Industrial Controlled Computer (Taiwan) |
position switches |
Omron (Japan) |
Reduction box |
Itc cathay Pacific (Jiangsu China) |

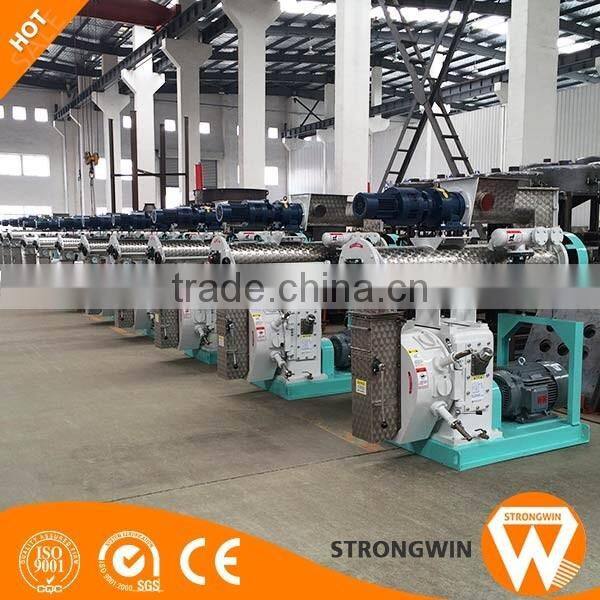

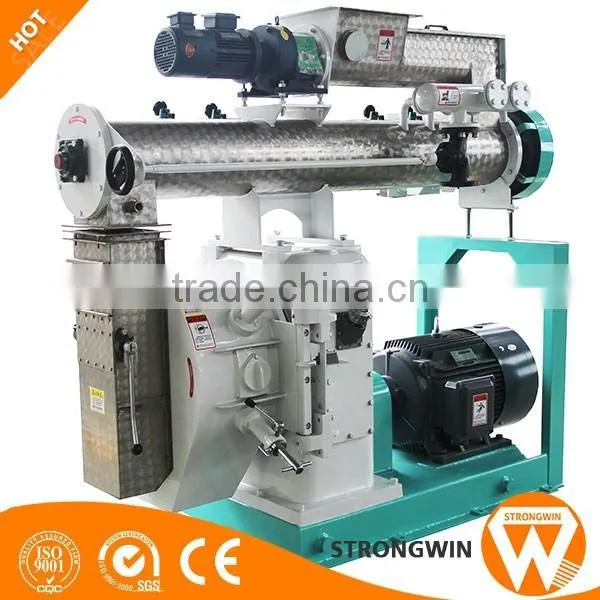

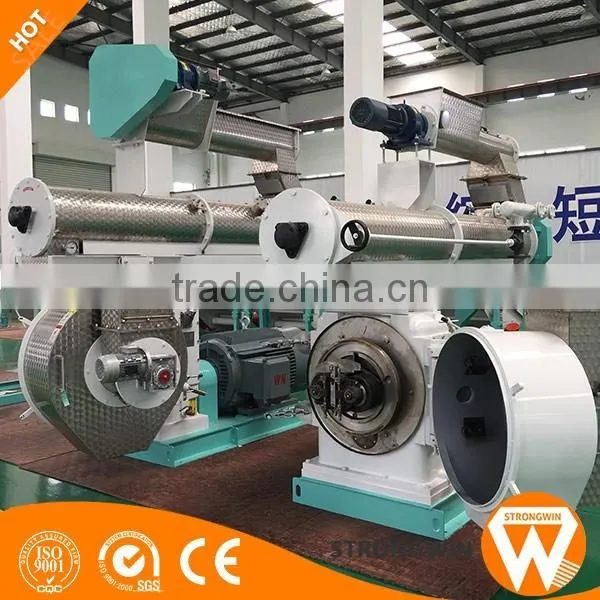

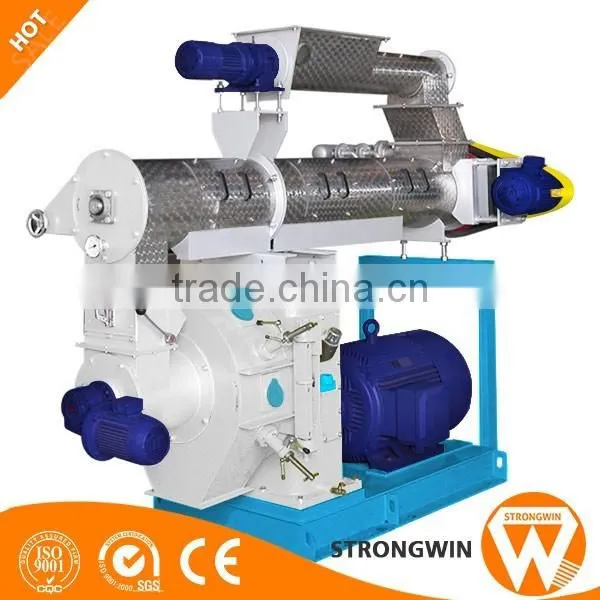

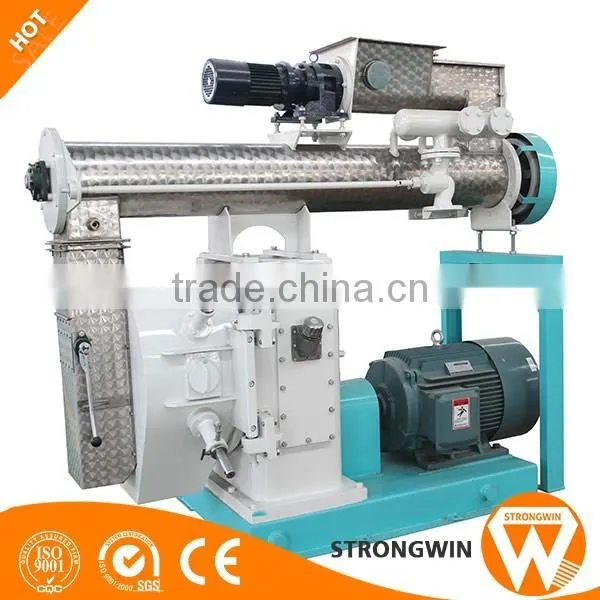

5. feed pelletizer some picture

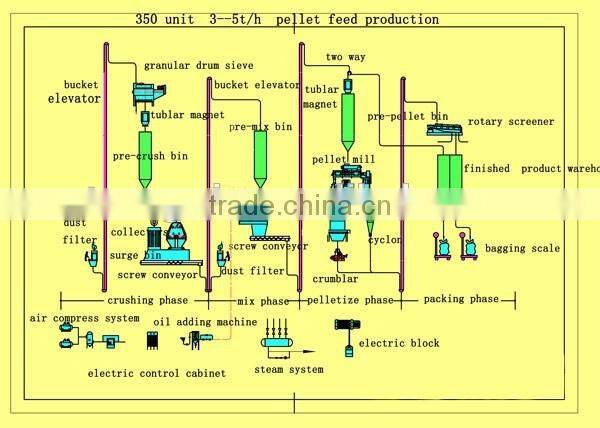

Drawings of the feed pellet production line
6. feed pelletizer Certification

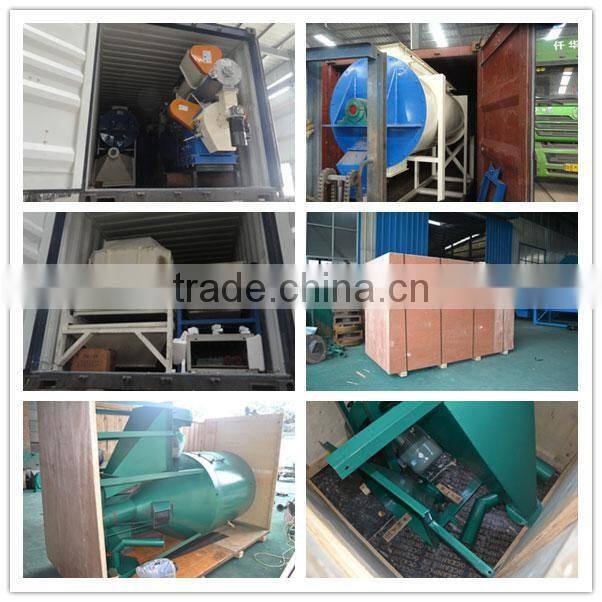

Packing condition for feed pellet processing machine
♥Wooden or metal case according to specific size of each equipment, we twine thick plastic coating for each machine.
♥Tight the equipment in the truck without space to ensure no rubbing during the transportation.
THE REASONS WHY YOU CHOOSE OUR COMPANY
ONE: Pursue the highest level of Feed Processing Machinery in China,encourage customer to inspect machineries by caliper and calculator. Select Siemens Motor,Choose Swedish SKF Bearing.
TWO: Transform factory into university,build the most professional training & trusteeship team in Chinese feed industry,Ensuring that Strongwin Machinery can be running in a healthy condition by remote supervisory control and nanny trusteeship service.
THREE: Material thickness of main equipment is more than feed machinery standard 2mm,you can weigh and contrast -- Please pick up the caliper and calculator to inspect.
The feed pelletizing solutions feature great flexibility. According to different feed types, different output configuration can be customized.
Welcome to Contact us for more information !
