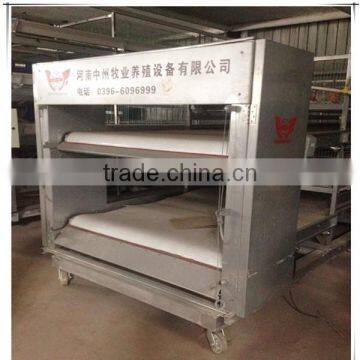

Chicken layer cage used automatic manure removal belts/manure removal system

Specifications

 Chicken layer cage used automatic manure removal belts/manure removal system

Usage : The clean machine primarily for chicken and chicken battery cage.

Working principle: Traction Conservancy machine mainly by the host seat, corner wheels, traction rope, scraping manure plates and other components, the motor drive running gear work, turn the traction through the wheel scraping manure run completed Conservancy board work. With fixed, movable head are two kinds of removable head can be used more than a nose coop buildings and shorten the installation time, save costs and improve efficiency. The Conservancy machine primarily for chicken and chicken ladder cage designed for the high bed of vertical keeping clean septic systems, each cage or broiler for 2-3 out of high bed gutters, scraping manure plate width according to customer design ditch the size of the dung.

Product formation:

This machine consists of frame, the motor, drive mechanism, traction rope (hemp rope, wire rope, chain), scraping dung plate, anchor bolt, electrical system.

1. the frame:

Frame is designed by engineers have many years of experience in structural design, reasonable structure, large carrying capacity, strong impact resistance, structural deformation, etc.

The frame is made of high quality gb steel welded together.
2. the power mechanism:
Walking power system with advanced by vertical motor cycloidal reducer drive, drive lossless. Low failure rate, long life, and smooth operation, low noise, reduce noise influence on chicken, improve the rate.

3. transmission mechanism:

By the chain wheel, chain of passive, active rope wheel, rope wheel.
Sprocket by high quality 45 # steel forging, after the adoption of advanced numerical control equipment, after high-frequency heat treatment, fully improve the sprocket wheel strength and abrasion resistance.Chain in national high quality famous brand (the shield) high tensile strength, good abrasion resistance.
4. traction rope:

have anticorrosive, wear-resisting, tenacity, anti-aging, tensile, long service life, etc.

5. Dung plate shave:

dung plate made of Q235 material, with a standard European technology is adopted to improve the surface of galvanized surface, has high anticorrosion.Flexible flip, flip Angle is big, clean shave dung, low failure rate.

6. Electrical system:

electrical components adopt national standard parts assembled.

Features:

1.The safe operation of equipment ,continuous traction rope,long service life.

2.It is can be realize unmanned management,automatic timing dung,arbitrary time settings.

3.Temporary nightsoil manually,easy operation, automatic manual arbitrary transformation.

4.The multistage power transmission, increase friction,powerful.

5.Dung board design, automatic scraper,release plate is adjustable,friction small,nightsoil clean

6.380v three-phase power supply power output.

7.A host can run 1--4 dung plate, scraping manure longest trip of 140 meters.

Manure removal system used for A and H type chicken cage

Note: Other size we can design according to your request.This all basic size.

 Other related poultry equipments for your reference

Automatic Feeding system

1.Hot-dipped galvanized material,make the durability 15-20 years,never go rustiness.

2.Each row has an independent feeding machine,easy to operate,and the maintenance rate is very low.

3.Full-automatic control,greatly labor-saving,one person can feeding all the birds in 10-15 minutes.

Automatic Egg-collecting system

1.Endwise Power drive system:

2. Egg collection belt

3.The utility model has the function of preventing eggs from falling off and being broken, reduces the labor and material expenses

Wet pad cooling system

1.automatic processing technology,corrosion resistance strong;

2.reasonable blade angle can make the air at an optimum level ;

3.shutter closed after the rainproof,dustproof,anti foreign body;

4.safety net with built in motor,convenient disassembly.

Product Flow

Customer's visit

Loading container

FAQ

1.Q: Are you the direct manufacturer or trading company?

   A: We are the direct manufacturer for near 20 years.

2.Q: Can the products be customized?

   A: We can produce the products according to your detailed requirements.

3.Q: What's the MOQ of the products?

  A: we always suggest you the economic quantities for you to save your budgets.

4.Q: What is the material of the cages and what is the thickness of the wire?

  A: Our cages have cold galvanized wire kind, and hot galvanized wire kind. Different parts of the cage, we make the different  wire diamater, they ranges from 3.6 to 2.3.

5.Q: Do you have other poultry equipment?

   A: We have feed silo, warm furnace, temperature controller, medicine adding machine,incubator, feedmill, egg tray and so on.

 Company profile

   Henan Zhongzhou Animal Husbandry Breeding Equipment Co., LTD is one of the largest automated animal husbandry breeding equipment manufacturing enterprises in China, Establish in 1998, located in xiping country, Henan province, Near 107 state road, nest to Beijing-Guangzhou Railway and Beijing-Zhuhai Expressway, so the transportation is convenient.

    Our company has strong technical power, advance machinery and equipment, superb production technology logy, has more than 30 senior experts, engaged in the research and development of new products, to create the best products in domestic and overseas first-class industry. From 2012, Pioneered the use of Electrostatic plastic spraying automatic production line, Completely solve the hot galvanizing is not smooth, cold galvanizing short life and the environment pollution problem. We produce all of the automatic system for chicken, pigeon and quail. The products sell well in the whole China and export to Africa, Southeast Asia and middle east. Our company awarded Good Faith Business Units, quality trustworthy organization.

   Welcome customer from all over the world to visit our factory. We are looking forward to establishing long-term business relationships with you. Zhongzhou will offer the best services for you.

What we can provide for your poultry house:

*Poultry farm design;

*Research&Development as per your special requirement;

*Excellent poultry equipments installation:

Cage,Feeding,Drinking,Manure Cleaning,Egg Collection,Ventilation&Cooling,Environmental Controlling System,and others.

*First-class after-sale service

If you are interested in our chicken breeding equipment,please feel free to contact me,I shall be pleased to send you our catalogue and best price.Following are our contact information.
