automatic chicken manure removal system for hot sale

 Labor and time saving  automatic chicken manure removal

system for sale

Usage : The clean machine primarily for chicken and chicken ladder cage.

Working principle:  Traction Conservancy machine mainly by the host seat, corner wheels, traction rope, scraping manure plates and other components, the motor drive running gear work, turn the traction through the wheel scraping manure run completed Conservancy board work. With fixed, movable head are two kinds of removable head can be used more than a nose coop buildings and shorten the installation time, save costs and improve efficiency. The Conservancy machine primarily for chicken and chicken ladder cage designed for the high bed of vertical keeping clean septic systems, each cage or broiler for 2-3 out of high bed gutters, scraping manure plate width according to customer design ditch the size of the dung.

Product formation:

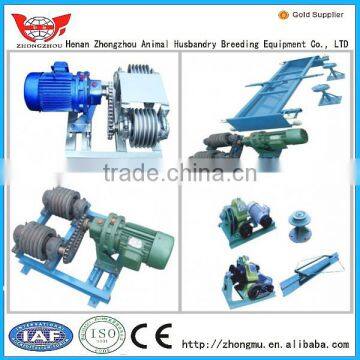

 This machine consists of frame, the motor, drive mechanism, traction rope (hemp rope, wire rope, chain), scraping dung plate, anchor bolt, electrical system.

 1. the frame:

Frame is designed by engineers have many years of experience in structural design, reasonable structure, large carrying capacity, strong impact resistance, structural deformation, etc.

The frame is made of high quality gb steel welded together.

2. the power mechanism:

Walking power system with advanced by vertical motor cycloidal reducer drive, drive lossless. Low failure rate, long life, and smooth operation, low noise, reduce noise influence on chicken, improve the rate.


3. transmission mechanism:

By the chain wheel, chain of passive, active rope wheel, rope wheel.

Sprocket by high quality 45 # steel forging, after the adoption of advanced numerical control equipment, after high-frequency heat treatment, fully improve the sprocket wheel strength and abrasion resistance.Chain in national high quality famous brand (the shield) high tensile strength, good abrasion resistance.

4. traction rope:

 have anticorrosive, wear-resisting, tenacity, anti-aging, tensile, long service life, etc.

5. Dung plate shave:

 dung plate made of Q235 material, with a standard European technology is adopted to improve the surface of galvanized surface, has high anticorrosion.Flexible flip, flip Angle is big, clean shave dung, low failure rate.

6. Electrical system:

electrical components adopt national standard parts assembled.

Features:

1.The safe operation of equipment ,continuous traction rope,long service life.

2.It is can be realize unmanned management,automatic timing dung,arbitrary time settings.

3.Temporary nightsoil manually,easy operation, automatic manual arbitrary transformation.

4.The multistage power transmission, increase friction,powerful.

5.Dung board design, automatic scraper,release plate is adjustable,friction small,nightsoil clean

6.380v three-phase power supply power output.

7.A host can run 1--4 dung plate, scraping manure longest trip of 140 meters.

 Advantages of manure removal system

 1.Transporting the chicken manure to the truck directly, ensure good environment of the chicken house.

2.Hot-dipped galvanized scraper blade,the durability is 15-20 yearsnever go rustiness.
