15PPM BILGE WATER SEPERATOR OF MAXPOWER
Overview:
15ppm Bilge Water Separator is designed and manufactured according to IMO resolution MEPC.107(49), Guidelines and Specifications for Pollution Prevention Equipment for Machinery Space Bilges of Ships. This device is used for the treatment of bilge oil-water mixture without sediment of various ships and separating oil and water of mixture.
With compact structure, small size and light weight, this device provides large treatment capacity and high reliability, as well as being able to be operated and maintained easily. This machine is provided with auto/manual heating, automatic effluent discharge, automatic alarm and automatic recording of the operating procedure. When used as need can be auto/manual switch and convenient to discharge oil manually.
Classification society certificates:
IMO,CCS,EC,USCG,etc.
Description:
1.It is composed of separator, special-purpose, electric control box, 15ppm bilge alarm device, suction filters and other popelines, valves and fittings.
2.The separator adopts three-stage oil filtering mode.
3.The separated dirty oil is collected in the top of oil-filtering room.When the collected dirty oil reaches certain amount, it will be automatically discharged to the dirty oil tank.

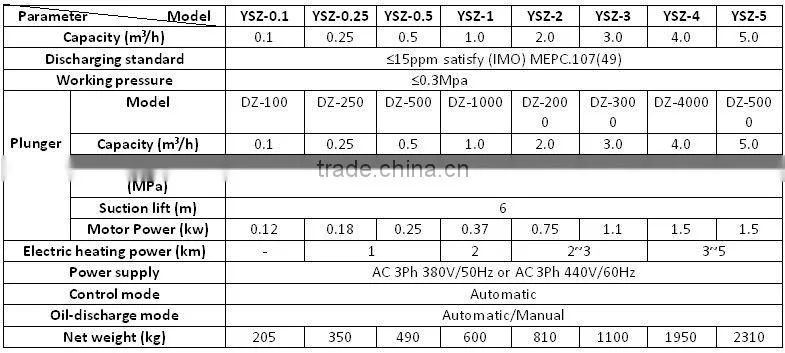

Main Technical Parameters:
Structure:
Basic dimentions:
System principle drawing:
Application field:
The device is equipped with passive alarm signal interface to provide remote control signal, and it is especially suitable for a high degree of automation of ship.
