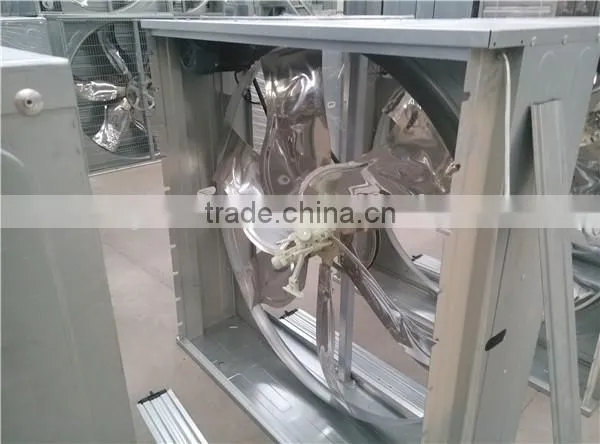

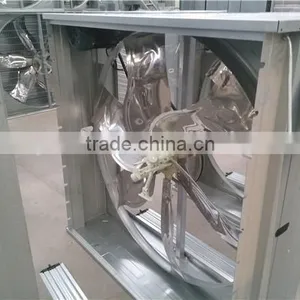

greenhouse Exhaust Fan with Light Aluminium Shutters
- 1000 Set / Sets per Month
- Shanghai
- T/T
Product Details
Size: | Large | Type: | Other, Multi-Span Agricultural Greenhouses, axial flow/circulation type | Cover Material: | Other, aluminium sheet |
Model Number: | MP-series | Place of Origin: | Chongqing, China | Brand Name: | MAXPOWER |
Material: | Other, Stainless steel |
Packaging Details
standard packages
Product Description
Specifications
1.Less Investment
2.Larger Effectiveness
3.Power Saving
4.Strong Cooling Effect
5.Superior Air Quality
greenhouse Exhaust Fan with Light Aluminium Shutters
Overview
Frame: frames are made of galvanized board, thickness 1.0mm, galvanizing layer 180g/square meter.
Blade: 6 pieces, material tainless steel, mirror face.
Impeller: casting aluminum alloy impeller.
Bearing of impeller:permanently sealed bearing.
Blade tip clearance: 25mm, mirror face.
Inlet wind protecting net: spraying paint steel wire, thickness 2.8mm.
Electrical motor: aluminum alloy frame motor, IP55, class F, efficiency 90%, top/foot mounted,
Motor bearing: national grade.
Belt: V-belt
Shutters, galvanized board, 0.8 mm thickness while the middle piece thickness 1.0mm. Galvanizing layer ,120g/square meter.
Opening system, nylon material, brown color and black color.
Rivets: aluminum alloy and stainless steel rivets.
Cable: Strong robber wire.
Tensioner: plastic or aluminum.
Warranty : 1 year for the whole machine.
Exhaust fans
Model | Blade Dia.(mm) | Power (kw) | Air Volumn m³/h | Frame Size | ||
H. mm | W. mm | T.mm | ||||
SLC-FJ750 | 750 | 0.55 | 28000 | 900 | 900 | 400 |
SLC-FJ900 | 900 | 0.55 | 30000 | 1000 | 1000 | 400 |
SLC-FJ1000 | 1000 | 0.75 | 32500 | 1100 | 1100 | 400 |
SLC-FJ1100 | 1100 | 0.75 | 38000 | 1220 | 1220 | 400 |
SLC-FJ1250 | 1250 | 1.1 | 42000 | 1380 | 1380 | 400 |
SLC-FJ1400 | 1400 | 1.5 | 55000 | 1530 | 1530 | 400 |
Model | Blade Dia. mm | Power w | Air Volumn m³/h | Frame Size mm | |
SLC-HL400 | 400 | 150 | 3900 | 430×400 | |
SLC-HL500 | 500 | 150 | 5400 | 530×400 |
Features
1.Frame and blades made of glass fiber reinforced plastic material (high strength steel) one piece, acid corrosion.
2. Aluminum efficient motor, 0.75KW, energy efficient.
3.Direct drive, no belts, provincial trim, maintenance-free.
4. Four-point fixing bracket, motor fixed more firmly.
5.machine with stainless steel screws, anti-corrosion, acid and alkali.
6. Using PVC blinds, anti-rain, anti-mosquitoes.
7. Using the safety net, and to prevent foreign invasion, to increase security.
8.Features a waterproof tank, fell into the hole to prevent water intrusion.
Greenhouse equipment CHOOSE
Chongqing Maxpower Machinery Co., Ltd.
Why choose us
1. We consistent good quality with reasonable price.
2. Good company, good reputation, more reliable.
3. Responsibly Delivery
4. Considerable after-sales service.
Focus to the satisfaction and success of our clients!
Maxpower Machinery Co., Ltd. is a manufacturer and trader specialized in the research, development and production of environmental protection products. We are located in Chongqing, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.
We also provide all kinds of greenhouse equipment,contact us for more details.
Company Profile
Maxpower Machinery Co., Ltd. is a manufacturer and trader specialized in the research, development and production of environmental protection products. We are located in Chongqing, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients in the near future.
