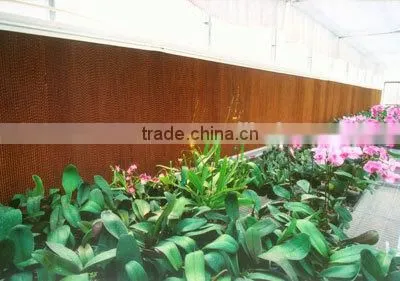

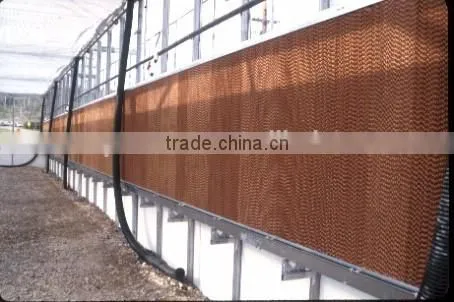

cooling pad paper for greenhouse cooling system
Overviw
The best environment for growth is in the temperature of 20-25℃ and in the humidity of 50-75%. In hot summer, the temperature in the greenhouse can be 10-20℃ higher than external temperature, which harms the growth a lot or even burns the plants. By long time development, we finally got an efficient, stable and economic way to cool the greenhouse in hot weather—The Cooling Pad-Fan system.

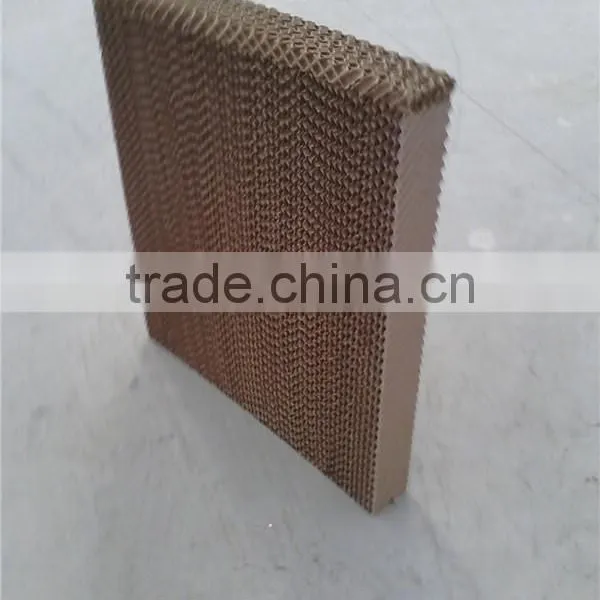

Cooling pad
Structure:honeycomb
Material:special kind of corrugated fiber
Working principle:when water evaporation the heat absorbed
water will be formed water film on the surface of the corrugated fiber cooling pad,when the air flow through the cooling pad,water film absorbs heat and evaporation,then the heat will be carried away.Temperature will be decreased after the air through the cooling pad.
Type:7090 6090 5090

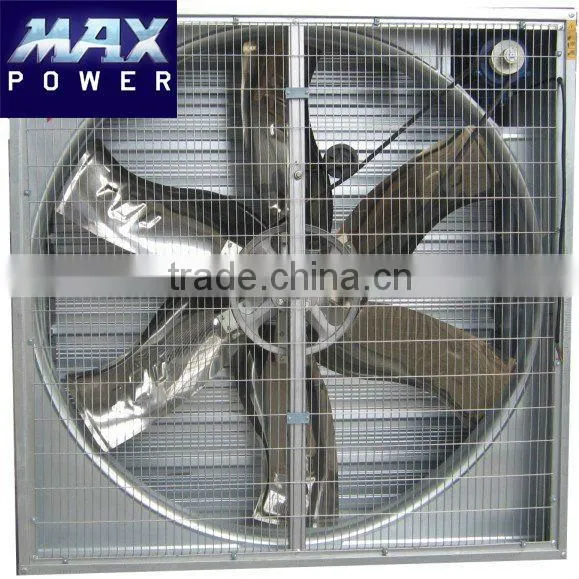

greenhouse fan
Push-pull type fan
Shutter: The shutter of the automatic control system ensures the automatic open and close to the wind and rain.
stainless steel shutters Non-defrmation,low noise.
Moter: High efficiency and energy saving motor
Protection grade: IP55 Insulation grade: F grade
Belt: V-belt automatic tension bridle device prevents the belt frome loosing and falling off.Also provide A-type and B-type belt for custom-made.
Parts: It has mechanical and centrifugal open structure with high toughness reinforced nylon, 100% raw material injection molding processing, high strength and strong life
Parameter
| fan blade diameter(mm) | fan blade revolving speed(r/m) | motor revolving speed(r/m) | air volume (m³/h) | pressure (pa) | noise (db) | input power (W) | voltage rating (V) | height (mm) | width (mm) | thickness (mm) |
| 1000 | 600 | 1400 | 35000 | 70 | ≤70 | 750 | 380 | 1100 | 1100 | 450 |
| 1250 | 439 | 1400 | 43000 | 56 | ≤70 | 1100 | 380 | 1380 | 1380 | 450 |

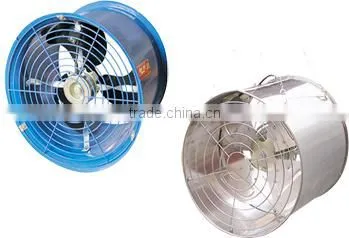

air circulation fan
1.Stainless steel shell, big air flow, long lifespan;
2.Stable performance, low noise, low power consumption.
How to cooling the temperature

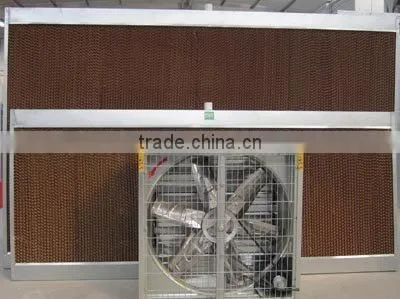

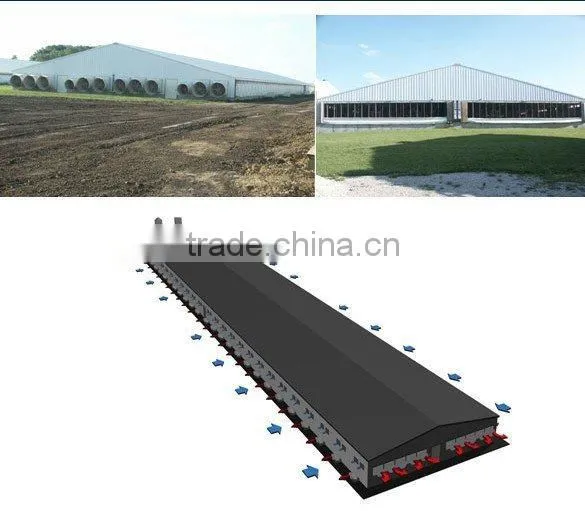

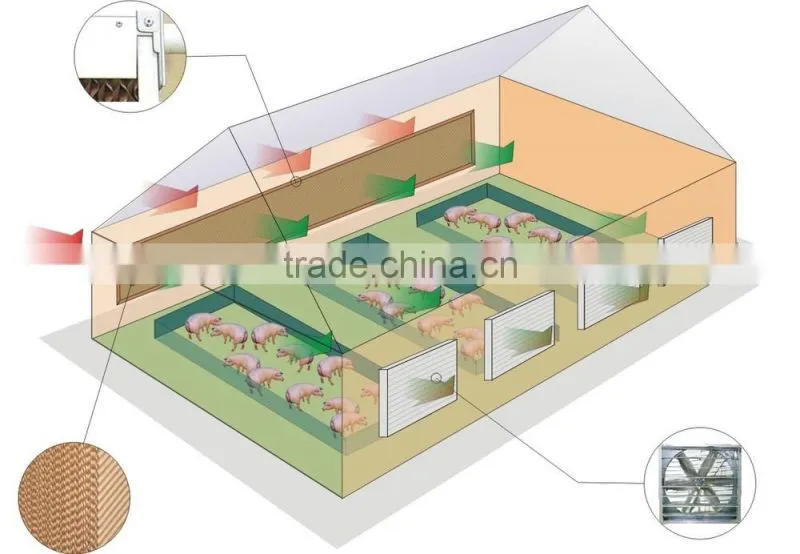

This cooling pad-fan system reduces the temperature by evaporation. It consists of cooling pad, pump and exhaust fans with high volume. The cooling pad is corrugate shaped, which has great capability to absorb enough moisture. When the external hot air goes through the cooling pad, the evaporation occurs on the pad surface and creates cool and wet air, which finally cools the entire greenhouse.
Greenhouse equipment CHOOSE
Chongqing Maxpower Machinery Co., Ltd.
Why choose us
1. We consistent good quality with reasonable price.
2. Good company, good reputation, more reliable.
3. Responsibly Delivery
4. Considerable after-sales service.
Focus to the satisfaction and success of our clients!
Maxpower Machinery Co., Ltd. is a manufacturer and trader specialized in the research, development and production of environmental protection products. We are located in Chongqing, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world. More details
We also provide all kinds of greenhouse equipment,contact us for more details.
