diesel engine or electrical motor poultry feed pellet machine

Specifications

feed pellet machine:
High efficiency and Easy operation
Energy saving and low consumption
High density&forming ratio

diesel engine or electrical motor poultry feed pellet machine :

Product Description
Introduction of Flat Die Feed Pellet Machine:
Flat Die Pellet Machine is an original machine for animal feed. This machine is equipped with high quality die and rollers and has advanced technology. For driving system we use double motor V belt, which is of little space occupation, uniform stress, simple structure and easy operation. Users can change motor and die to meet the needs of different production capacities and specs, thereby obtains ideal technology and economy effect.

Application of Flat Die Feed Pellet Machine:
This machine is designed to process animal feed, stalks, straw, rice husk, bark, etc into high density pellets which are convenient for storage and transportation. Animal feed pellets are to raise livestock.

Feature of Our Flat Die Feed Pellet Machine:
The gears of the gearbox are made of high quality alloy steel. After case hardening, carburizing and grinding processes, the gears obtained advantages like smooth transmission, low noise, high bearing capacity, low temperature rise and long useful life.

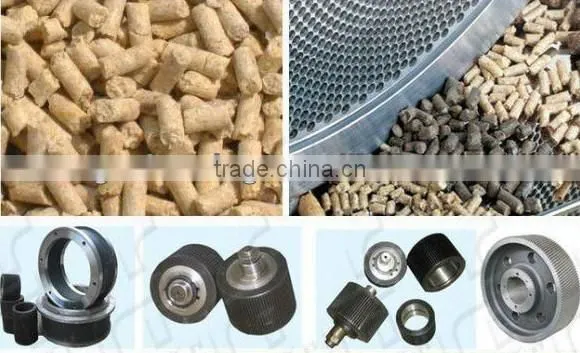

Both the roller and the flat die have passed wear resistant process. The two side of the flat die is exchangeable, which extended the useful life of the machine.

Technical Parameter of Flat Die Feed Pellet Machine:

MODEL	CAPACITY (KG/H)	POWER	N.W./G.W.  (KG)	OVERALL DIMENSION (MM)
ZLSP120A	75-100	6-8hp	120 / 140	900×440×730
ZLSP120B	75-100	2.2-3kw	80 / 100	710×390×910
ZLSP150A	100-150	8-12hp	180 / 220	870×440×700
ZLSP150B	90-120	4kw	95 / 115	750×350×650
ZLSP200A	250-300	15-18hp	210 / 240	1000×460×900
ZLSP200B	200-300	7.5kw,	200 / 230	1000×430×950
ZLSP230A	300-400	22-24hp	280 / 310	1180×560×1020
ZLSP230B	300-400	11kw	290 / 320	1140×470×970
ZLSP260B	400-600	15kw	330 / 360	1200×500×1070
