Biomass pellet machine/pellet machine for wood
The line include:Wood crusher--Air flow dryer--Wood pellet manufacturing lines---Cooler---Packing machine
1.Pellet machine for wood is mainly used for press various biomass raw material in to wood pellet,such as:sawust,straw,manure,rice husk,peanut shell,grass,alfalal,leaves,palm fiber,efb,bamboo,etc.
2.Wood pellet size from 6-10mm,flat die wood pellet machine usually for home use or small wood pellet factory with advantage of high capacity and low cost investment.
3.Engine can be electric or desiel.
4.Capacity range from 40kg/h-2000kg/h.Our wood pellet machine with reducer,which make sure the motor can transmission enough strength to reducer,make sure the pellet forming and with big density .
Finished pellet:
1.Reducer made of high quality alloy steel, surface adopts carburizing and quenching treatment, precision machining by grinding, smooth, transmission, low noise, large capacity, low temperature rise, long life etc.
2.Shaft with a heavy thrust bearing, support axial force, long lifespan.
3.Flat die has both sides, long service life.
4.Pellet machine with big diameter roller,big capacity,high pelleting rate.
5.All bearings are sealed which can prevent dust, make sure it work at suitable temperature,extend the life time.
Technical data of pellet machine for wood
Model | Power (kw) | Capacity (kg/h) | Flat die Dia. (mm) | Dimension (mm) | Pellet Dia. (mm) |
FX-120 | 2.2 | 40-60 | 120 | 550*300*710 | 6-12 |
FX-200 | 7.5 | 110-140 | 200 | 850*420*850 | 6-12 |
FX-300A | 15 | 220-280 | 300 | 1200*520*1050 | 6-12 |
FX-300B | 18.5 | 250-300 | 300 | 1200*520*1050 | 6-12 |
FX-350A | 22 | 300-360 | 350 | 1270*580*1150 | 6-12 |
FX-400 | 30 | 400-500 | 400 | 1350*600*1200 | 6-12 |
FX-500 | 55 | 700-800 | 500 | 1700*750*1450 | 6-12 |
FX-600 | 90 | 1200-1300 | 600 | 2100*900*1650 | 6-12 |
FX-700 | 132 | 1700-1800 | 700 | 2400*1050*1870 | 6-12 |

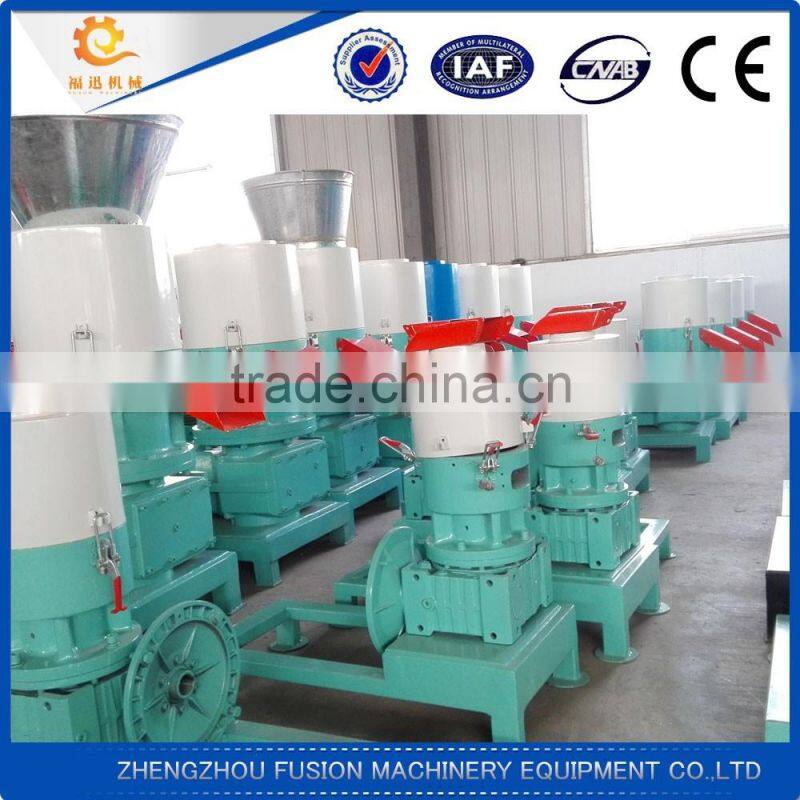

Photos of pellet machine for wood

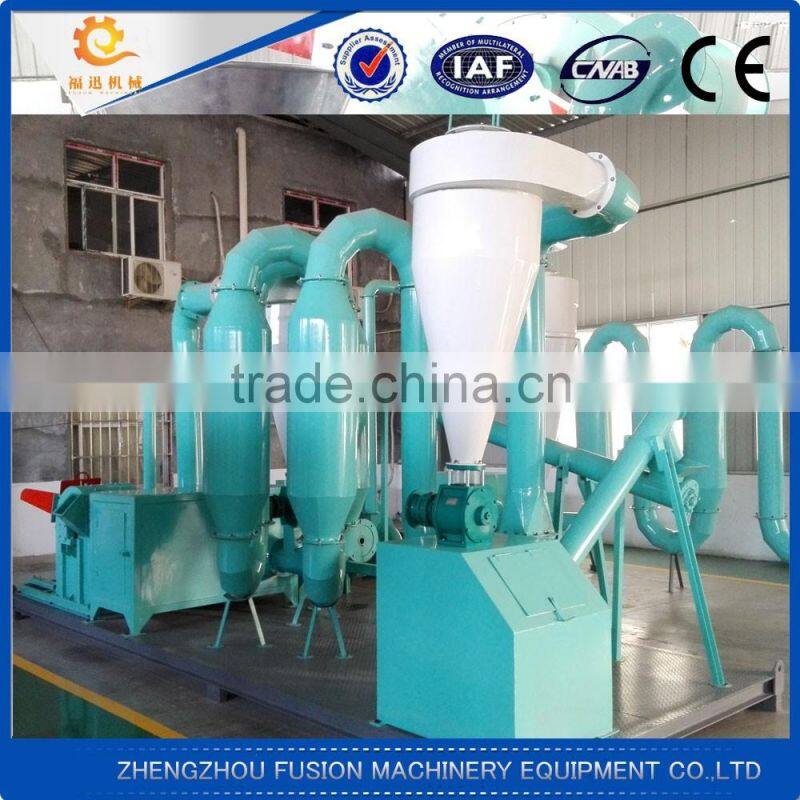

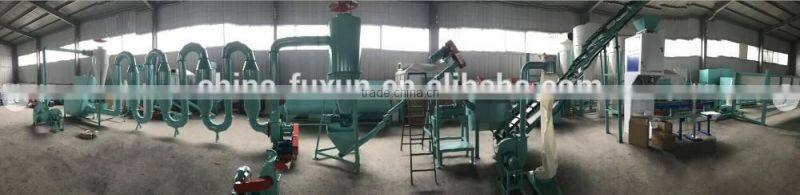

Small Wood pellet manufacturing lines

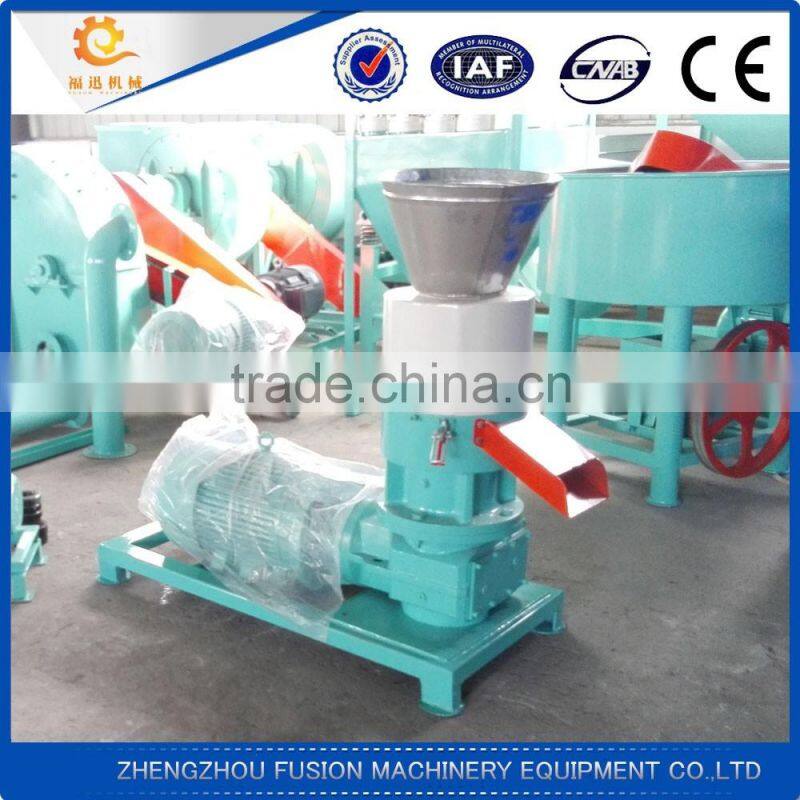

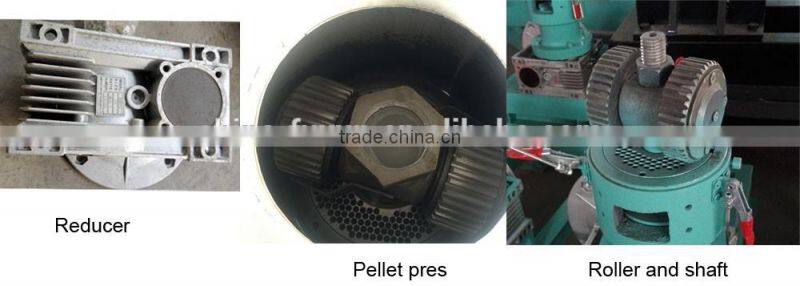

Detail photos (Every flat die biomass pellet machine must with reducer)

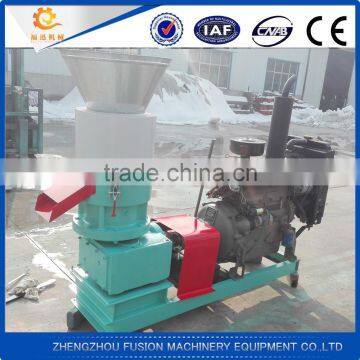

Small diesel engine pellet machine for wood
Big diesel engine wood pellet machine

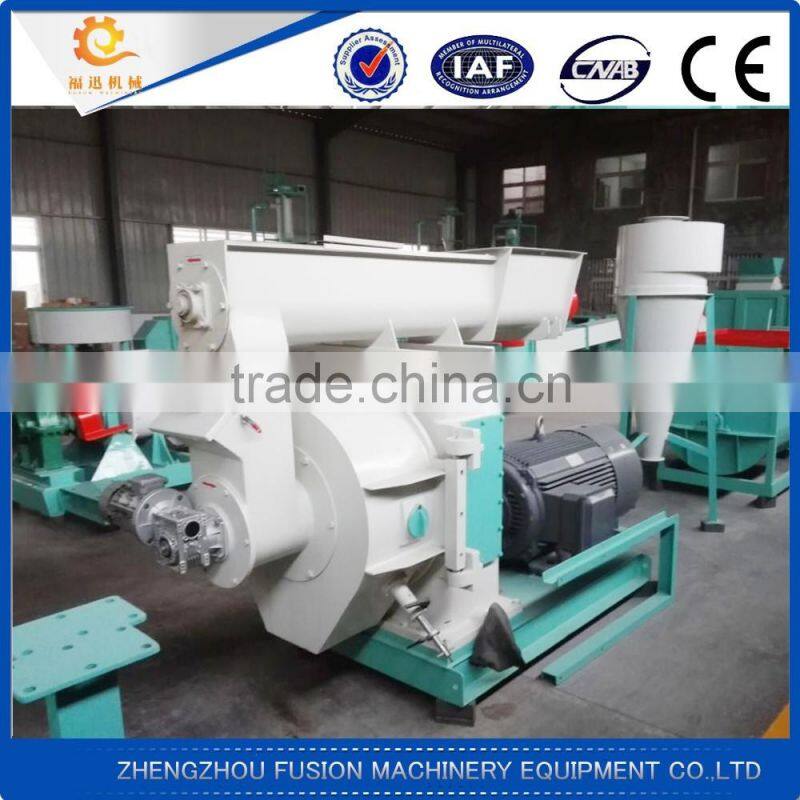

Ring die wood pellet machine(Reducer screw feed )
Model | FX-350 | FX-420 | FX-508 | FX-558 | |
Capacity | 0.4--0.6t/h | 0.8--1.4t/h | 1.5--2.0t/h | 2.5-3.0t/h | |
Main Power | 55 kw | 90 kw | 132 kw | 160 kw | |
Force feeder power | 1.1 kw | 1.5 kw | 1.5 kw | 1.5 kw | |
Feeder power | 1.1 kw | 1.5 kw | 1.5 kw | 1.5 kw | |
Die Diameter | φ350mm | φ420mm | φ508mm | φ558mm | |
Dimension(m) | 2.2*0.9*1.5 | 3.2*1.1*1.7 | 3.2*1.3 *1.9 | 3.5*1.5*2.8 | |
pellets size(mm) | φ6.0,φ8.0,φ10.0,φ12.0 | ||||

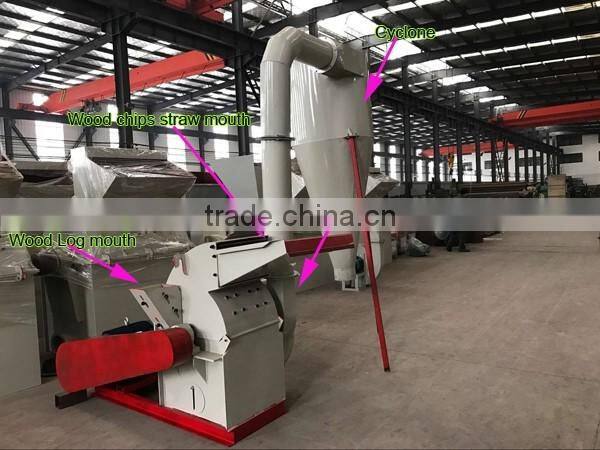

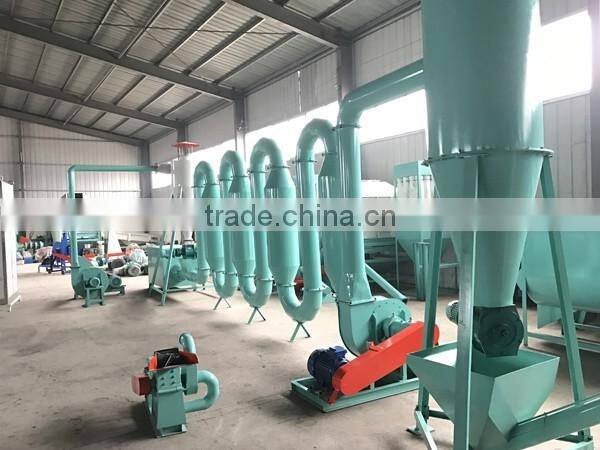

Air flow dryer Wood crusher and hammer mill

Welcome to contact us more detail of our pellet machine for wood.
