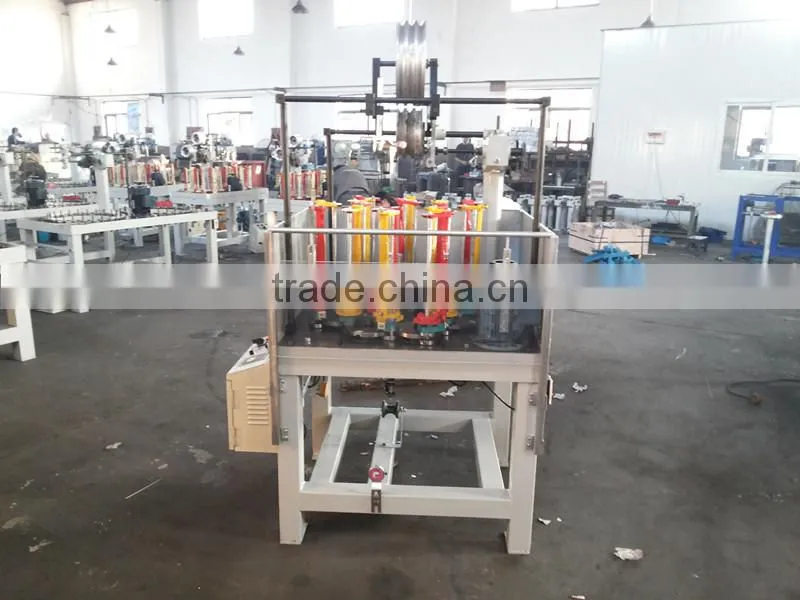

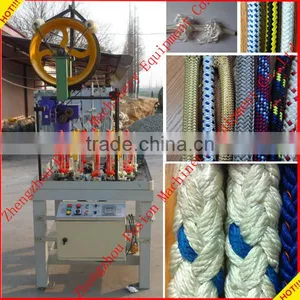

16 spindle Cheap high speed round/flat rope braiding machine

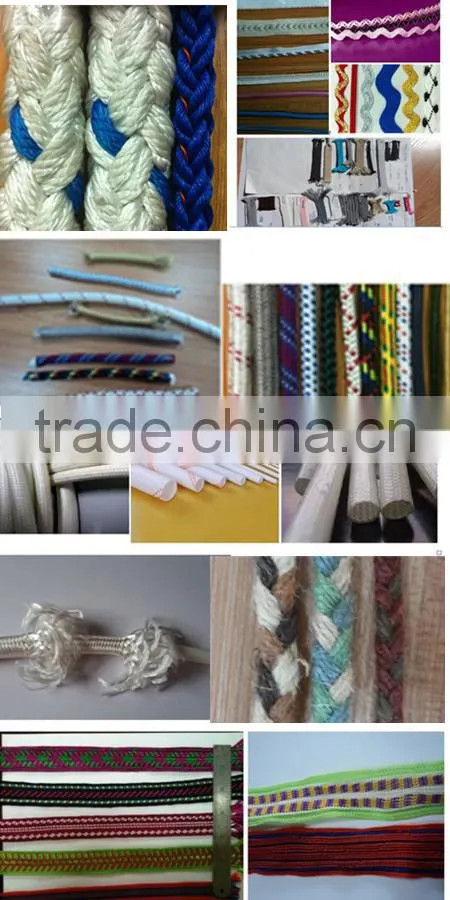

Knitting application of high speed rope braiding machine
1 cable, fire rope, climbing rope, and other strong rope, marine rope, safety rope, fishing net rope.
2 clothing accessories rope, sofa side ropes, rope gift bag, bedding with rope, lace rope.
3 pet rope, flagpole rope, climbing rope, pulling ropes, hoisting rope.
4 double-stranded core cable package, outsourcing pipe band, wax rope belt, asbestos rope, decorative rope.
5 flat rope, sling, elastic belt, shoelaces, underwear, belts, and so on.
6 gift bags, high tensile rope, fishing line, fire rope, marine rope, safety rope, fiberglass casing, hollow circular rubber band belt, hollow rope, plus core rope, and so on.
7 each station fancy belt.
8 types of wire, cable, metal hose. For metal wire, copper wire, fiber, such as weaving.
9 wires, cables enhancement layer weave, water heating hose, pressure hose, Qi Mount hose, spray hose, metal hose, rubber hose, explosion, hoses and other high-speed weaving, using woven material costs such as: stainless steel wire , aluminum-magnesium alloy wire, yarn, textile yarn.
10. suitable for gifts with automatic and semi-automatic shoelace header machine.
11 apply cored rope, masks and other fully enclosed with crochet machine.
12 is suitable for all kinds of stainless steel wire, aluminum-magnesium alloy wire, copper wire, textile yarn and so on. So that uniform and orderly arrangement of the wire into the wire winding machine and the spool.
13 automatic and semi-automatic bobbin winding machines.
14 various types of weaving machine accessories.
Control Systems of high speed rope braiding machine
- Inverter control production rate.
- Yarn breakage sensor (if the packages are broken or empty, the machine will automatically stop)
- Speed setting
- Control cabinet
Scope of supply of high speed rope braiding machine
- Machine Control System
- Operation and Maintenance Manual
- Toolbox
Technical data of high speed rope braiding machine
| Model | Spindle Qty | Head Qty | Measurement(mm) | Power (kw) | Max Horngear Speed (rpm/min) | Spindle Type | Bobbin Size(mm) |
| FXD130-16 | 16 | 2 | 1520 X 950 X 1760 | 0.75 | 270 | B | Φ70 X 210 |
| FXD130-24 | 24 | 1 | 1100 X 1100 X 1760 | 1.1 | 270 | B | Φ70 X 210 |
| FXD130-32 | 32 | 1 | 1280 X 1280 X 1760 | 1.1 | 270 | B | Φ70 X 210 |
| FXD130-40 | 40 | 1 | 1280 X 1280 X 1900 | 1.5 | 270 | B | Φ70 X 210 |
| FXD130-48 | 48 | 1 | 1400 X 1400 X 1900 | 1.5 | 270 | B | Φ70 X 210 |
high speed rope braiding machine high speed rope braiding machine high speed rope braiding machine high speed rope braiding machine

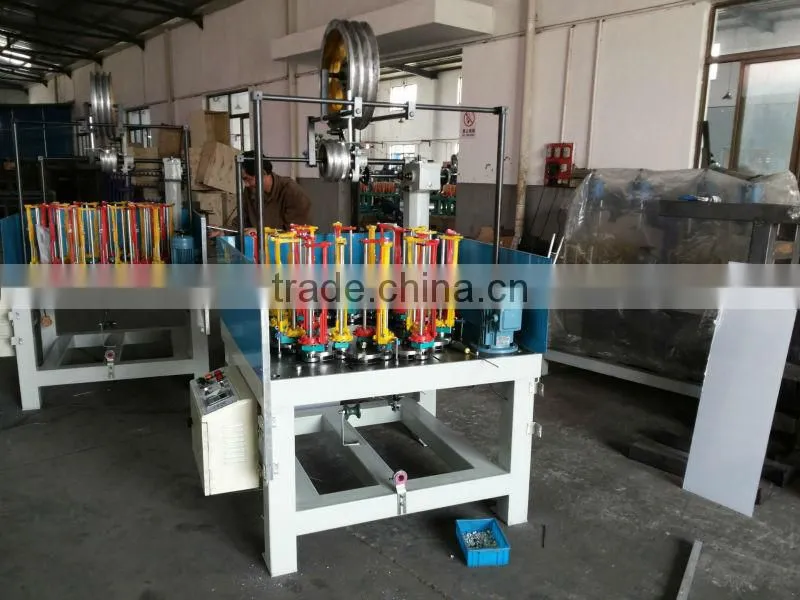

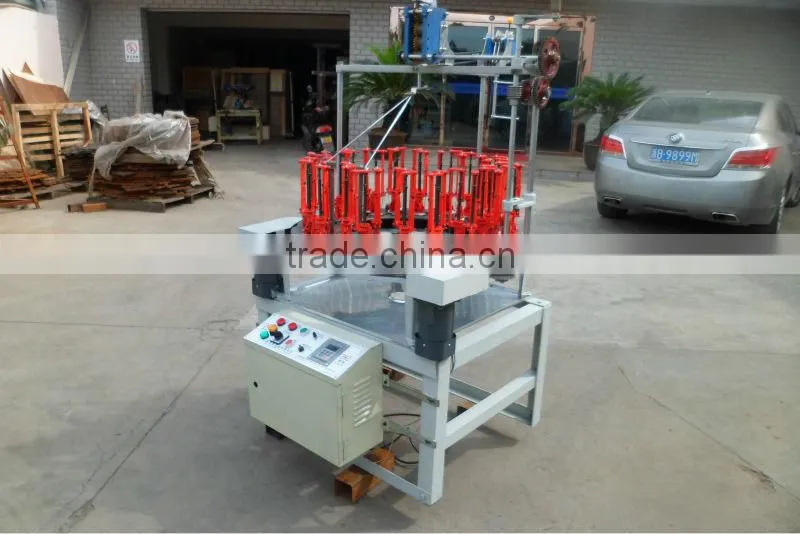

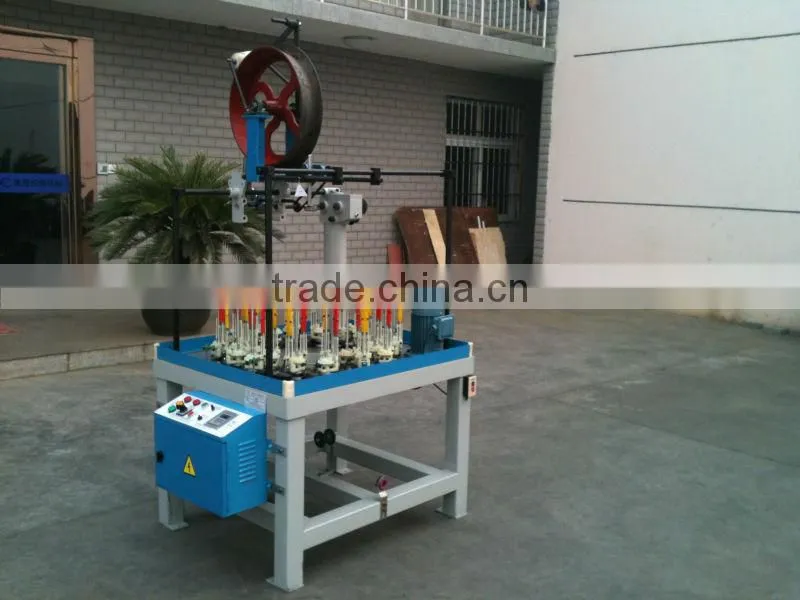

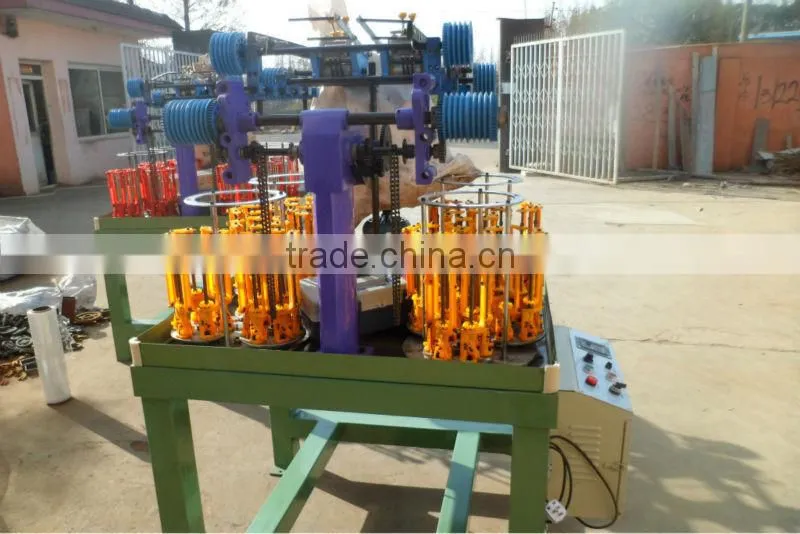

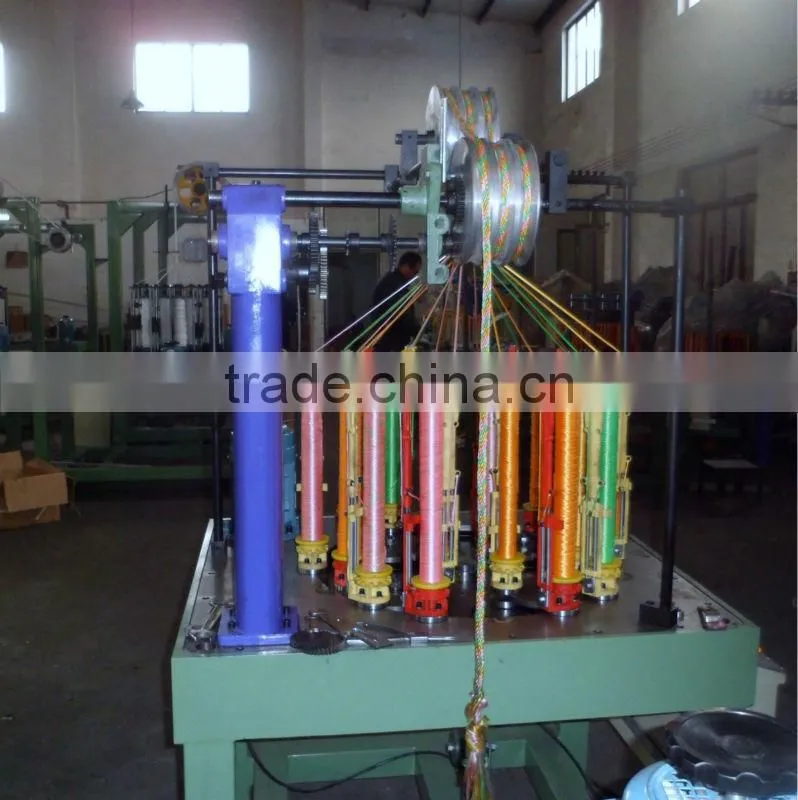

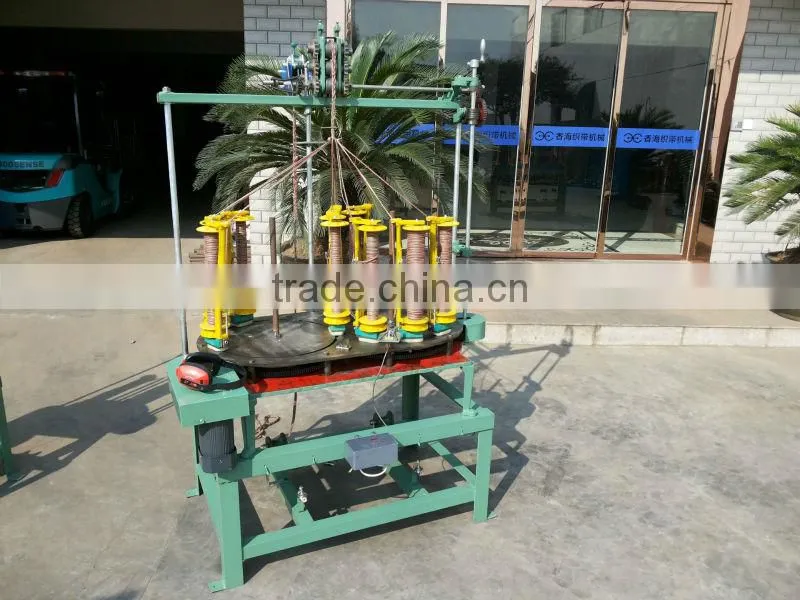

More photoes:

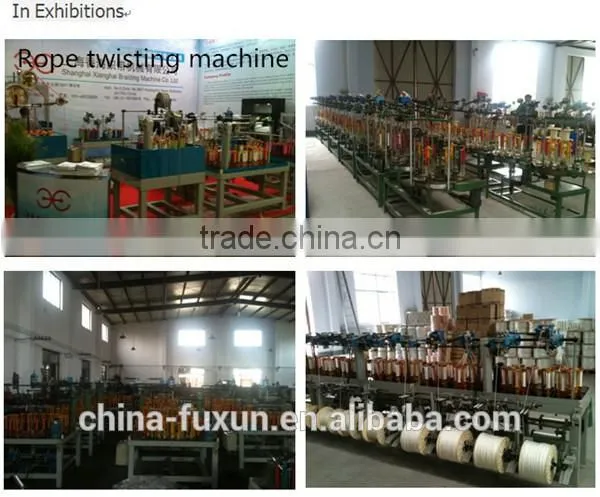

Our strength :

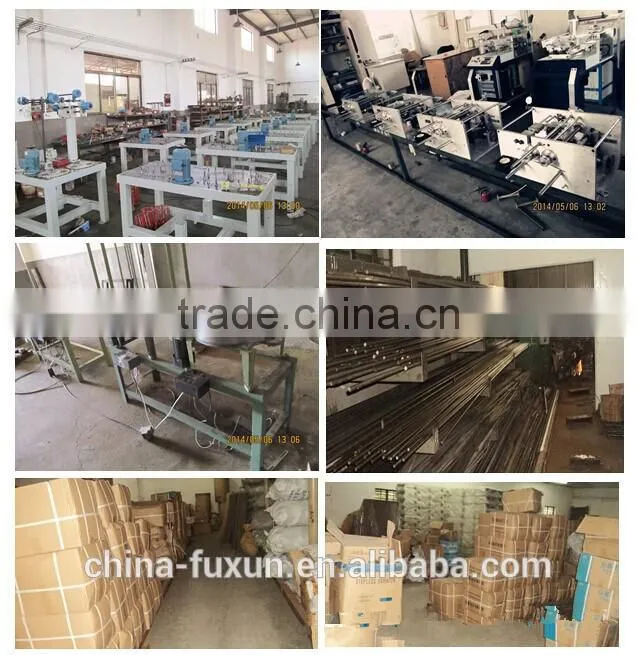

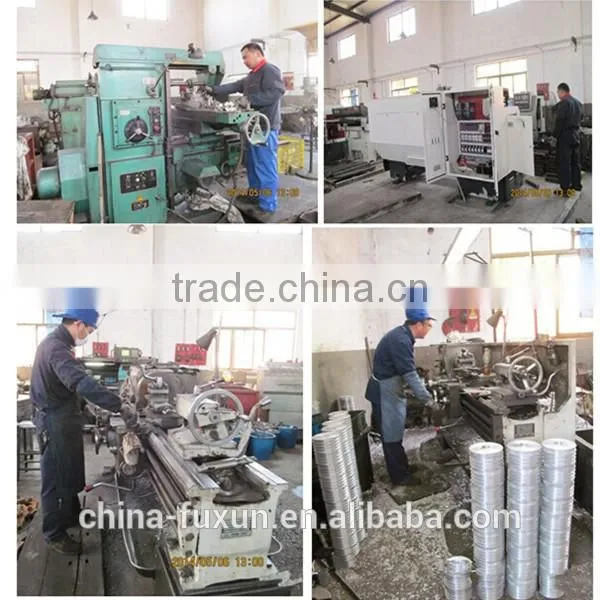

Workshop:
Contact :
