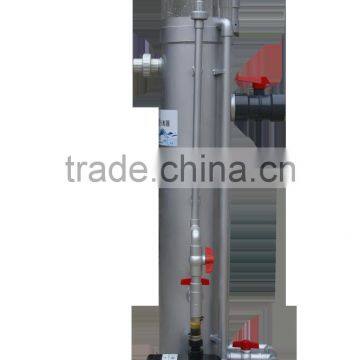

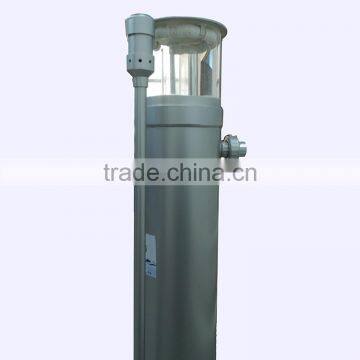

Protein Skimmer(aquaculture,aquarium,large seawater ornamental fish tank)

Application:
1, aquaculture, seedling
2, food processing,
3, seafood temporarily raising and transportation
4, Ocean Park and the aquarium and so on
5, large seawater ornamental fish tank

Protein separator with the effect of bubble surface tension of the adsorption of the organic matter enrichment and separation principle, through an floating air to remove the colloidal suspension and in aquaculture wastewater cellulose, protein, bait and waste residue, such as organic matter.
In the group series protein separator adopts the most advanced electric jet structure to replace the traditional jet device structure, using special motor impeller broken bubble, greatly increased the close degree of bubbles, thus greatly enhancing the working efficiency of the protein separator. Harmful organic particles quickly in drinking water, prevent its decomposition from the water, quickly reduce BOD5, COD and DOC, and reducing load in the next process of biological treatment; Replenish water dissolved oxygen and removing harmful gases; Stable pH value; When trace zone injected , contacting room became the disinfection reaction tank at the same time. Water inlet without setting of pressurized water pump and jet.

the product feature

Nominal flow: 15-30 tons/hour
The reaction tank size: 500 * H1500mm
The average air inflow: > 2000 ml/m
Response time: > 2 m
The input power: 320 w
Inlet diameter: 63 mm
Outlet diameter: 160 mm
Drainage diameter: 25 mm

Qingdao ZHONGKEHAI Recycling Water Aquaculture System Co., Ltd is a high-tech enterprise founded in May 1994, which is specialized in inventing, designing, producing and selling of factory recycling aquaculture system equipments and engineering. Aiming for provide one package service range from equipment manufacturing to installation and commissioning of one set equipment for aquatic laboratory and cultivation on site.

Our products are mainly used for water biological laboratories by universities and research institutions; model biological laboratories by feed enterprises; factory cultivation workshop of large scale cultivation and nursery habitats.

ZHONGKEHAI always provided customers with advanced technology; integrate design program, strict quality control, professional installation and commissioning, as well as thoughtful after-service based on our own scientific background and strong technical backup force in decades. In order to meet customer demand in all aspects, we also design and produce non-standard and special size products.
