Powerician 25KW Solar Agriculture Irrigation Solution Farm Water Supply System Rated Flow 120CBM/h Head 46.5m NO.AK120-46-25K
System Instroduction
Function:
Powerician solar pumping system, is designed to fetch water at those places where need water but beyond utility grid access, such as large scale farm, rural places, islands,undeveloped arears.
Solar pumping system consists of 3 main parts: Solar panels, Solar pumping inverter and AC pump .
It is a off grid system, but no battery.
Applications:
- Farming agricultural irrigation
- Village,town, island water supply
- Desert water supply, and so on.
System Parameters:
Kit NO. |
System Parameters |
Pump Inverter |
|||||
|
Rated Flow CBM/H |
Rated Head M |
Max Flow CBM/H |
Max Head M |
Motor Power W |
Model No. |
Out put W |
|
AK120-46-25K |
120.0 |
46.5 |
150.0 |
55 |
25KW |
PPA-25KH |
25KW 3*380V |
System output:
For solar pumping system:
The system working time is on the basis of the local sunshine , so the the water output quantity will differ with the site location, actually differ with the sun shine condition of the site. We will make the report for you according your projects location information.
With this system(NO. AK120-46-25K),
If the system is installed in Cairo ,Eygpt, The water out will be as below chart .
(Remark: The value is on the basis of the head lift at 46.5 meters)
System Components:
Solar pumping system is a PRODUCT PACKAGE rather than a single product covering products as below:
Solar modules-----The total power depends on the location of site.
Inverter-------------get DC power from solar module, supply AC power to the pump
Pump---------------fetch water from deep tube well
Bracket-------------support and fix solar panels
Wires----------------DC wire connect solar panels to inverter,AC wire connect inveter to the pump.

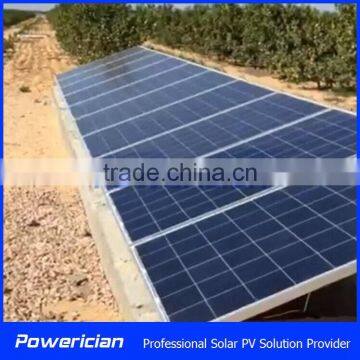

Solar module:
- 250Wp poly solar module,
- +3% power tolarance.
- 10 years manufacturer warrantee
- 15 years 90% our put performance
- 25 years 80%outpt performance.
Inverter:
- Compatible with solar panels, utility grid, diesel generator.
- MPPT input, high efficiency energy utilize.
- Soft start function, do not need large redundancy, lower system cost.
- Integrated DC switch/fuse/SPD unit, lower system cost
- Dry well protection
- Over flow protection
- All electric protection such as over voltage, over current, opisit connection etc.
- IP65 protection for out door installation
Pump:
- High quality deep well/tube well pump
- SS304 as major material
- 1 year warranttee
- 10 years design life span
- High efficiency
- Stable performance
Performance curve like below:
Bracket:
- HDG Q235 solar brackets
- 10 years warrantee and 25 years desin life span.
- Easy to installation
- Total recycleable
Other components will be provided such as stainless ropes, pipes, valves, water quantity meters, pressure meters upon customer`s requirement.
Pumps-------Packed in wood box
Inverter------Cartons on pallet with stretch film
Bracket------Iron bar and stretch film
Wire----------Wood rool
Besides these kits, we calculate and design the whole system with the data as below :
- Required water quantity per day
- Total lift head
- Site location
- Other concerns of customer
After fully communication, we will provide a tailor made solar pumping system to our customers.
Our team has designed and installed dozens of solar pumping system.
We will provide the most suitable system for our customers.
