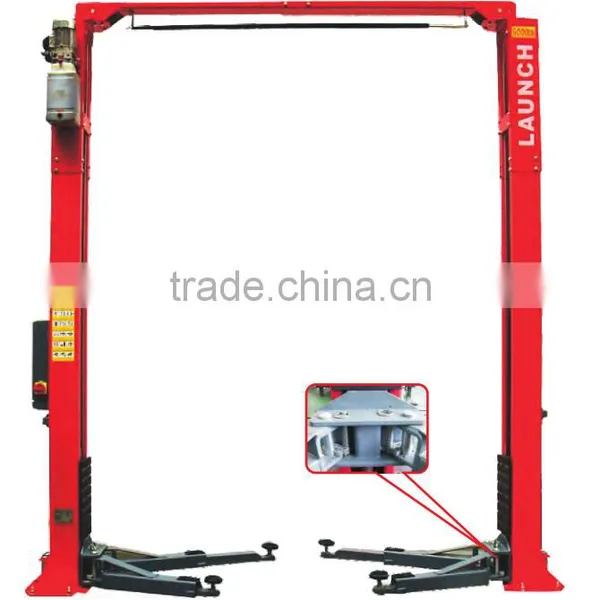

View larger image Launch car lifts TLT240SC(A), double post auto hoist

Packing Dimension:
930*380*500MM and 3560*520*820MM
Cubic Meter: 1.5cbm
Shipping: 36 pieces / 40' container

 View larger image Launch car lifts TLT240SC(A), double post auto hoist

Features:

1. Fully automatic unlocking safety device is adopted for operation only with UP/DOWN button.

2. The cable and oil pipe are fully concealed; with decent and elegant appearance.

3. Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting and lowering.

4. Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle form tilting.

5. 24V low voltage control box (IP54 level) ensures operator’s safety.

6. Cylinder travel limit switch effectively protects cylinder and extends its lifespan.

7. Emergency lowering valve can be manually operated to make lift lower safely in case power is off.

8. Anti-explosion valve is deployed to make lift slower or stop lowering for the case of oil explosion, thus protects operator’s safety and vehicle not being damaged.

8. CE-STOP function with safety alarm beep would automatically warn operators to keep safe distance from lift when it lowers to about 250mm high from ground.

9. Door rubber pad protects car door from being damaged in collision.

10. More lifting pads with different height meets the requirements for light lorries and SUVs.

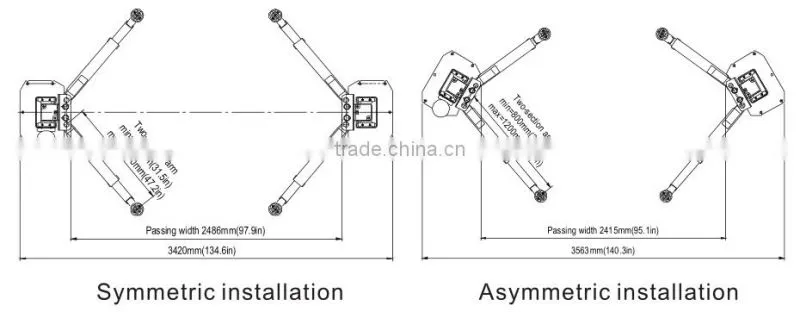

11. Symmetric and asymmetric installation types are optional

12. Passed 115% dynamic loading test and 150% static loading test.

13.CE cerificated.
