Cheap Polycarbonate sheet greenhouse for sweet pepper
-High quality standard, Chinese competitive price greenhouse manufacture
Outstanding Features of Plastic Polycarbonate sheet greenhouse
l The structure can be designed to readily accept hanging baskets, displays, booms, echo systems, and other needed equipment. This truss has also been designed for use with heat retention and shading systems, reducing winter heat loss and summer heat gain for maximizing energy efficiency
l Roof vents are optional in the Venlo design, whether single vents or double vents are installed is up to you. Each zone utilizes just two motors, increasing efficiency while decreasing maintenance. Complete design specifications and structural details are available

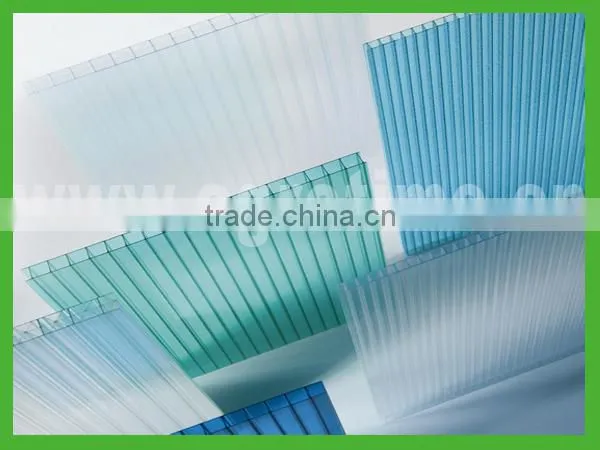

- /PC sheet glazing provides maximum light transmission
- Low Maintenance Structure
- Natural or fan ventilation available
- Standard and custom widths available
- Available in various heights to accommodate your needs
Greenhouse drawing of Venlo structure
Basic Information
Model |
CMA1080 |
Width |
8m*n |
Length |
4m*n |
Wall Height |
3.0m |
Apex Height |
5.0m |
Cladding |
PC Sheet |
Pipe Diameter |
φ32, 100*50 |
Greenhouse feature
Good heat retention, high intensity, easy assembly, energy saving, anti dew, strong impact resistance and long service life, etc
Structural Characteristics:
Venlo structure or sharp roof structure :
The frame works structure is assembled by prefabricated parts. All main parts are hot dipping galvanized after processing with zinc cover 275G/M2 in order to avoid any rust;
Span: 8m
Gutter:3.0m
Cover: different thickness polycarbonate panel, by special aluminum profiles together with sealed band
Ventilation: single roof vents or double roof vents, controlled by rack and pinion system
Door : Aluminum sliding doors
