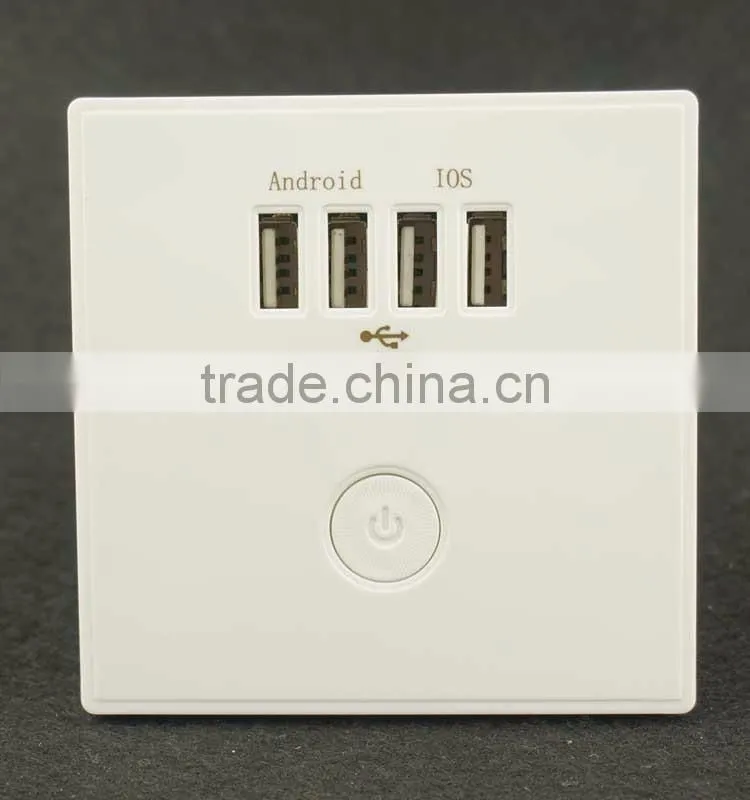

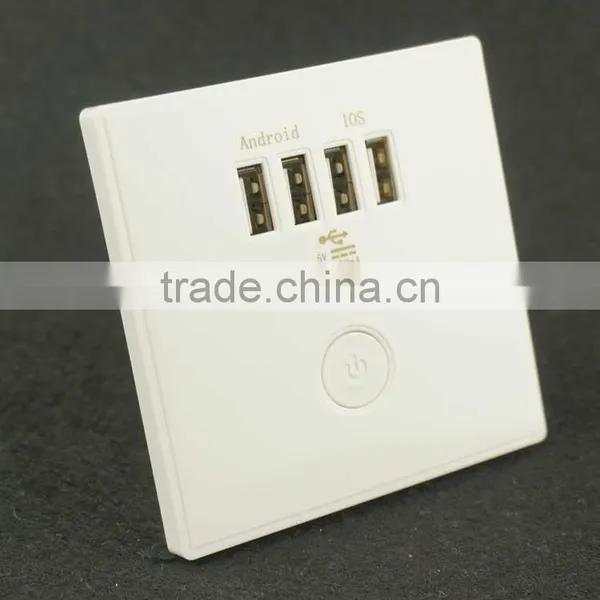

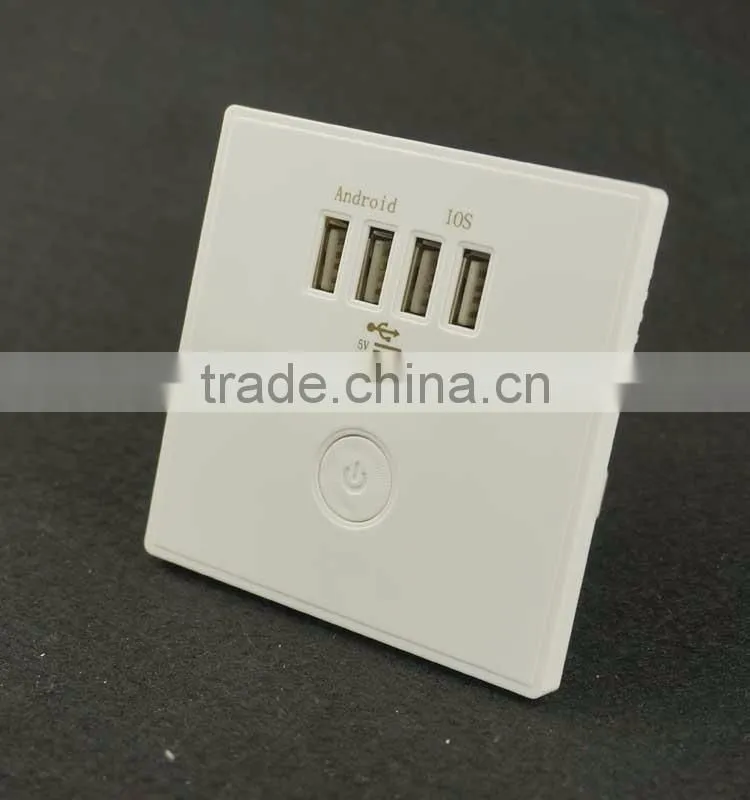

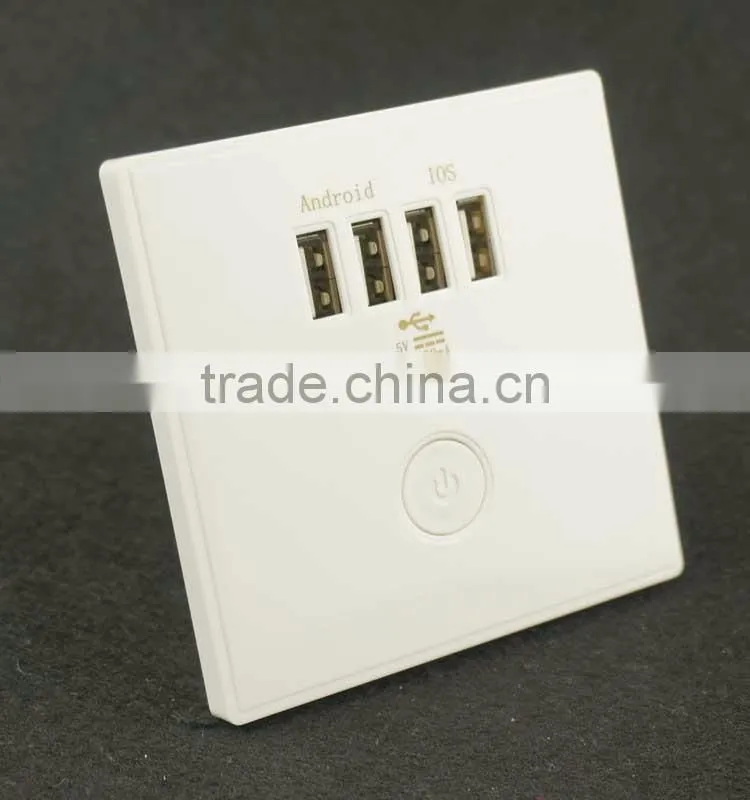

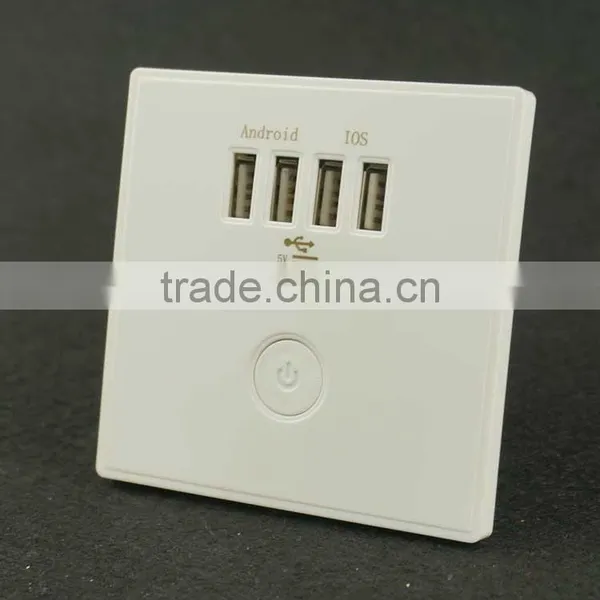

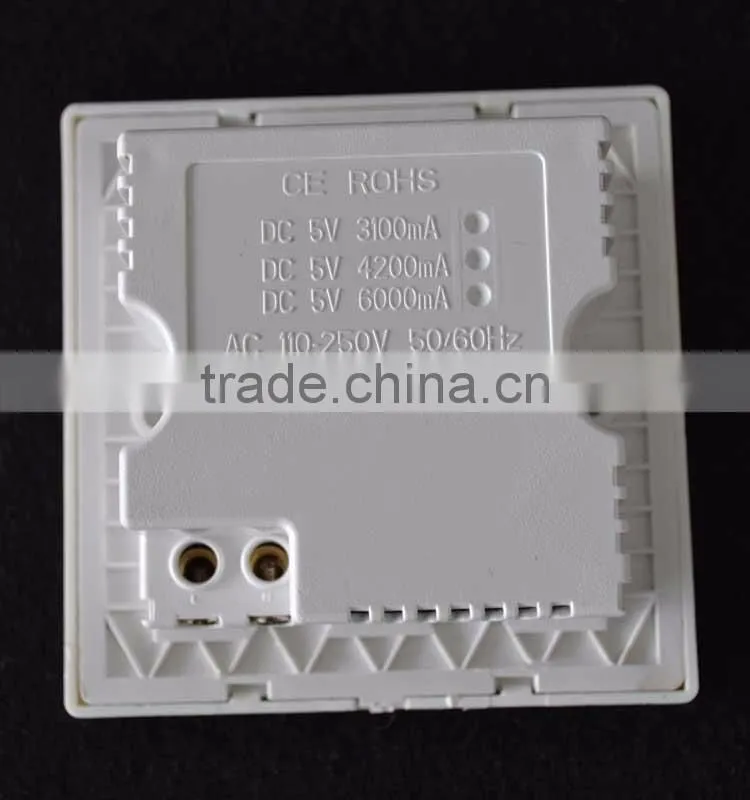

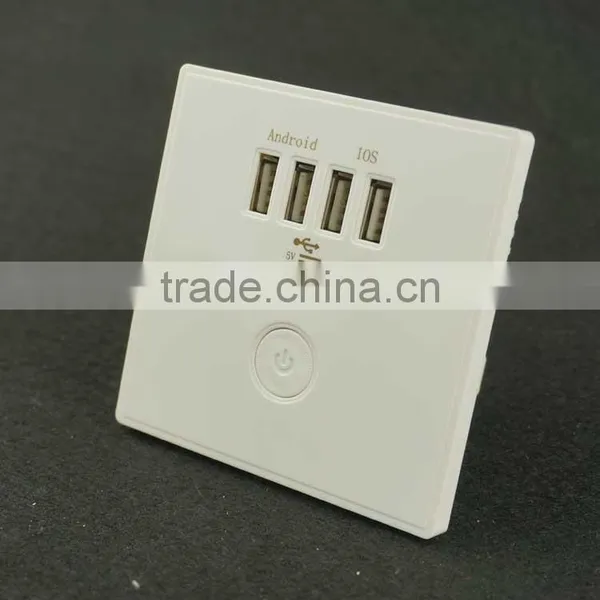

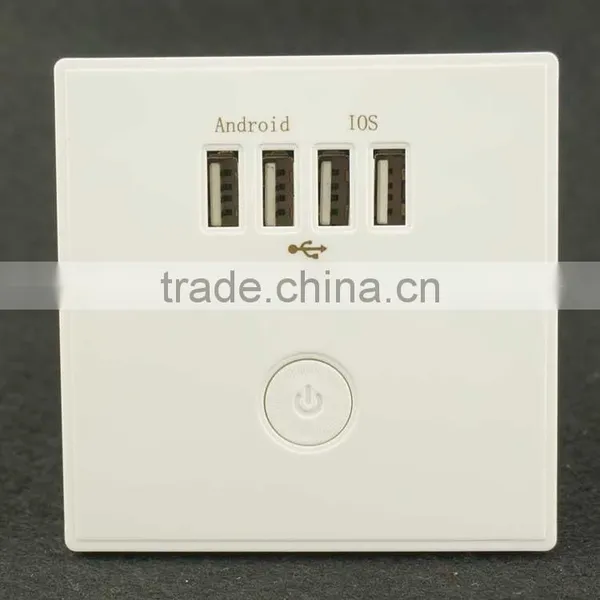

Best selling electrical outlet usb wall charge socket with turn/off switch
Specifacation:
| Item | Best selling electrical outlet usb wall charge socket with turn/off switch |
| Material | PC+ABS |

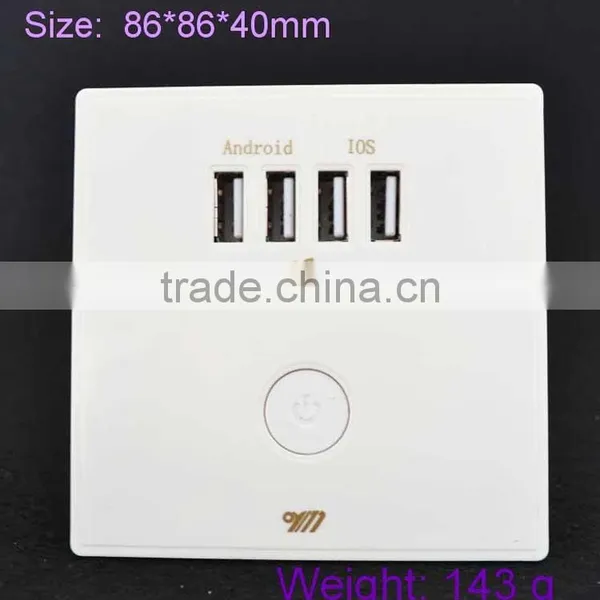

| Product Size | L86*W86*H40mm |
| Certificate | CE ROHS SAA |
| Color | White |
| Rated voltage | 110V-250V |
| Rated Current | 6000MA |
| Rated power | 6000W |
| Charger input | 110V-250V AC 50-60Hz 6A |
| USB output | 4 USB port output 5V /6.0A(MAX) |
| Operating temperature |
-15℃ ~ 40℃ |
| Mounting hole distance | 60mm |
| Net Weight | 143g |
| Gross Weight | 200g |
| Standard | ITS testing report/ASTA//TUV-MARK/CE |
| Packing quantity | 60 pcs /carton |
| Packing | color box |
| Packing size | L185*W155*H98mm |
| Carton size | L500*W330*H210mm |
| Gross Weight | 10.1KG/ctn |
INSTALLATION INSTRUCTIONS
Introduction
1. This product is a 10A250V wall receptacle with USB charging function. Charge most of your
portable devices directly from the USB wall socket without using the wall receptacle .
No adapter required. USB socket is suitable for charging most 5V/3.1A, 5V/4.8A, 5V/6.0A devices ,IOS, Android, Windows Phone .
Specifications
Dimension : 86*86*40mm
Mounting hole distance : 60mm
Color : White
Weight : 5V/3.1A /100g, 5V/4.8A /130g, 5V/6.0A /143g
Working Voltage : 13A ,110~220 V
Working Temperature : -15℃ to 40℃
USB Output : DC 5V/3.1A, 5V /4.8A, 5V /6.0A
Testing Standard : EN 55022:2010, EN 55024:2010, EN 61000-3-2:2006+A1:2009+A2:2009,
EN 61000-3-3:2008 , EN 60884-1:2002, EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
CAUTION
1. Use copper or copper clad wire only . Do not use it with aluminum wire .
2. To prevent severe shock or electrocution always turn the power OFF at the service panel
before working with wiring .
3. Do not install in wet locations or in a location where the receptacle can get splashed with liquid .
4. Indoor use only .
5. Designed for Residential / General-Purpose, All Smart Devices builds in USB Power supply.
6. This product is designed with a total charging capacity of (3.1, 4.8, 6.0) amps .
7. Drawing a combined current of greater than (3.1, 4.8, 6.0) from the two USB charging
ports will result in overheating and damage to the device .

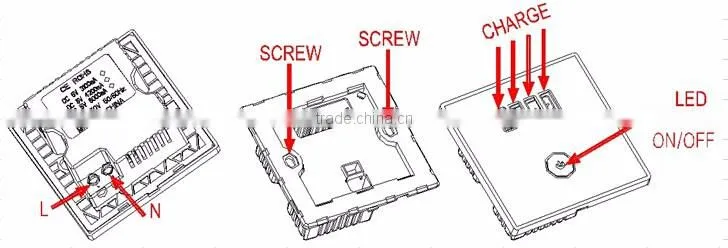

Wiring
Caution: To prevent severe shock or electrocution always turn the power OFF at the service panel befor working with wiring .
Stripping the insulation from the wire : Stripping the insulation from the wire about 0.4 inch .

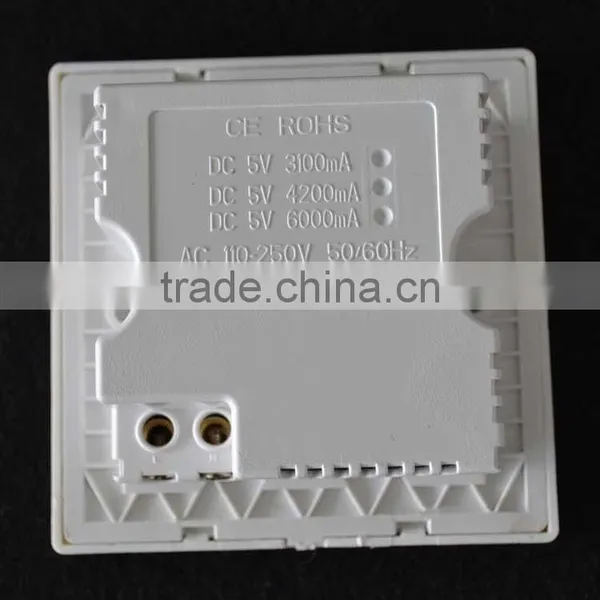

Connecting the Neutral and Live Wires:
1. Turn the power “OFF”.
2. Loosen both side screws using a flat screw-driver .
3. Insert neutral and live wire into the opening marked with N , L.
4. Tighten both side screws using the flat screw-drive.
