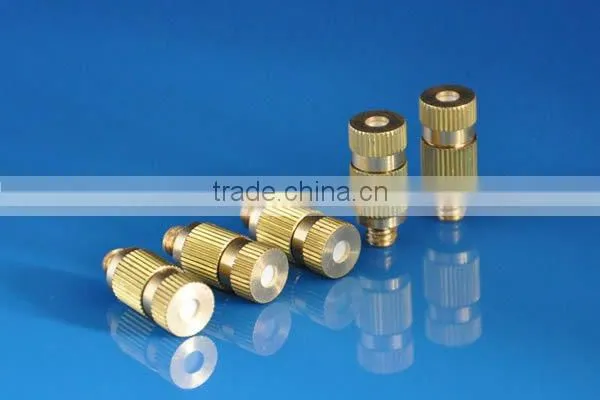

Extra Fine High Pressure No Drip Brass Mist Nozzle

Extra Fine High Pressure No Drip Brass Mist Nozzle thumbnail-1
Extra Fine High Pressure No Drip Brass Mist Nozzle photo-1
US$ 3 - 6 MOQ: 30 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Relab
Model Number:
brass fogging nozzle
Contact Supplier Request Quote Chat Now
RELAB Spraying & Purification Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Relab
Model Number brass fogging nozzle
Garden Water Gun Type Nozzles
Material Other, Metal, Brass body and SS insert
Metal Type Brass

Specifications

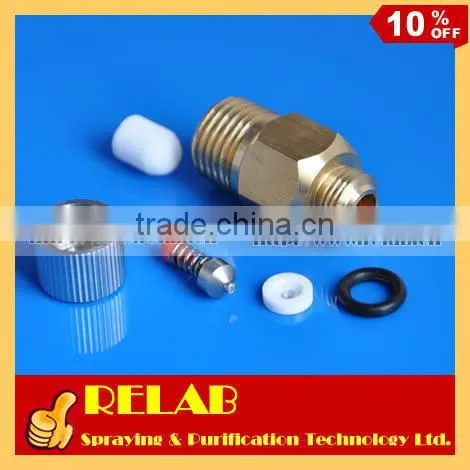

Brass body with SS insert; cleanable and dismantling; fine fogging mist.
Thread: Optional in 1/8 or 1/4 male BSPT

Fine Fogging Nozzle has a strong ability of filter and anti drip. It is a ideal fog nozzle to suit poorer water quality.

Material : Brass body and SS insert
Thread : 10/24 or 12/24 UNC
Orifice : 0.1(.004), 0.15(.006), 0.2(.008), 0.3(.012)
Pressure : 20-70bar/1000psi

Design Features:

  * Nozzle Structure: United constructions with an anti-drip device.
  * Spray Patterns: fine spray.
  * Spray angles: from 45 to 90 degree
  * Pressure Range: 20 to 700 bar (0.0125 to 0.24 L/min)

Part No. Body
Material		 Inlet Thread Orifice Dia.(mm) Working Pressure Flow rate Spray
Angle		 L1
(mm)		 L2
(mm)		 Weight
(g)
mm in bar psi LPM GPM
FG010 Brass/SS 10/24-UNC/2A 0.1mm 0.004" 20-70 300-1000 0.013-0.02 0.003-0.005 45-55 4.8 24 8
FG015 Brass/SS 10/24-UNC/2A 0.15mm 0.006" 10-70 150-1000 0.023-0.05 0.006-0.013 50-65 4.8 24 8
FG020 Brass/SS 10/24-UNC/2A 0.2mm 0.008" 10-70 150-1000 0.028-0.07 0.007-0.018 55-70 4.8 24 8
FG030 Brass/SS 10/24-UNC/2A 0.3mm 0.012" 4-70 60-1000 0.045-0.093 0.012-0.026 65-75 4.8 24 8
FG040 Brass/SS 10/24-UNC/2A 0.4mm 0.016" 4-70 60-1000 0.07-0.150 0.018-0.040 80-85 4.8 24 8
FG050 Brass/SS 10/24-UNC/2A 0.5mm 0.020" 4-70 60-1000 0.083-0.165 0.021-0.043 80-90 4.8 42 8
