Low cost galvanized pipes vegetable greenhouse with irrigation system for agriculture

Name: Low cost galvanized pipes vegetable greenhouse with irrigation system for agriculture
Brand: Huifa
Price: USD $4 - 10 / Square Meter

FOB Price

USD $4 - $10 / Square Meter

200 Square Meters(Min.Order)

Supply Ability 50000 Square Meter / Square Meters per Month
Port SHANGHAI/QINGDAO
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Size:	Large	Type:	Single-Span Agricultural Greenhouses	Cover Material:	Film
Material:	PE	Layer:	Single	Model Number:	SG006-009
Place of Origin:	Henan, China	Brand Name:	Huifa

Product Description

Low cost galvanized pipes vegetable greenhouse with irrigation system for agriculture

Vegetable greenhouse is applicated to the cultivation of vegetables and other economic crops,effectively prevent natural disasters and improve unit area output and income.
With advantage of easy assembly,lower investment and high output .

And it is composed by hot galvanized pipe with single layer fim for the covering material. The frame structure is simple, cheap cost and easy to install. According to the climatic condition, it usually equiped with sidewall manual roll up units to achieve good ventilation and cooling system .

Characteristic of single-span greenhouse

1. High quality steel structure and long service life: main steel material is all hot dip galvanized with excellent anti-corrosion effectiveness.

2. Prefabricated structure: All the parts can be easily assembled on the spot with joining parts and bolts and nuts, without any welding points to damage the zinc coating on the material, which guarantee the optimal performance of anti-corrosion.

3. Extruding film has the function of dust-proof and anti-dripping; UV block treatment

4. Side ventilation (optional): Natural Ventilation on two sides, manually Controlled.Insect net is available.

5. Characters: Easy Frame! Easy Assembly & Move! Lower investment with higher output!

Detailed Images

Modle	Width	Length	Distance between 2 archs	Shoulder height	Top height	Pipe Dia
SG008	8m	customize	0.8-1.0m	1.3m	3-3.3m	25/32/48/62mm for choice
SG007	7m	customize	0.8-1.0m	1.3m	2.7-3m
SG006	6m	customize	0.8-1.0m	1.3m	2.5m
SG009	9m	customize	0.8-1.0m	1.3m	2.5m
Option Item	Side ventilitaion with roll up machine
	Heating system /Cooling system/ Shading system
	Drip /Micro irrigation system

Wind load	0.35KN/m^2
Snow load	0.25KN/m^2
Plants hanging load	0.15KN/m^2
Rainful	140mm/h
Covering film	80-200micro

Plastic film

Material: PE+EVA
Characteric: Anti-dew and dustproof , Anti-dripping,anti-fog,anti-aging
Thickness:80/ 100/120/130/140/150/200micro
Light transmission:>89%
Diffusion:53%
Temperature range: -40 to 60C
UV transmission:300-390%
Life time:2-3years

Frame material:

1.The main framework designed to meet the "GB50017- 2003Steel Design Code";
2.The steel material meets the "GB700-88carbon steel";
3.Hot dip galvanizing layer steel products technical requirements hot galvanization ,smooth surface,zinc coating thinkness>70um

Ventilation

Sides Vent: The greenhouse 2 sides can be roll up & down by manual roll up machine, 40mesh insect net will be offered for vents

Top vent :customized

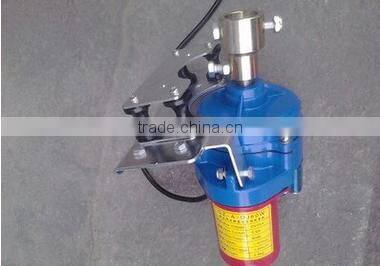

Electrodynamic type film-rolling system.

Replacing traditional manual roll-up unit to reach high speed automation in revolving & releasing films and greenhouse environment, it is the new generation of greenhouse ventilation and temperature regulation facilities. Portability, output torque, output lock, wide range and precise adjustment, waterproof, dew-proof and power-saving are the key characteristics , which is the best choice for modern daylight greenhouse applied in different climates.

Our Service

Pre-Sales Service

1.OEM&ODM is welcome.
2.Customization according to your need .
3. Overseas technical support is available.
4.Necessary test and certification can be obtained

as your request.

After-Sales Service

1.We provide installation and spare parts at any time;
2.The whole machine is 1 year guarantee.
3.Engineer overseas service available,to guide installation, testing, training customer’s worker;
4.English version use manual, video, spare parts deliver together with goods;

Packing & Delivery

Stocks will be delivered within 7days ;
Customized will be delivered within 7-15days ;
Large quantities delivery time base on the quantity you order

Our Company

Zhengzhou Huifa Machinery Co.Ltd is located in central vincial capital Zhengzhou,and covering the area of 11000 square meters.After 8 years of development,Huifa has grown from a small factory to a competitive factory in the field of greenhouse researching and production.

We based on the spirit of "reputation first ,customer first"principle,adhere steady and long-term operation development,at the same time,by virtue of strong talent resources,strict production management to provide you with good quality ,competitive price greenhouse products.

Our greenhouse has been exported to :
America: America,Canada,Mexico,Guatemala,Peru,Brazil,Chile,Bolivia,Paraguay.etc,.
Africa: Zimbabwe,Zambia,Angola,Mozambique,Botswana,Kenya,Tanzania,Senegal.etc.
Asia:Philippines,Thailand,Indonesia,India,Turkey,Uzbekistan,Yemen.etc,.
Oceania:Australia,French Polynesia
Europe:Norway,Moldova,Bulgaria,Serbia,Portugal

FAQ

1.Can you give me a preferential price?
It depends on the quantity of your order.More quantity,better price.

2.How can you ensure the legality and security during transaction?
We are a member of Alibaba Trade Assurance which is safeguarding buyer's payment to supplier to ensusre supplier fullfill their abligations regarding delivery and product quality.

3.How about packaging and shipping?
The goods are loaded into container car in the factory .Usually the port is Qingdao/Shanghai.

4.How to ensure the quality of the products ?
Before delivery,our inspection department will examine and test the products thoroughly and carefully. Necessary test and certification can be obtained as your request.

5.How do I install the structure or is your company coming to install it?
It is easy to install,We send install video together with greenhouse in container.Or welcome visiting our factory.We will guide you how to install it in our factory.

6.How many people and days will take to install greenhouse in one 20ft container?
6person/set,2-3 days / set.
