Internal Mixing Air Atomizing Misting Water Spray Nozzle
Design Features:
1. Inner structural design makes liquid and air mix fine, and then sprays fine. Normally, we could increase the air pressure or reduce the liquid pressure, so that we could make the nozzles spray more fine droplets (about 30micron).
2. Keeping liquid pressure and air pressure unchanged, as Adjustable air atomizing nozzle could adjust liquid flow rate, and then it also could spray according to your requirement.

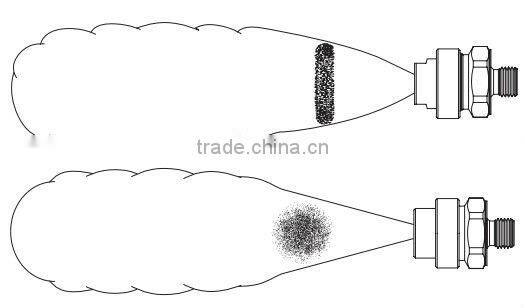

3. Every spraying device consists of air cap and liquid cap. Spray pattern has flat fan, round, and wide- angle round spray. Nozzles also has widely flow rate. Inlet thread has different size which could be suitable for many pipe systems.
4. Air atomizing nozzle structure has pressure type, siphon type and gravity type.
Note: when you use air atomizing nozzle, air pressure is a should, but liquid pressure is not demanded. You could use pressure atomizing type with liquid pressure, while could use siphon atomizing type or gravity atomizing type.
5. Air atomizing device has two mixed type: inner mixed type and external mixed type. Inner mixed type could spray very fine, and it is suitable to use under many conditions. While, it is a good choose to use external mixed type to spray viscosity liquid.
1. Retainer Ring 2. Air Cap 3.Liquid Cap 4. Spray Set-up 5. Liquid Cap Gasket
6. Nozzle Body 7. Back Seal Gasket 8. Shut-off Needle Assembly(Spray Set-up

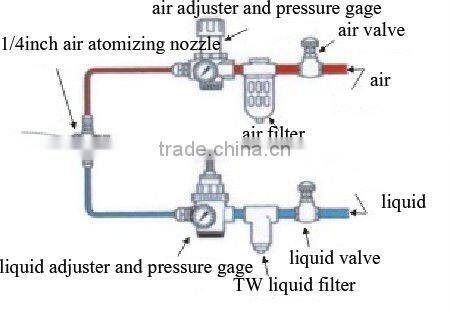

Pressure device
Application
1. Moistening and derusting
2. Air moistening
3. Chemical treatment
4. Spray chemical
5. Spray liquid
6. Humidify tobacco leaf
7. Tablets coating
8. Cool gas
9. Sterilization
10. Cool compenert
11. Spray candle on fruit
12. Ceramic Tile - Glazed
13. Spray lubricant
